s30nmdl2sm-REV0808 Model S30 Non-Metallic Page 34
PULSE OUTPUT KIT OPTION
This pump can be fi tted with a Pulse Output Kit. This converts the mechanical
strokes of the pump to an electrical signal which interfaces with the Stroke Counter/
Batch Controller or user control devices such as a PLC.
The Pulse Output Kits mount directly onto the Muffl er Cap on the Air Distribution
Valve Assembly or onto the air valve and senses each stroke of the main spool.
Consult the factory for further information and availability.

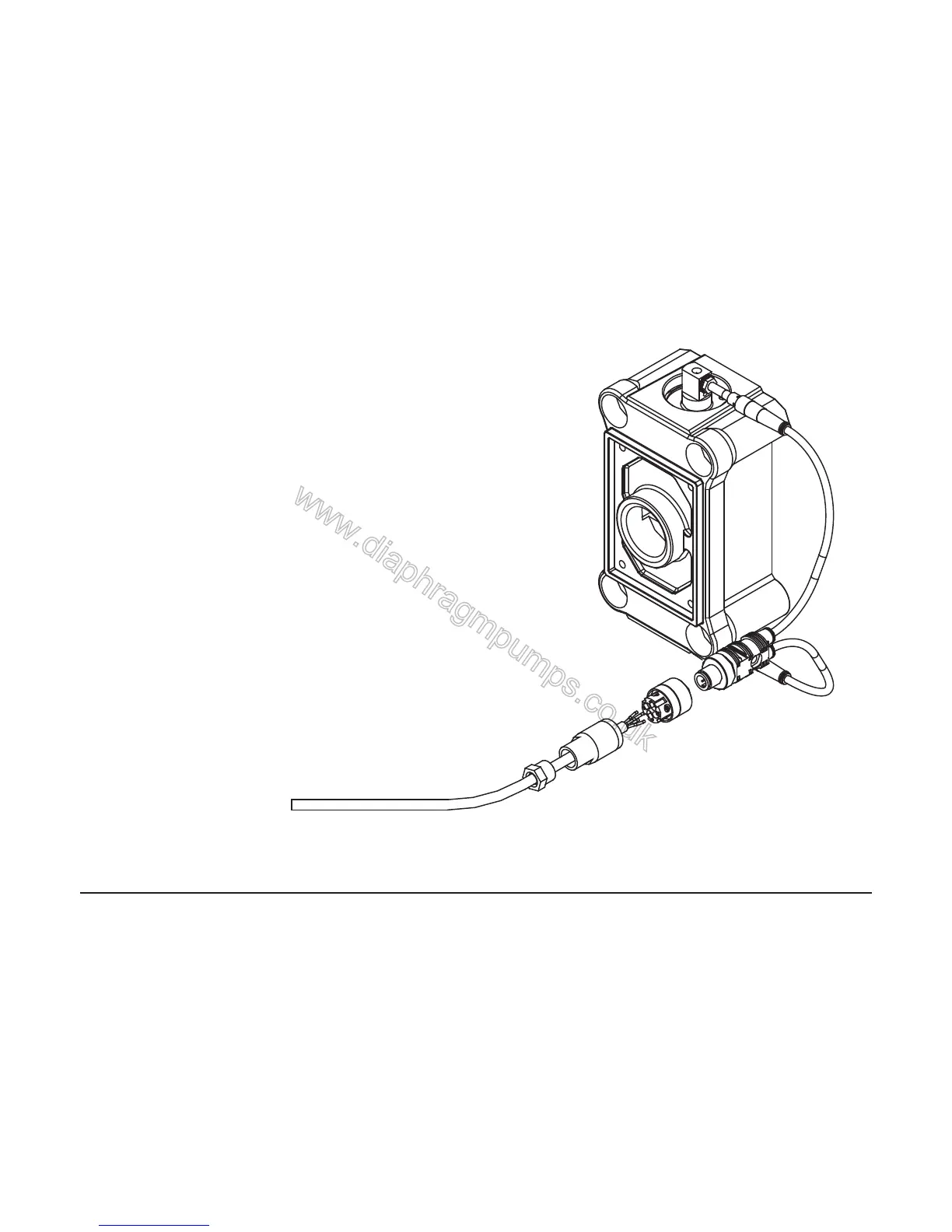

Pulse Output Kit Drawing
Pulse Output Kits
475-244-001 10-30 VDC
475-244-002 110/220 VAC
475-244-003 10-30VDC, 110VAC and 220 VAC
