s30nmdl2sm-REV0808
Model S30 Non-Metallic Page 25
PILO
T
V
AL
VE ASSEMBL
Y P
ARTS LIST
ITEM
P
ART NUMBER
DESCRIPTION
QTY
2
095-089-000
Pilot
V
alve Assembly
1
2-A
095-081-551
Body
, Pilot V
alve
1
2-B
135-033-506
Bushing
2
2-C
675-055-115
Ring, Retaining
2
2-D
770-049-175
Spacer
5
2-E
917-001-374
Wiper
6
2-F
775-033-506
Spool, Pilot
1

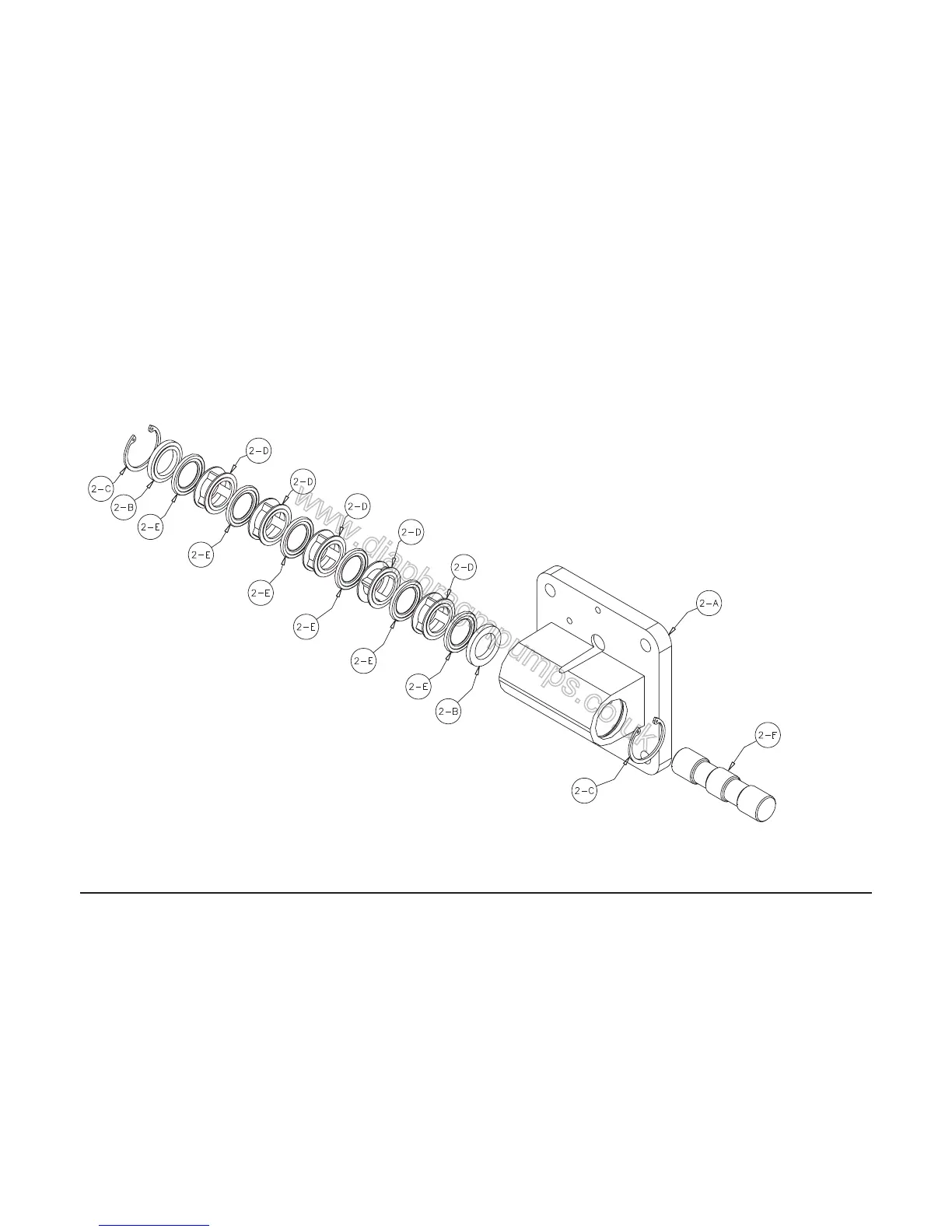

Pilot
V
alve Assembly Dra
wing
26
28
Table of Contents
Table of Contents
1
Engineering Data and Temperature Limitations
3
Explanation of Pump Nomenclature
4
Performance Curve, Model S30 Non-Metallic Design Level 2
5
Dimensions: S30 Non-Metallic
6
Metric Dimensions: S30 Non-Metallic
7
Dimensions: S30 Non-Metallic with Spill Containment
8
Metric Dimensions: S30 Non-Metallic with Spill Containment
9
Principle of Pump Operation
10
Installation and Start-Up
10
Air Supply
10
Air Valve Lubrication
10
Air Line Moisture
10
Air Inlet and Priming
10
Between Uses
10
Installation Guide
11
Important Safety Information
12
Material Codes
13
Troubleshooting
14
Warranty
14
Composite Repair Parts Drawing
15
Overlay Option Drawing
15
Composite Repair Parts List
16
Spill Containment Option for Virgin PTFE Equipped Pumps
17
Spill Containment Repair Parts List
17
Spill Containment Concept
18
Spill Containment Option Diaphragm Servicing
18
Filling Spill Containment Chambers with Liquid
18
Spill Containment Option for TPE Equipped Pumps
19
Spill Containment Repair Parts List
19
Spill Containment Concept with TPE Diaphragms
20
Spill Containment Option with TPE Diaphragm
20
Air Distribution Valve Assembly Drawing
21
Main Air Valve Assembly Parts List
21
Air Distribution Valve Servicing
22
Air Distribution Valve with Stroke Indicator Options
23
Air Distribution Valve with Stroke Indicator Parts List
23
Air Distribution Valve with Stroke Indicator Servicing
24
Solenoid Shifted Air Valve Drawing
25
Solenoid Shifted Air Valve Parts List
25
Solenoid Shifted Air Distribution Valve Option
26
Pilot Valve Assembly Drawing
27
Pilot Valve Assembly Parts List
27
Pilot Valve Servicing
28
Diaphragm Service Drawing, Non-Overlay
29
Diaphragm Service Drawing, with Overlay
29
Diaphragm Servicing
30
Overlay Diaphragm Service
30
Pumping Hazardous Liquids
31
Converting the Pump for Piping the Exhaust Air
31
Exhaust Conversion Drawing
31
Converted Exhaust Illustration
31
Modular Check Valve Servicing
32
Modular Check Valve Drawing
32
Dual Port Option Drawing
33
Dual Porting Options
34
Dual Porting of both Suction and Discharge Ends of the Pump
34
Single Porting of the Suction and Dual Porting of the Pump Discharge
34
Dual Porting of the Suction and Single Porting of the Pump Discharge
34
Leak Detection Options Drawing
35
Electronic Leak Detector Installation
35
Mechanical Leak Detector Installation
35
Pulse Output Kit Drawing
36
Pulse Output Kit Option
36
Optional Muffl er Confi Gurations, Drawing
37
CE Declaration of Conformity
38
