Sandstrom S40LDIB10 User Manual

GB-12
Preparation Connections Initial Setup Using the Features Using the Features
via USB port
Hints and Tips, Specification
and Safety Warnings

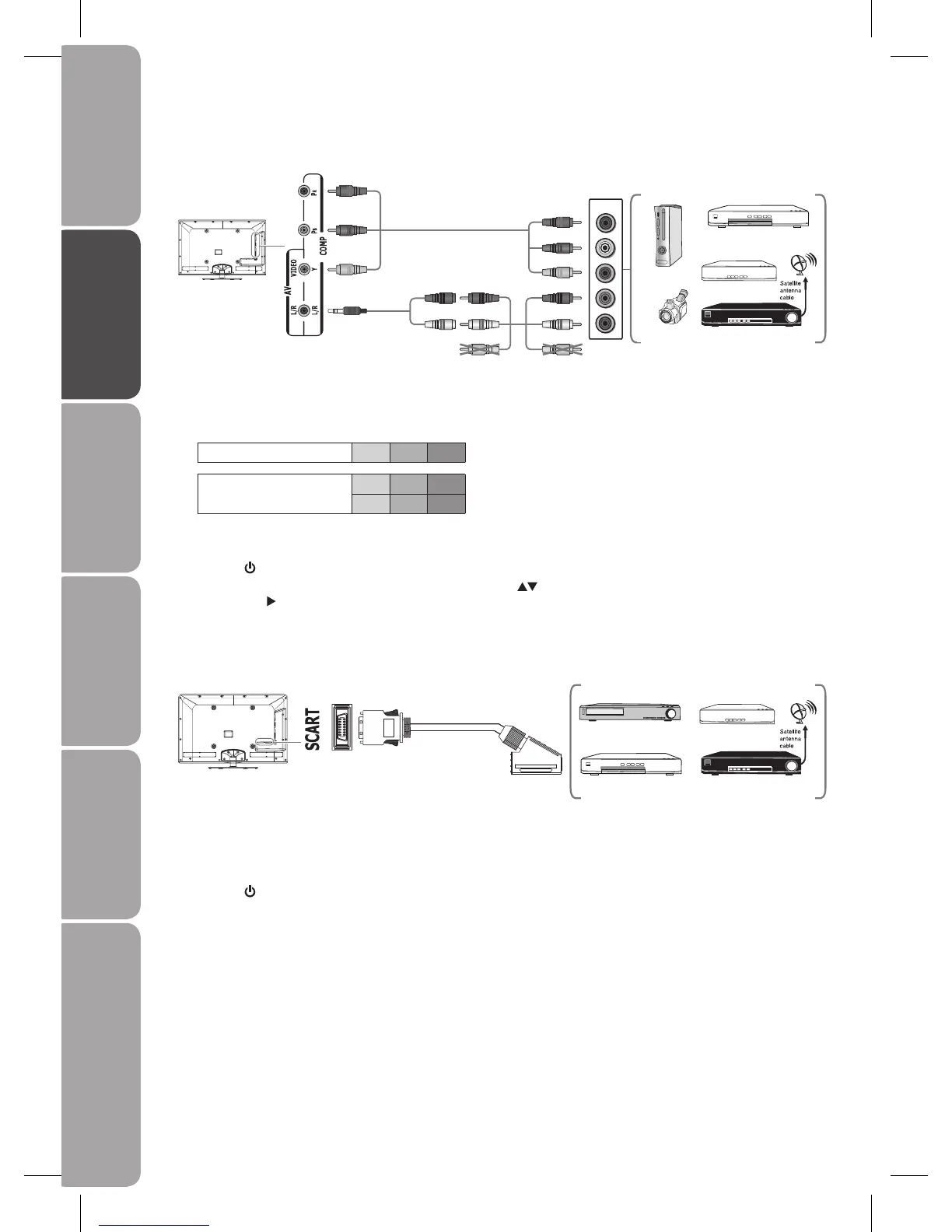

Connecting an AV Device with Component (YPbPr) Cable
Use a component cable to connect the TV’s YPbPr input sockets to an external AV device’s component output sockets. 1.
Use the supplied earphone to audio cable and an AV cable to connect the TV’s AUDIO(L/R) input socket to the external AV 2.
device’s component audio sockets. (Audio Left = white, and Audio Right = red)
Component port on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y Cb Cr
Plug the connected devices into the mains socket before switching on the 3. I/O POWER ON/OFF switch at the bottom of the
TV.
Press the4.
button to turn on your TV.
Press the 5. Source button to display the input source list. Use the
buttons to select Component and then press the OK
button or the
button to confirm.
Satellite Receiver
COMMON INTERFACE
ANT 75 Ω
5V 50mA/Output
AV Cable (not included)
Component Cable (not included)
Earphone to
Audio Cable
(included)
Video Camera
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
Yellow (VIDEO)Yellow (VIDEO)
Red (R)
Y
Y
Pb/Cb
Pb/Cb
Pr/Cr
Pr/Cr
Red (R) Red (R)
White (L) White (L) White (L)
Pb
Pr
COMPONENT
OUT
L
Y
R
Connecting an AV Device with SCART Adapter Cable
Use the supplied SCART adapter cable to connect the TV’s SCART input socket to an external AV device’s SCART output socket. 1.
Plug the connected devices into the mains socket before switching on the 2. I/O POWER ON/OFF switch at the bottom of the
TV.
Press the3.
button to turn on your TV.
The TV will change the input source to 4. SCART automatically once the AV device is switched on.
Satellite Receiver
VCR
DVD Player / Recorder
Set-top Box
SCART Adapter Cable
(included)
