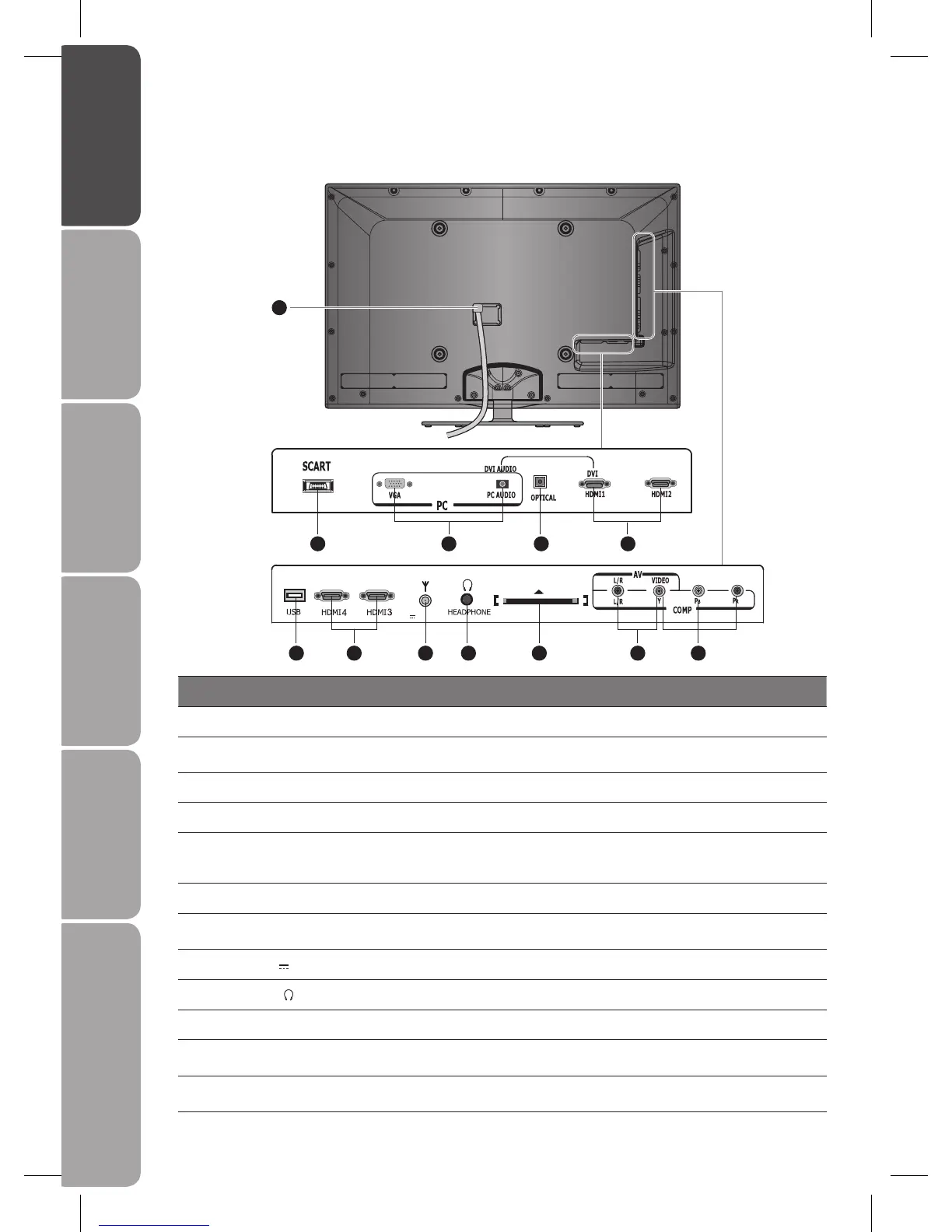

Rear View and Sockets
Item Description
1 MAINS CABLE Connect the mains cable to the mains socket.
2 SCART
Connect to a VCR, DVD Player, or other AV devices with SCART output socket by using the
SCART adapter cable provided.
3 VGA / PC AUDIO Connect to a computer or other devices with a VGA interface.
4 OPTICAL Connect to an external digital audio device.
5 HDMI1 / 2 / 3 / 4
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all digital audio/
video interface between this TV and any HDMI-device, such as a set-top box, blu-ray disc
player, and AV receiver.
DVI (HDMI1) Connect to a computer or other devices with a DVI interface.
6 USB port
Allows the insertion of a USB storage device to play video, audio, photo and text files by
using the USB extension cable provided (DMP Mode).
7 ANT 75 Ω 5V
50mA/Output Connect to the aerial socket on the wall with the RF coaxial cable.
8 HEADPHONE
Connect earphones for private listening.
9 COMMON INTERFACE Allows the insertion of a Common Access Module. (Refer to page 21 for details.)
10 VIDEO / AUDIO (L/R)
Connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices by using the earphone to audio cable provided.
11 Y, PB, PR
Connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
