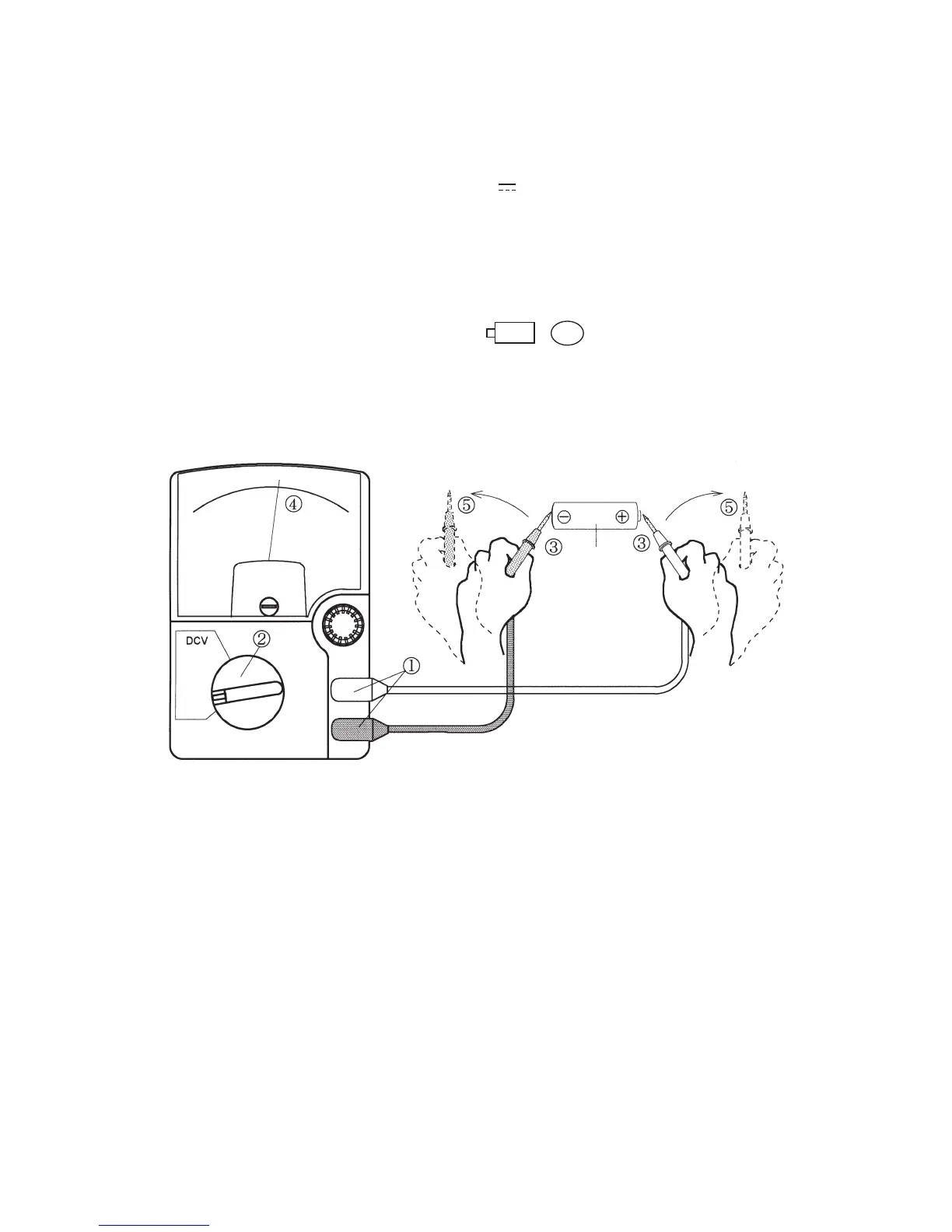

 3Measurement procedure
Connect the black plug of the test lead to the input
terminal and the red plug to the +input terminal.
Set the range selector knob to an appropriate DCV range.
Apply the black test pin to the negative potential side of the
circuit to measure and the red test pin to the positive potential
side.
Read the move of the pointer by V.A scale.
After measurement, remove the red and black test pins from
the circuit measured.


