Note The polarity of + and − turns revers to that of the test leads
when measurement is done in range.
Note Be sure to use the same rated fuse. In case a fuse other than
the same rated oneseeSPECIFI CATIONS is used, error
in indication occurs and/or circuit protection is made unble.
Note Operating voltage of range for this tester is 3 V and,
accordingly, operator can make lighting test of LED. 10
range is optimum for the test.
Caution If the pointer fails to swing up to 0 even when the 0
adjuster is turned clokwise fully, replace the internal
battery with a fresh one.

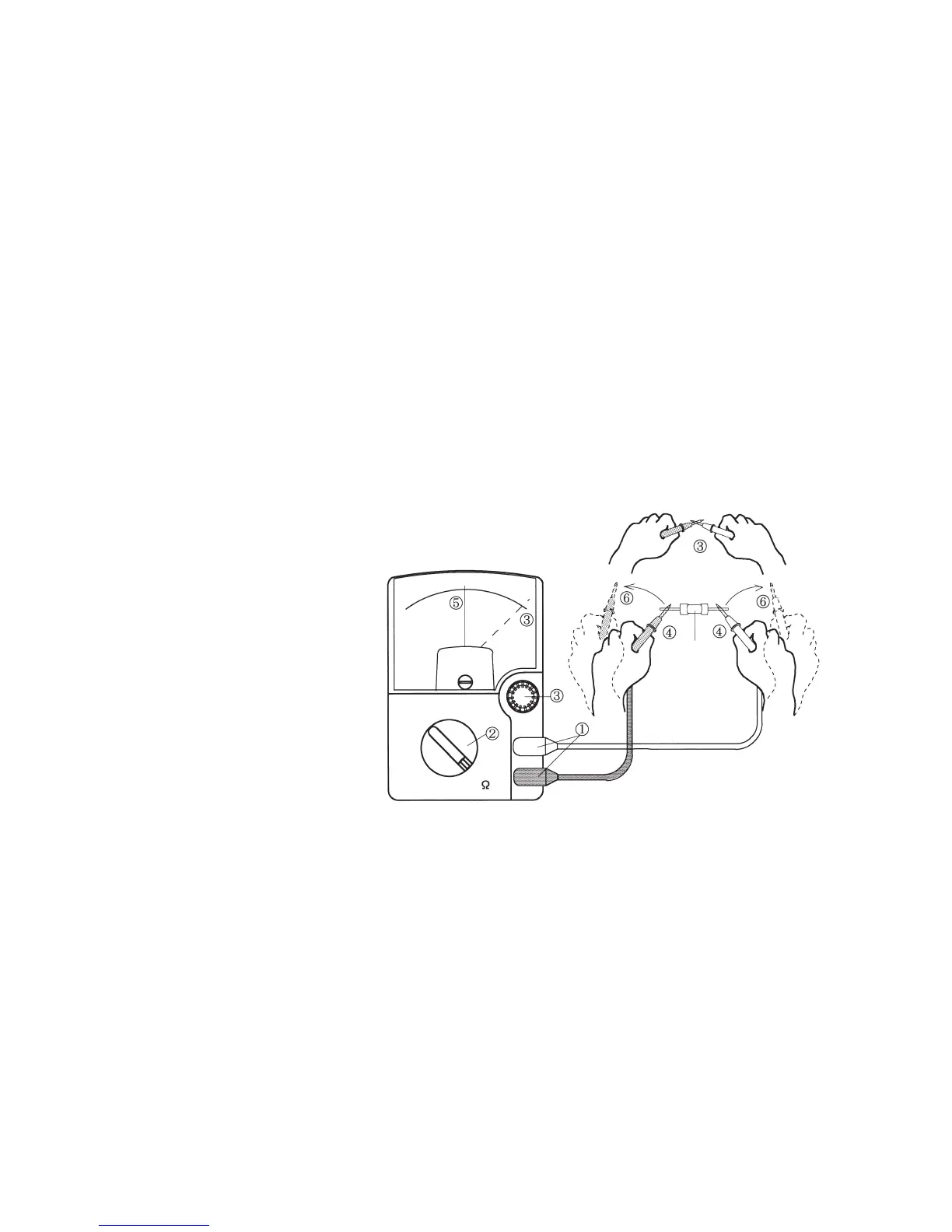

Resistor
