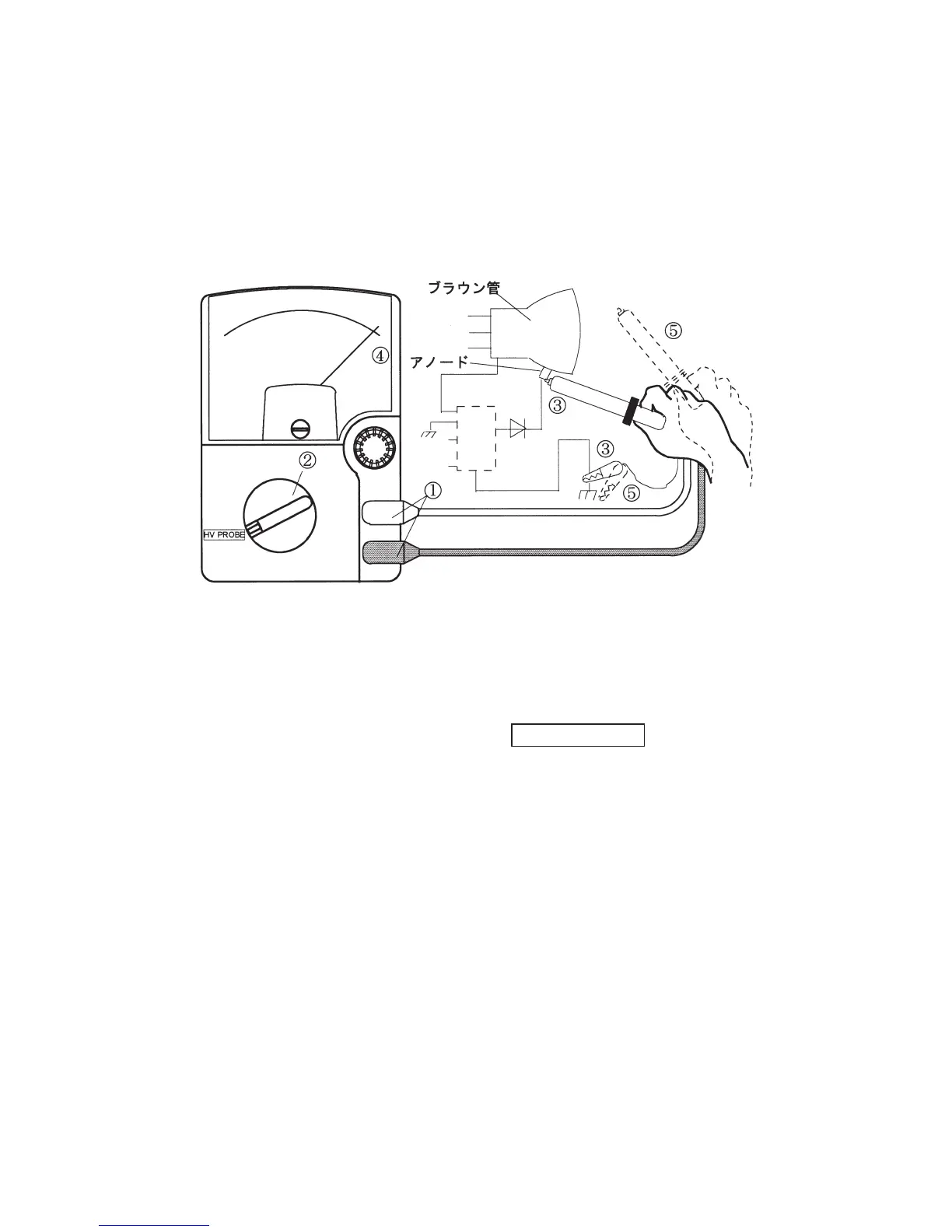

3）Measurement procedure
①Connect the black plug of the HV Probe to the −input
terminal and the red plug to the +input terminal.
②Set the range selector knob to HV PROBE range.
③First, connect the clip（black）of the probe to the earth line
（−）in the circuit to be measured, and then apply the
measuring pin on the probe body to your measuring point.
④Read the move of the pointer by V・A scale, measured value
in terms of kV.
⑤After measurement, remove the measuring pin from the
measured circuit, and then remove the clip.
