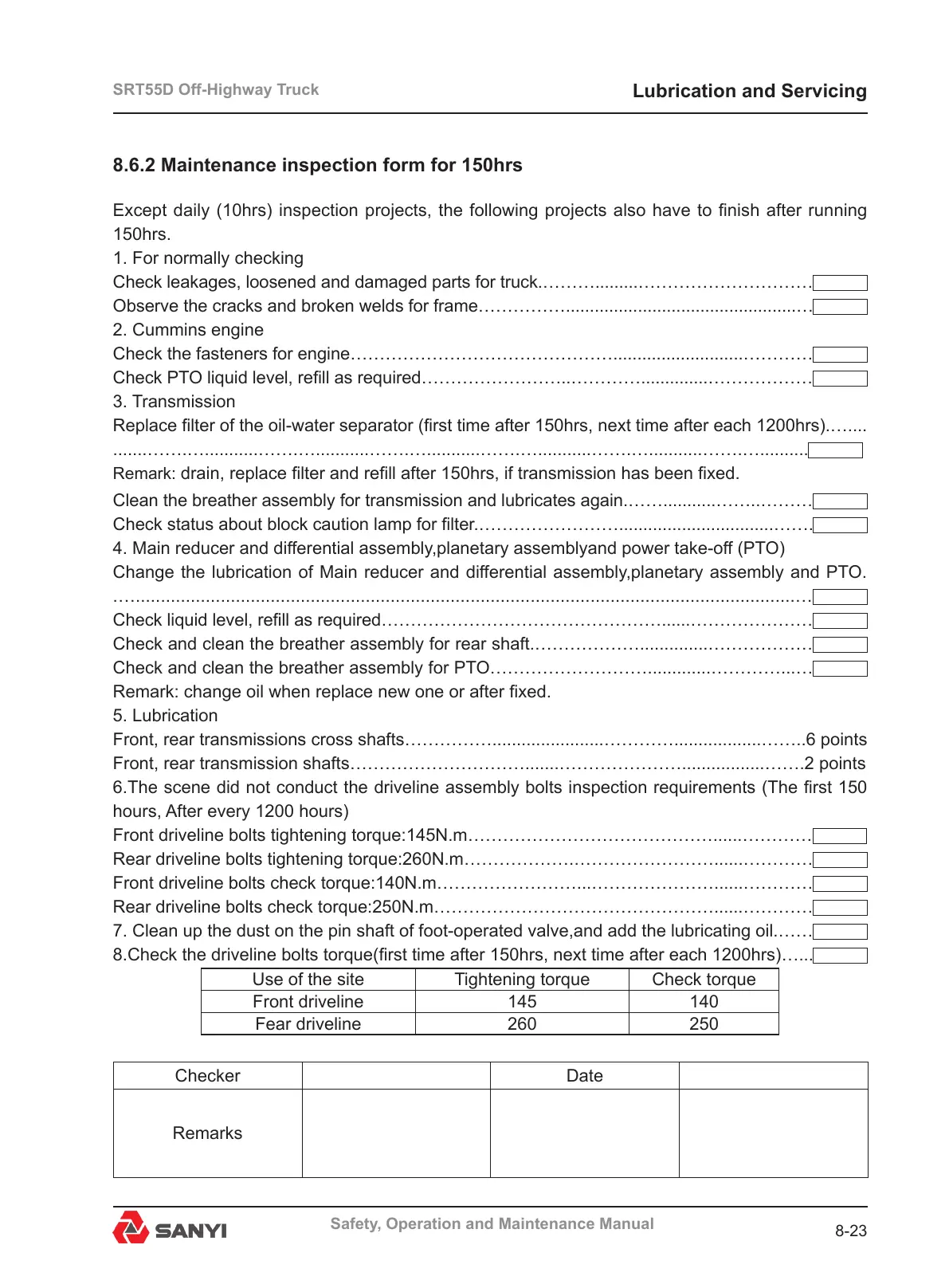

8.6.2 Maintenance inspection form for 150hrs
Except daily (10hrs) inspection projects, the following projects also have to nish after running
150hrs.
1. For normally checking
Check leakages, loosened and damaged parts for truck.……….........…………………………
Observe the cracks and broken welds for frame……………................................................…
2. Cummins engine
Check the fasteners for engine………………………………………...........................…………
Check PTO liquid level, rell as required……………………..…………..............………………
3. Transmission
Replace lter of the oil-water separator (rst time after 150hrs, next time after each 1200hrs).…....
.......…….…...........…….…...........…….…...........…….…...........…….…...........…….…..........
Remark:
drain, replace lter and rell after 150hrs, if transmission has been xed.
Clean the breather assembly for transmission and lubricates again.……...........……..………
Check status about block caution lamp for lter.……………………................................…….
4. Main reducer and differential assembly,planetary assemblyand power take-off (PTO)
Change the lubrication of Main reducer and differential assembly,planetary assembly and PTO.
.…....................................................................................................................................…
Check liquid level, rell as required…………………………………………......…………………
Check and clean the breather assembly for rear shaft.………………..............………………
Check and clean the breather assembly for PTO……………………….............…………...…
Remark: change oil when replace new one or after xed.
5. Lubrication
Front, rear transmissions cross shafts…………….......................…………..................……..6 points
Front, rear transmission shafts………………………….......………………….................…….2 points
6.The scene did not conduct the driveline assembly bolts inspection requirements (The rst 150
hours, After every 1200 hours)
Front driveline bolts tightening torque:145N.m……………………………………......…………
Rear driveline bolts tightening torque:260N.m……………….……………………......…………
Front driveline bolts check torque:140N.m……………………...…………………......…………
Rear driveline bolts check torque:250N.m…………………………………………......…………
7. Clean up the dust on the pin shaft of foot-operated valve,and add the lubricating oil.……
8.Check the driveline bolts torque(rst time after 150hrs, next time after each 1200hrs)…...
Use of the site Tightening torque Check torque
Front driveline 145 140
Fear driveline 260 250
Checker Date
Remarks
