Safety
Safety, Operation and Maintenance Manual
2-1
SRT55D Off-Highway Truck
2 SAFETY
2.1 Safety Labels
The following warning signs and safety are used on this machine.
●
Be sure that you fully understand the correct position and content of labels.
●
To ensure that the content of labels can be read properly, be sure the they are in the correct
place and always keep them clean. When cleaning them, do not use organic solvents or
gasoline. These may cause the labels to peel off.
●
There are also other labels in addition to the warning signs and safety labels. Handle those
labels in the same way.
●
If labels are damaged, lost, or cannot be read properly, replace them with new ones.
2.1.1 Position for attaching safety labels

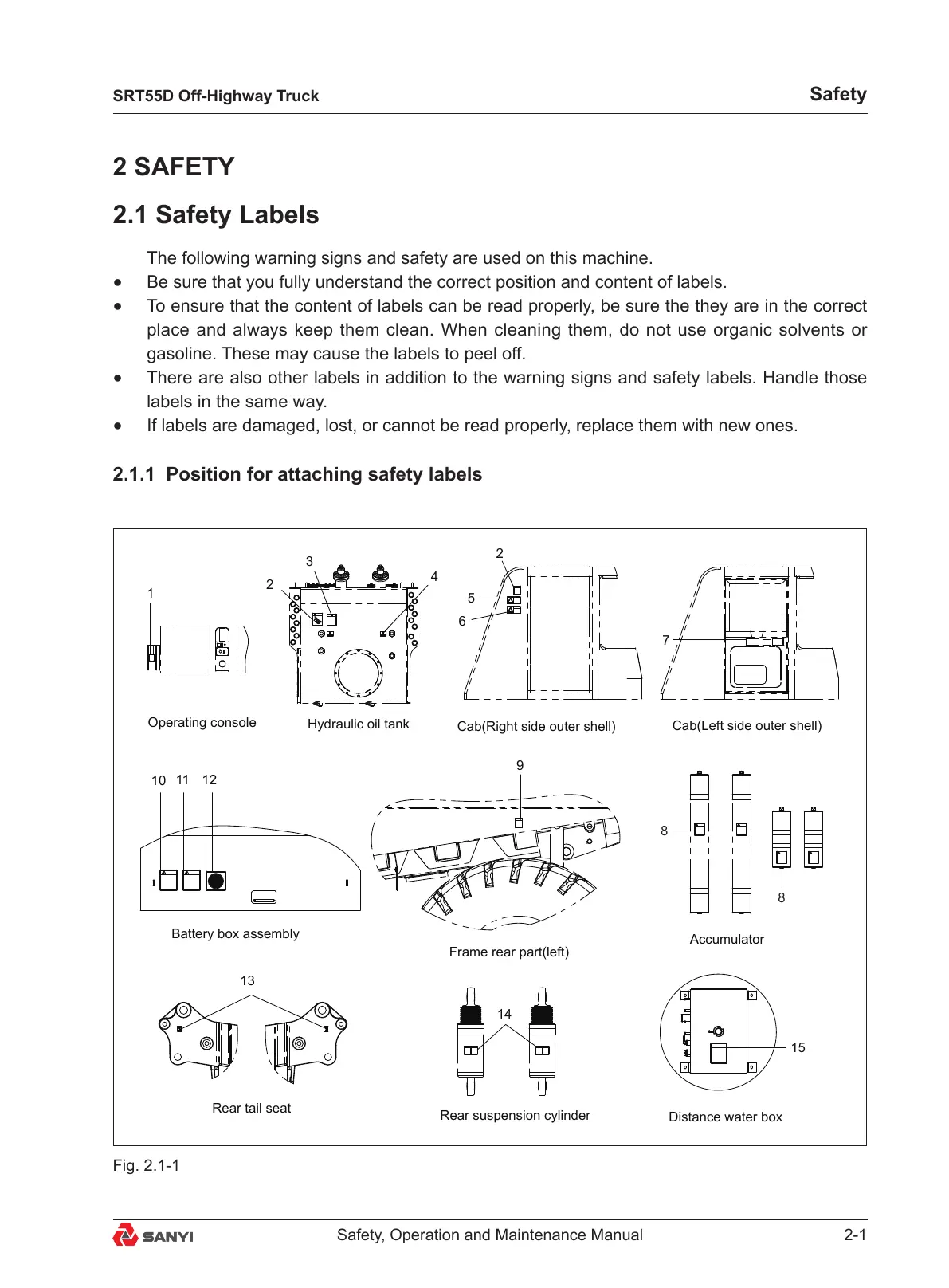

Fig. 2.1-1
12
1
3
2
2
A A
11
Cab(Left side outer shell)
Cab(Right side outer shell)
Accumulator
Hydraulic oil tank
Operating console
Rear tail seat
Rear suspension cylinder
4
7
6
5
8
8
Battery box assembly
9
10
13
14
Frame rear part(left)
Distance water box
15
