SRT55D Off-Highway Truck
3-12
Safety, Operation and Maintenance Manual
Controls and Operating
1
2

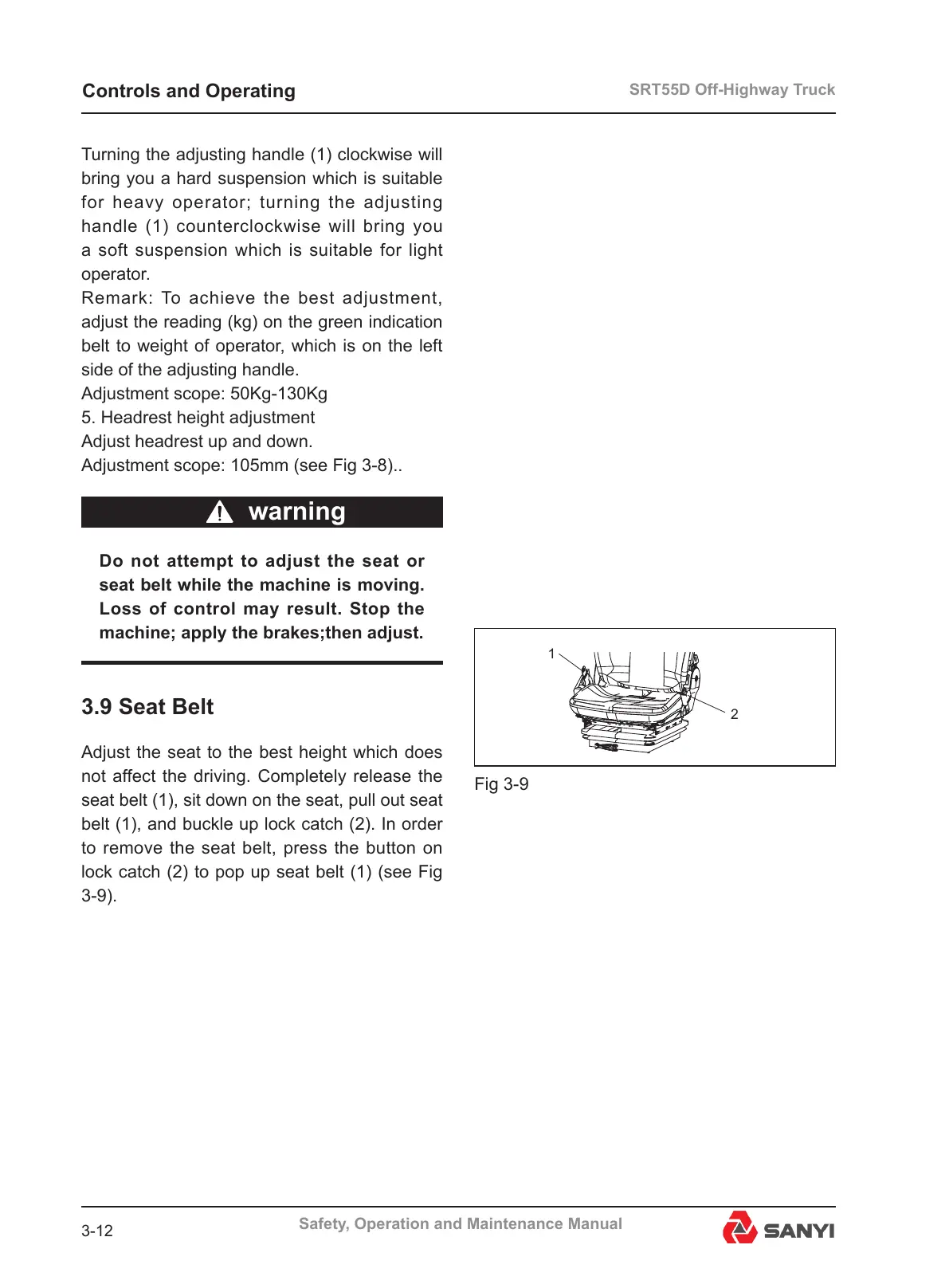

Fig 3-9
Turning the adjusting handle (1) clockwise will
bring you a hard suspension which is suitable
for heavy operator; turning the adjusting
handle (1) counterclockwise will bring you
a soft suspension which is suitable for light
operator.
Remark: To achieve the best adjustment,
adjust the reading (kg) on the green indication
belt to weight of operator, which is on the left
side of the adjusting handle.
Adjustment scope: 50Kg-130Kg
5. Headrest height adjustment
Adjust headrest up and down.
Adjustment scope: 105mm (see Fig 3-8)..
warning
Do not attempt to adjust the seat or
seat belt while the machine is moving.
Loss of control may result. Stop the
machine; apply the brakes;then adjust.
3.9 Seat Belt
Adjust the seat to the best height which does
not affect the driving. Completely release the
seat belt (1), sit down on the seat, pull out seat
belt (1), and buckle up lock catch (2). In order
to remove the seat belt, press the button on
lock catch (2) to pop up seat belt (1) (see Fig
3-9).
