SRT55D Off-Highway Truck
8-119
Safety, Operation and Maintenance Manual

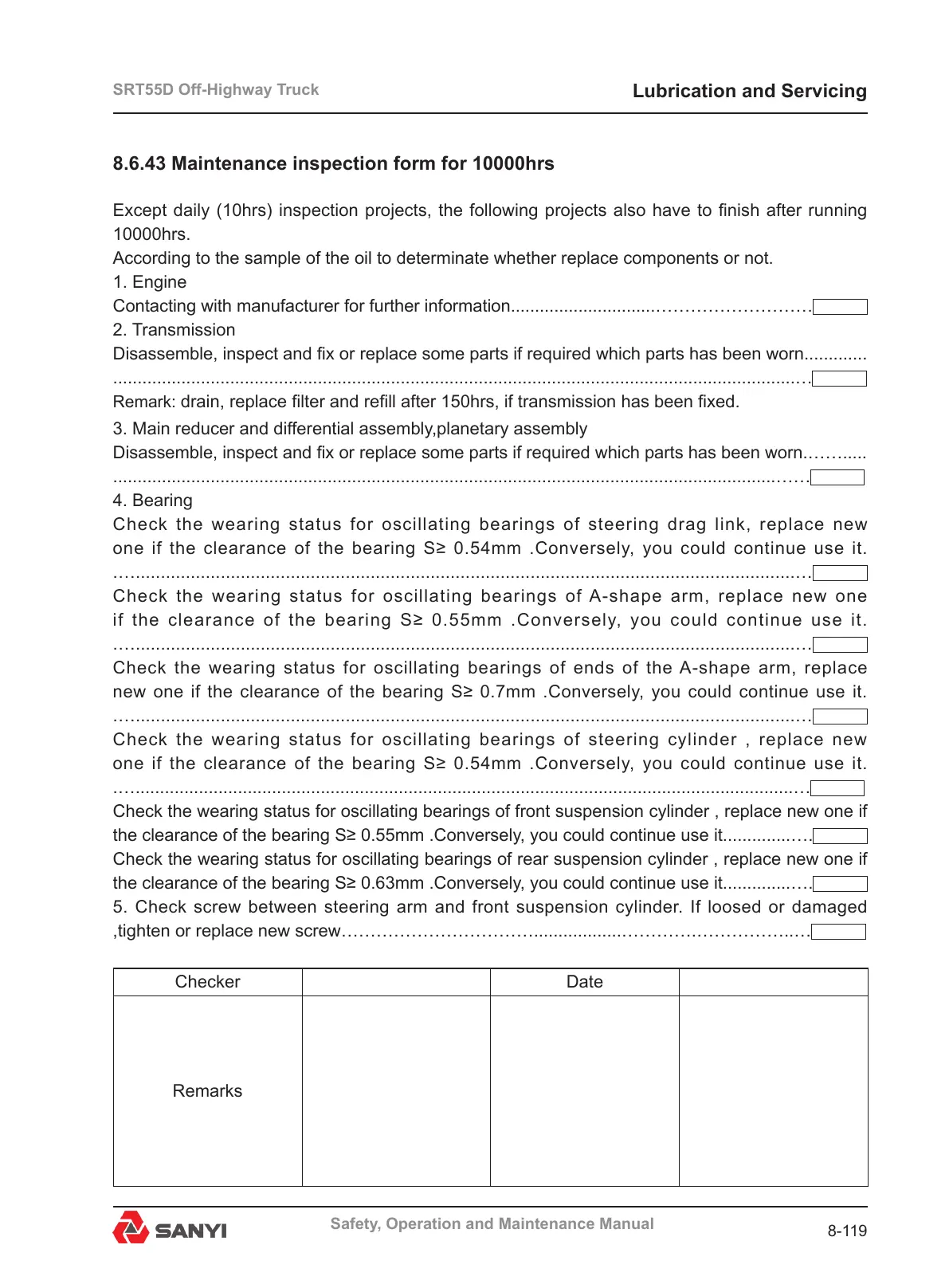

8.6.43 Maintenance inspection form for 10000hrs
Except daily (10hrs) inspection projects, the following projects also have to nish after running
10000hrs.
According to the sample of the oil to determinate whether replace components or not.
1. Engine
Contacting with manufacturer for further information..............................………………………
2. Transmission
Disassemble, inspect and x or replace some parts if required which parts has been worn.............
............................................................................................................................................…
Remark:
drain, replace lter and rell after 150hrs, if transmission has been xed.
3. Main reducer and differential assembly,planetary assembly
Disassemble, inspect and x or replace some parts if required which parts has been worn.…….....
........................................................................................................................................……
4. Bearing
Check the wearing status for oscillating bearings of steering drag link, replace new
one if the clearance of the bearing S≥ 0.54mm .Conversely, you could continue use it.
.…....................................................................................................................................…
Check the wearing status for oscillating bearings of A-shape arm, replace new one
if the clearance of the bearing S≥ 0.55mm .Conversely, you could continue use it.
.…....................................................................................................................................…
Check the wearing status for oscillating bearings of ends of the A-shape arm, replace
new one if the clearance of the bearing S≥ 0.7mm .Conversely, you could continue use it.
.…....................................................................................................................................…
Check the wearing status for oscillating bearings of steering cylinder , replace new
one if the clearance of the bearing S≥ 0.54mm .Conversely, you could continue use it.
.….......................................................................................................................................…
Check the wearing status for oscillating bearings of front suspension cylinder , replace new one if
the clearance of the bearing S≥ 0.55mm .Conversely, you could continue use it..............….
Check the wearing status for oscillating bearings of rear suspension cylinder , replace new one if
the clearance of the bearing S≥ 0.63mm .Conversely, you could continue use it..............….
5. Check screw between steering arm and front suspension cylinder. If loosed or damaged
,tighten or replace new screw……………………………..................………….……………..…
Checker Date
Remarks
Lubrication and Servicing
