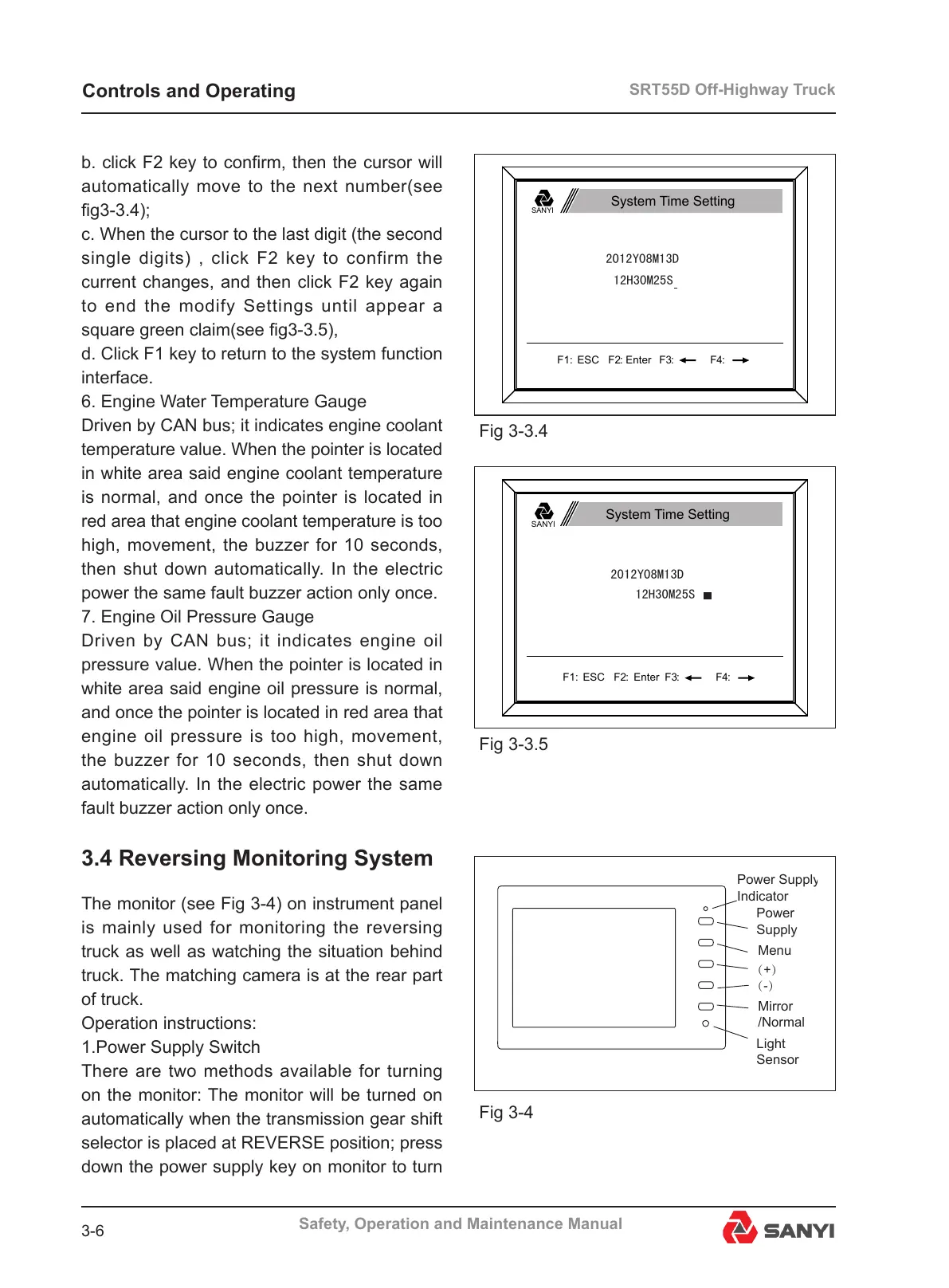

SRT55D Off-Highway Truck
3-6
Safety, Operation and Maintenance Manual
Controls and Operating
b. click F2 key to conrm, then the cursor will
automatically move to the next number(see
g3-3.4);
c. When the cursor to the last digit (the second
single digits) , click F2 key to confirm the
current changes, and then click F2 key again
to end the modify Settings until appear a
square green claim(see g3-3.5),
d. Click F1 key to return to the system function
interface.
6. Engine Water Temperature Gauge
Driven by CAN bus; it indicates engine coolant
temperature value. When the pointer is located
in white area said engine coolant temperature
is normal, and once the pointer is located in
red area that engine coolant temperature is too
high, movement, the buzzer for 10 seconds,
then shut down automatically. In the electric
power the same fault buzzer action only once.
7. Engine Oil Pressure Gauge
Driven by CAN bus; it indicates engine oil
pressure value. When the pointer is located in
white area said engine oil pressure is normal,
and once the pointer is located in red area that
engine oil pressure is too high, movement,
the buzzer for 10 seconds, then shut down
automatically. In the electric power the same
fault buzzer action only once.
3.4 Reversing Monitoring System
The monitor (see Fig 3-4) on instrument panel
is mainly used for monitoring the reversing
truck as well as watching the situation behind
truck. The matching camera is at the rear part
of truck.
Operation instructions:
1.Power Supply Switch
There are two methods available for turning
on the monitor: The monitor will be turned on
automatically when the transmission gear shift
selector is placed at REVERSE position; press
down the power supply key on monitor to turn
+
-
Light
Sensor
Mirror
/Normal
Menu
Power
Supply
To Next Page
