SRT55D Off-Highway Truck
9-1
Safety, Operation and Maintenance Manual
4506
648
572
1049
3568
5433
4210
2900
3460
4632
4344
2226
4308
9 TECHNICAL DATA
Engine
Make/Model…............ Cummins QSK19-C700
Type………………….............................4 cycle,
turbocharged/low temperature aftercooled.
electronic management
Gross power
At the rate of 2100rpm………..…522kw
(700hp)
Net power
At the rate of 2100rpm…….……481kw (645hp)
Note
: Power ratings to SAE J1995 Jun 90.
Engine emission meets Tier II USA EPA/CARB
MOH 40 CFR 89 and proposed EU NRMM
(non-road mobile machinery directive).

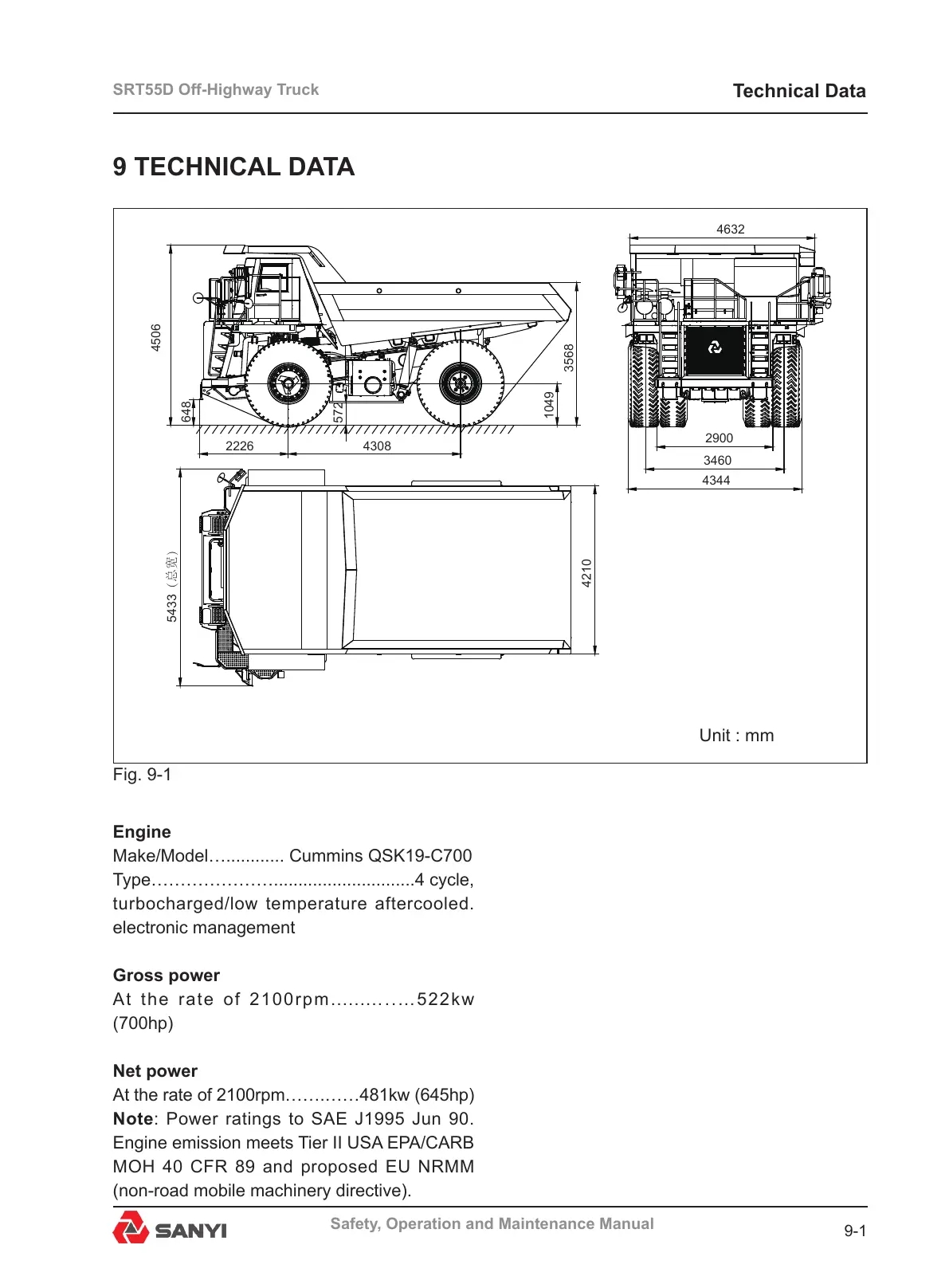

Fig. 9-1
Unit : mm
Technical Data
