Sanyo PLC-SU20E

-20-
COMBINATION-(1)
COMBINATION-(2)
Type A * Type B
SEAL PART NO. PART NO. SERVICE PART NO.
R-LCD PANEL RED SEAL P09SG210 P09SG210B 645 041 3964
G-LCD PANEL NO SEAL P09SG220 P09SG220B 645 041 3957
B-LCD PANEL BLUE SEAL P09SG210 P09SG210B 645 041 3971

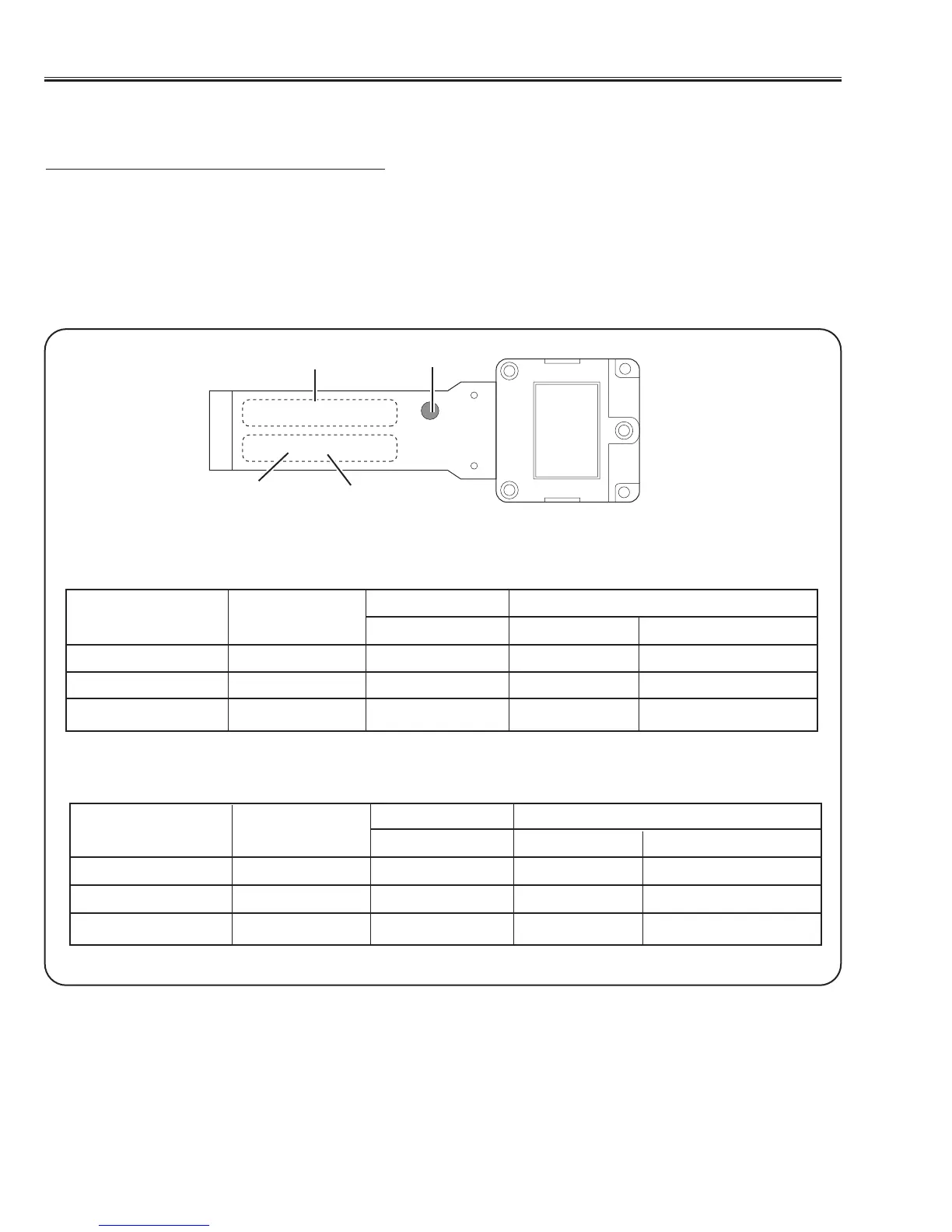

● COMBINATION OF LCD PANELS
When replacing the LCD panel, confirm the indication of the LCD panel, then replace the correct LCD panel.
Select either combination (1) or (2) when in combine the R, G and B LCD panel.
There is no combination to be used except them.
As the only Type B LCD panels are supplied for the service spare parts, the service parts for the Type A LCD pan-
els are not available. Please order the Type B LCD panels for replacement.
For example, if you intend to replace the R-LCD panel which is indicated part no. “P09SG220” with red seal, the
combination of LCD panels for this projector is employed COMBINATION-(1). So the service parts for R-LCD panel
should be PART NO. “P09SG220B” / SERVICE PART NO. “645 041 3995”.
Type A * Type B
SEAL PART NO. PART NO. SERVICE PART NO.
R-LCD PANEL RED SEAL P09SG220 P09SG220B 645 041 3995
G-LCD PANEL NO SEAL P09SG210 P09SG210B 645 041 3988
B-LCD PANEL BLUE SEAL P09SG220 P09SG220B 645 041 4008
SEAL
PART NO.
LOT NO.
P09SG210
1-A-1234A9
TYPE NO.
A : Type A
B : Type B
* These are not supplied as a service parts.
