-8-

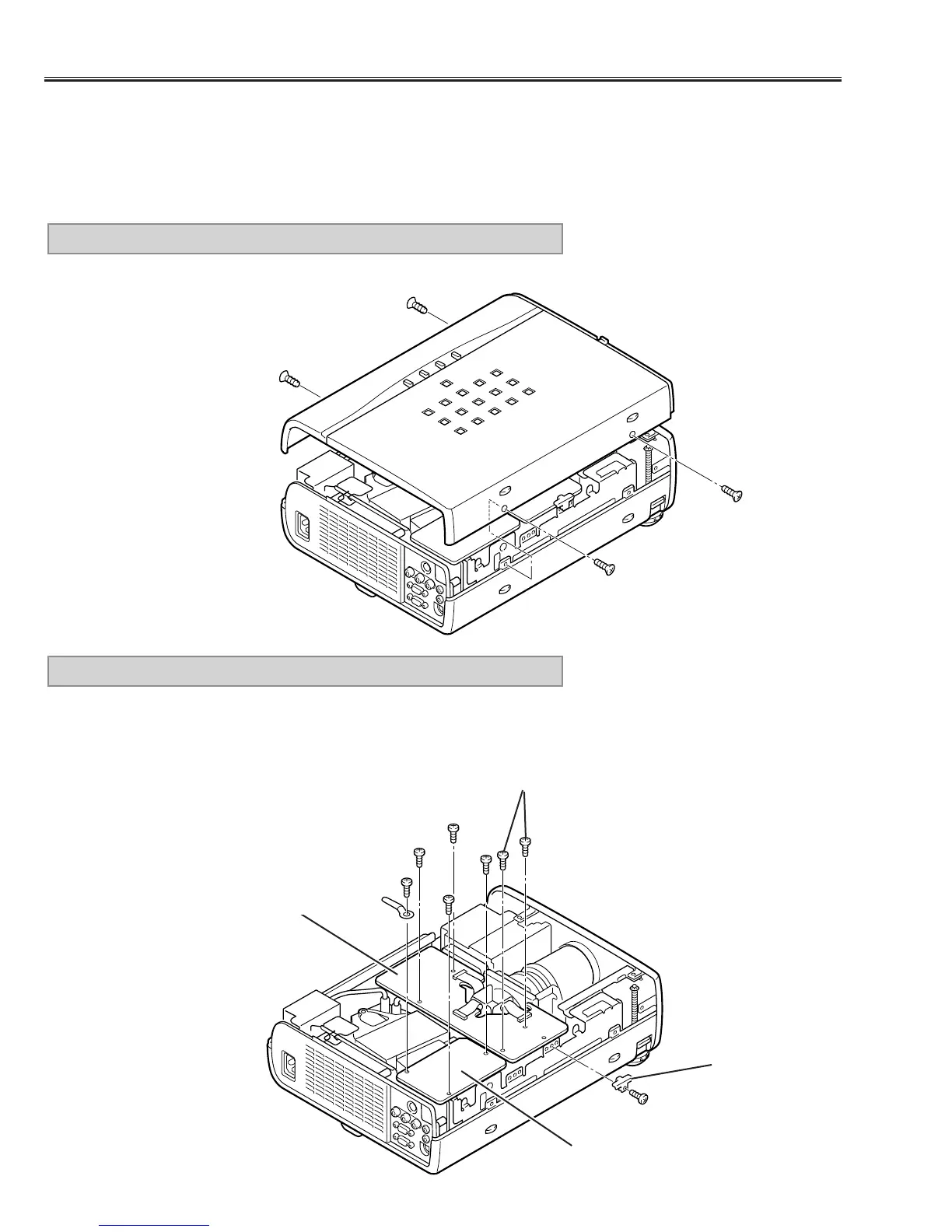

Remove 4 screws and pull cabinet top upward.
1. CABINET TOP REMOVAL
■ Mechanical Disassemblies
Mechanical disassemble should be made following procedures in numerical order.
Following steps show the basic procedures, therefore unnecessary step may be ignored.
Caution:
The parts and screws should be placed exactly the same position as the original otherwise it may cause loss of
performance and product safety.
Fig.1
1) Remove 3 screws (A) and take the AV SUB Board off upward.
2) Remove a screw (B) and a fixer, then disconnect the FPC cables.
3) Remove 4 screws (C) and pull the Main-B/C Boards off upward.
2. AV SUB, MAIN-B/C BOARD REMOVAL
Fig.2
C
C
C
A
A
A
B
Fixer
AV SUB Board
Main-B/C Board
To Next Page
