-87-
Optical Parts List
OPTICAL PARTS

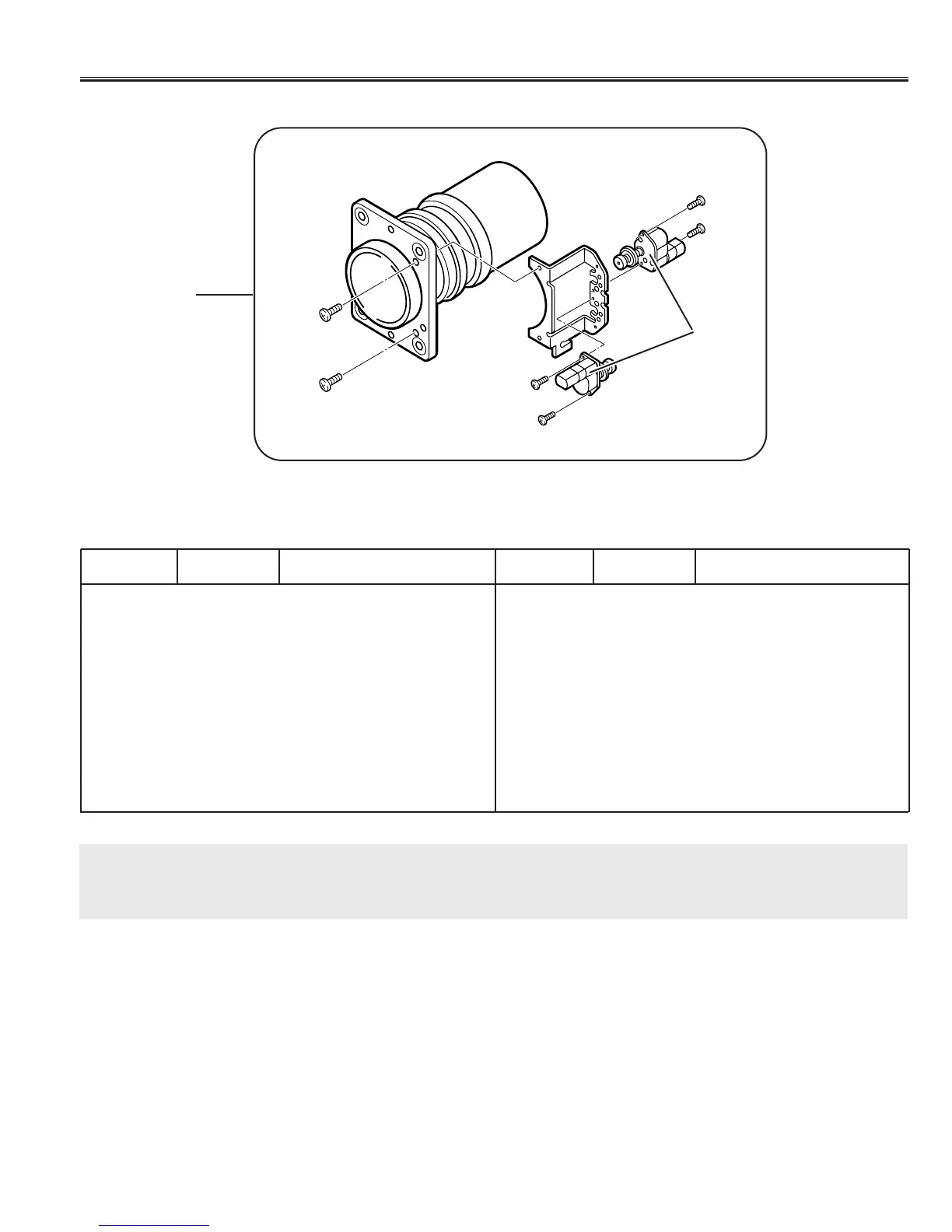

55 645 035 5950 ASSY,LENS,PROJECTION
(Including Key No. 56)
56 645 030 7959 MOTOR,LENS(Z,F) DC 0.2W
57 645 040 6638 ASSY,PRISM A MA6A
58 645 037 5538 ASSY,PRISM(PBS)
59 645 037 4654 LENS,INTEGRATOR(OUT)
60 645 037 4661 LENS,INTEGRATOR(IN)
61 645 037 5569 LENS,RELAY(IN)
62 645 037 5576 LENS,RELAY(OUT)
63 645 037 5583 LENS,CONDENSER(IN)
64 645 037 5590 LENS,CONDENSER(OUT)
65 645 037 5606 LENS,CONDENSER
66 645 037 5613 LENS,CONDENSER(B)
67 610 284 8892 MIRROR(W-COLD)
68 610 284 8908 MIRROR(R)
69 610 284 8915 MIRROR(B)
70 645 037 5637 OPTICAL FILTER(UV CUT)
71 645 036 6635 POLARIZED GRASS(R-FIL)
72 645 039 7387 POLARIZED GRASS(IN/G)SA
73 645 039 7394 POLARIZED GRASS(IN/B)SA
74 610 284 8922 DICHROIC MIRROR (R)AST
75 610 284 8939 DICHROIC MIRROR (G)
Key No. Part No. Description Key No. Part No. Description
CAUTION:
Part must be placed in specified direction when replacing the optical parts. Please see “Optical Parts Disassemblies” for
further instructions.
55
56
To Next Page
