- 116 -
ME4-Z300000
- 116 -
LENS- CONDENSER (OUT) and LENS-RELAY(OUT) are xed with the
adhesive on to the optical base bottom, so these parts are not the
replaceable parts.
Lamp Iris, Filter Motor, and Optical Filter (Cinema) are not included
in COMPL, Optical unit.
L03R
L03L
L03-5
L03-3
L03-4
Fixed (LENS,RELAY(OUT))
Not replaceable part.
L03-7
L03-6
L03-7
L03-8
L03-9
L03-5
L03-10
L03-11
R
G
B
Fixed (OPTICAL BASE BOTTOM)
Not replaceable part.

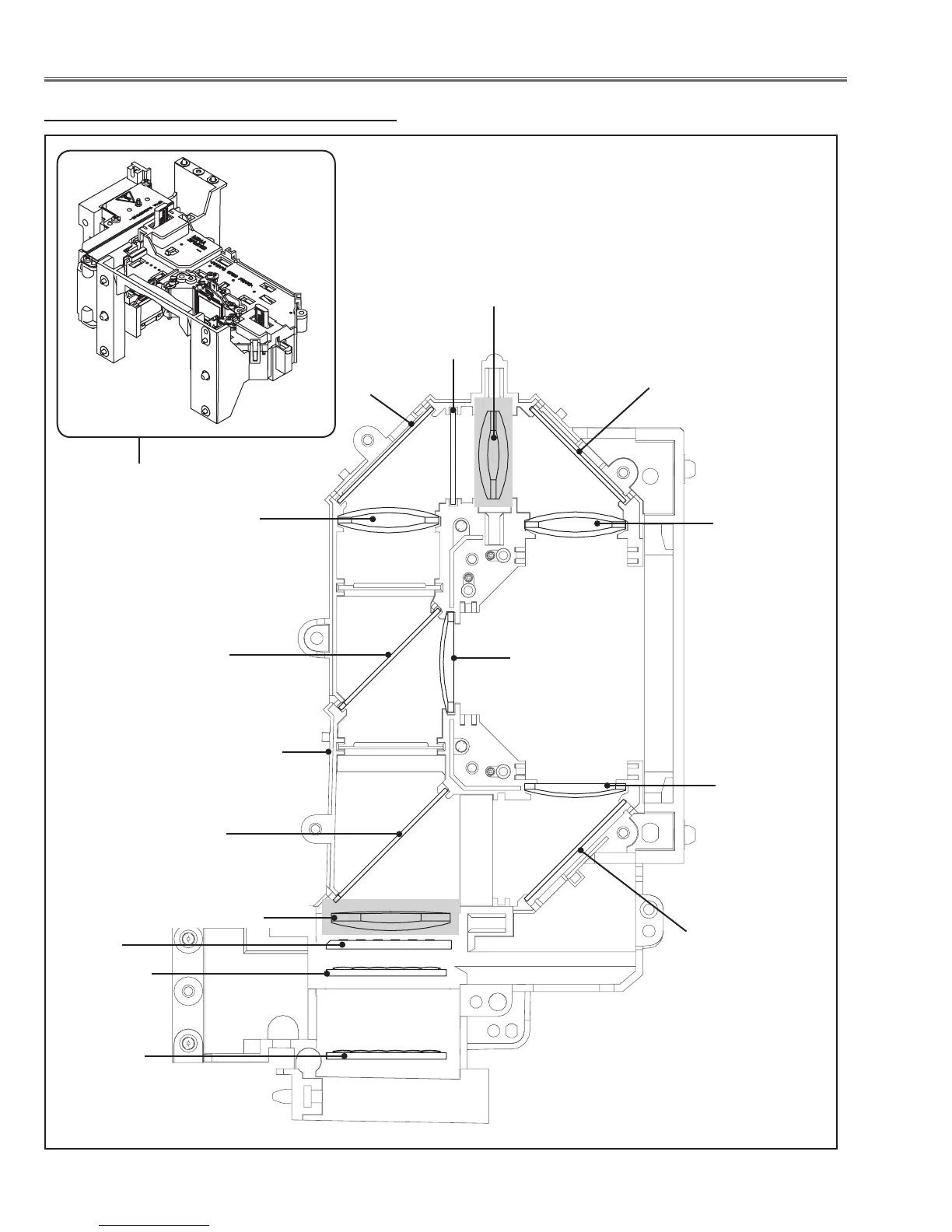

COMPL, OPTICAL UNIT (Inside)
Fixed (LENS, CONDENSER(OUT))
Not replaceable part.
Mechanical Parts List
L03-13
L03-12

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
