Sanyo PLV-Z3000 - Optical Disassemblies

- 34 -
■ Optical disassemblies
1

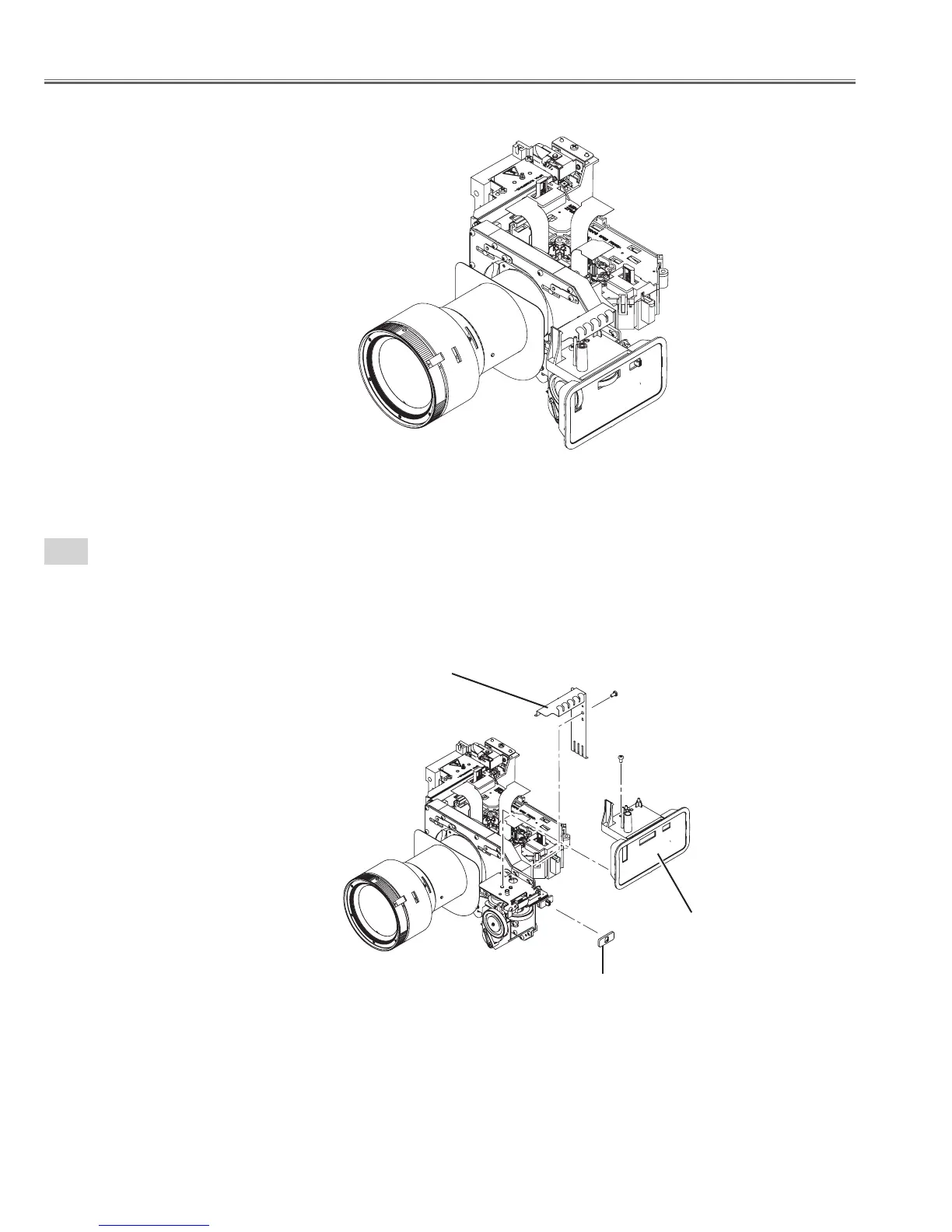

Lens shift panel remonal.
1. Remove the screw-A (M3x6), remove the shield plate.
2. Remove the screw-B (M3x6), remove the Lens shift panel and remove the Slide cover.
Optical unit
Slide cover
Lens shift panel
B
A
Shield plate
