Sanyo PLV-Z3000 Service Manual

- 41 -
L03-5
L02

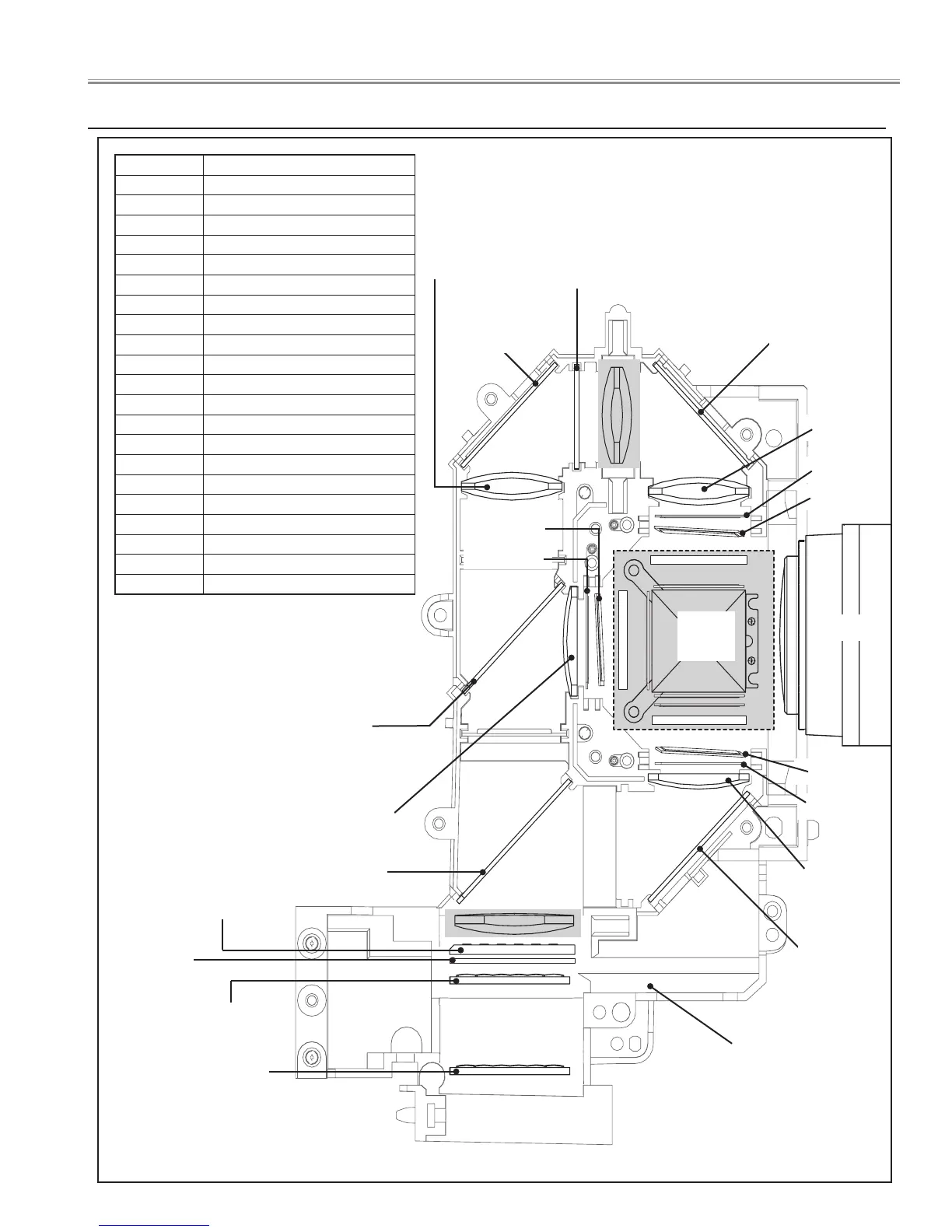

● Optical parts location and direction
L01R ASSY, LCD PNL/SM R-MF4A
L01L ASSY, LCD PNL/SM L-MF4A
L02 LENS, PROJECTOR
L03R/L03L COMPL, OPTICAL R/L-MF4A
L03-1R OPTICAL FILTER (HPO)90
L03-1G OPTICAL FILTER (HPO)90
L03-1B OPTICAL FILTER (HPO)90
L03-2R POLARIZED GLASS (IN/R)
L03-2G POLARIZED GLASS (IN/G)
L03-2B POLARIZED GLASS (IN/B)
L03-3 LENS, CONDENSER (G)
L03-4 LENS, CONDENSER (B)
L03-5 LENS, CONDENSER (R)
L03-6 MIRROR (B)
L03-7 MIRROR (R)
L03-8 OPTICAL FILTER (R)
L03-9 PRISM (PBS)
L03-10 DICHROIC MIRROR (B)
L03-11 DICHROIC MIRROR (G)
L03-12 LENS, INTEGRATOR (IN)
L03-13 LENS, INTEGRATOR (OUT) UV
L04 OPTICAL FILTER (CINEMA)
L01R
L01L
L03-1R
L03-2B
L03-1G
L03-2G
L03-2R
L03-3
L03-4
L03-5
L03-6
L03-7
L03-7
L03-8
L03-9
L03-11
L03-10
L03R
L03L
L03-13
L03-12
L03-1B
L04
Optical disassemblies

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
