Sanyo PLV-Z3000 Service Manual

- 42 -

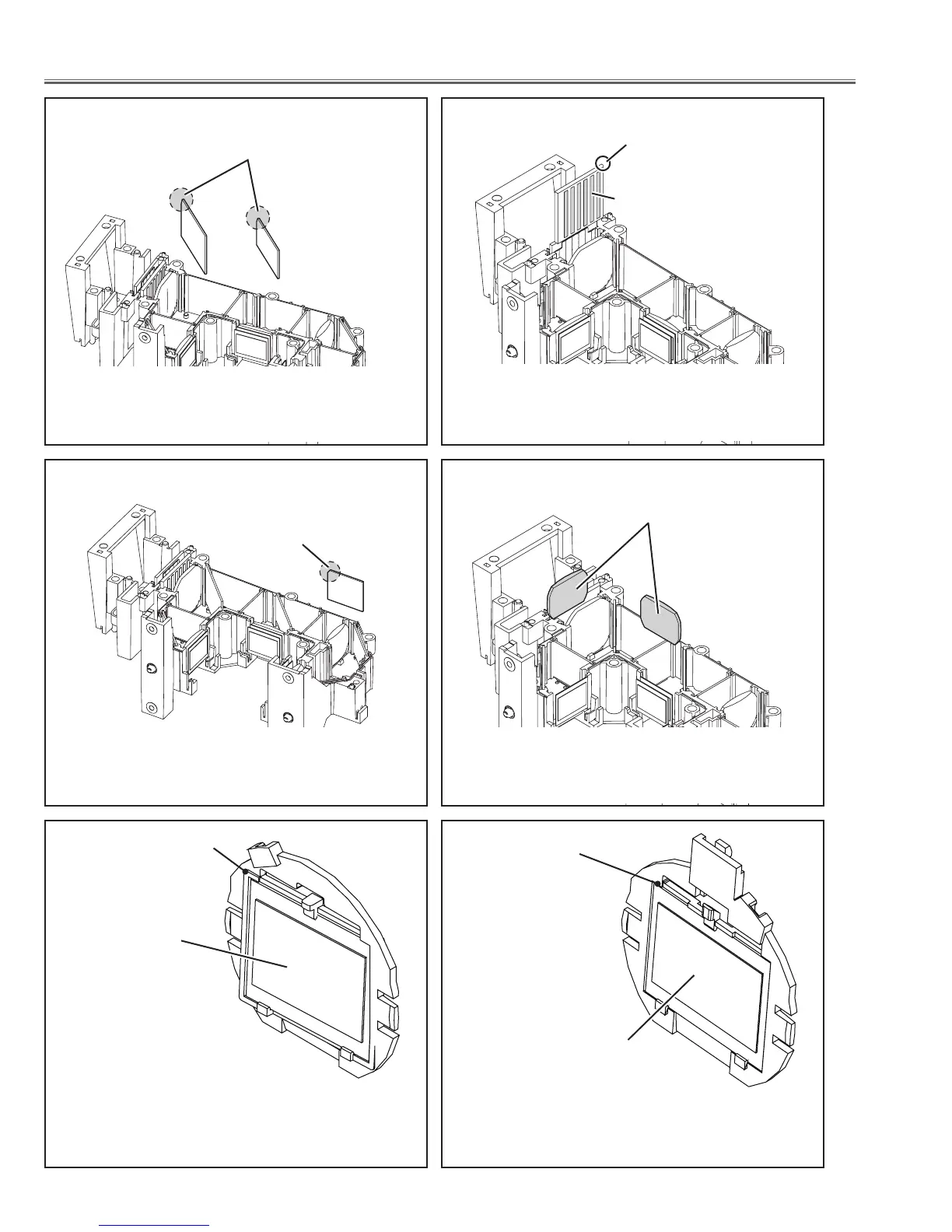

OPTICAL FILTER (R) CONDENSER LENS (G, B)
DICHROIC MIRROR
PBS
Film attached side comes
this side.
Chamfer corner comes
this side.
Chamfer corner comes this side up.
Chamfer corner comes
this side up.
Flat surface side comes
this side.
OPTICAL FILTER
POLARIZED GLASS (IN)
Film attached side comes
this side.
Film attached side
comes this side.
The marker comes this
up side.
The marker comes this
up side.
Optical disassemblies

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
