Sanyo PLV-Z3000 Service Manual

- 74 -
IC8001
HDMI
RECEIVER
IC4401
COLOR
MANAGER
IC5201
DOUBLE
SPEED I/F
R-LCD PANEL
PANEL Driver
PANEL Driver
PANEL Driver
G-LCD PANEL
B-LCD PANEL
HDMI1
COMPONENT-2COMPONENT-1COMPUTERHDMI1
IC3401
SDRAM
IC5211
DDR2
IC5212
DDR2
IC5213
DDR2
IC4801
SUB CPU
IC4833
IC8863
DOOR
SW
DOOR
SW
FAN
LINE
FILTER
LAMP
BALLAST
LAMP
IC8841
TEMP. SENSOR
IC801
FLASH ROM
D-SUB_15
SLIDE DOOR
DIGITAL
RGB
HDMI2 HDMI2
DIGITAL
RGB
ANALOG
RGB
Y
Y/C
CB
CR
Y
CB
CR
KEY SW
Y/C
CV
Y,Cb,Cr
Y,Cb,Cr
B
G
R
FAN CONTROL
(LAMP)
(ROOM)
LED
CV
IC1391
EEPROM
Lamp Iris
Motor Driver
Lamp Iris
Motor
Cinema Fiter
Switch
PC_RGB
SOG
Y,Cb,Cr
SCAN
CONVERTER
IC301
SYSTEM
CONTROL
WITH A/D
CONVERTER
IC401
DIGITAL
GAMMA
S-VIDEO
VIDEO
POWER KEY
LAMP COVER SW
LAMP _SW
TO: IC4401
POWER
FAIL
SERVICE
PORT
IC3801
RS-232C
TRANSMITTER
THERMAL SW
MAIN
SW
FUSE
SLIDE DOOR MOTOR
IC6551
MOTOR DRIVER
M
PC_H/V
SCART_CV
PC_H/V
R/C
SWITCHING
POWER
SUPPLY
PRIMARY CIRCUIT
AC
100~240V
TH902
THERMISTOR1
TH901
THERMISTOR2
(PANEL)
Lamp Iris CPU
Inoganic Hyblid LCD Panel
Cinema Fiter Motor
M
● Chassis Overview

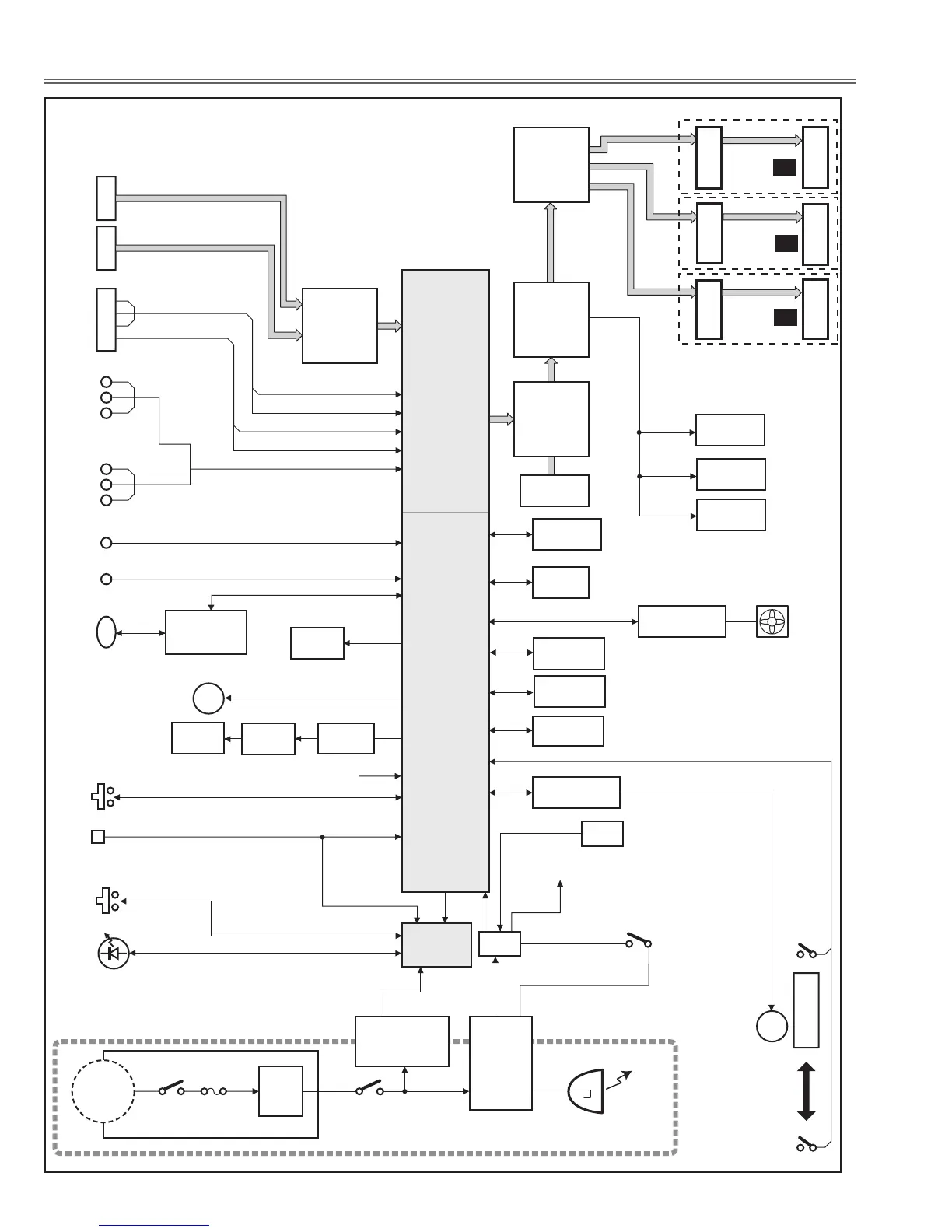

■ Chassis Block Diagram

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
