Sanyo PLV-Z3000 Service Manual

ME4-Z300000
- 93 -
- 93 -

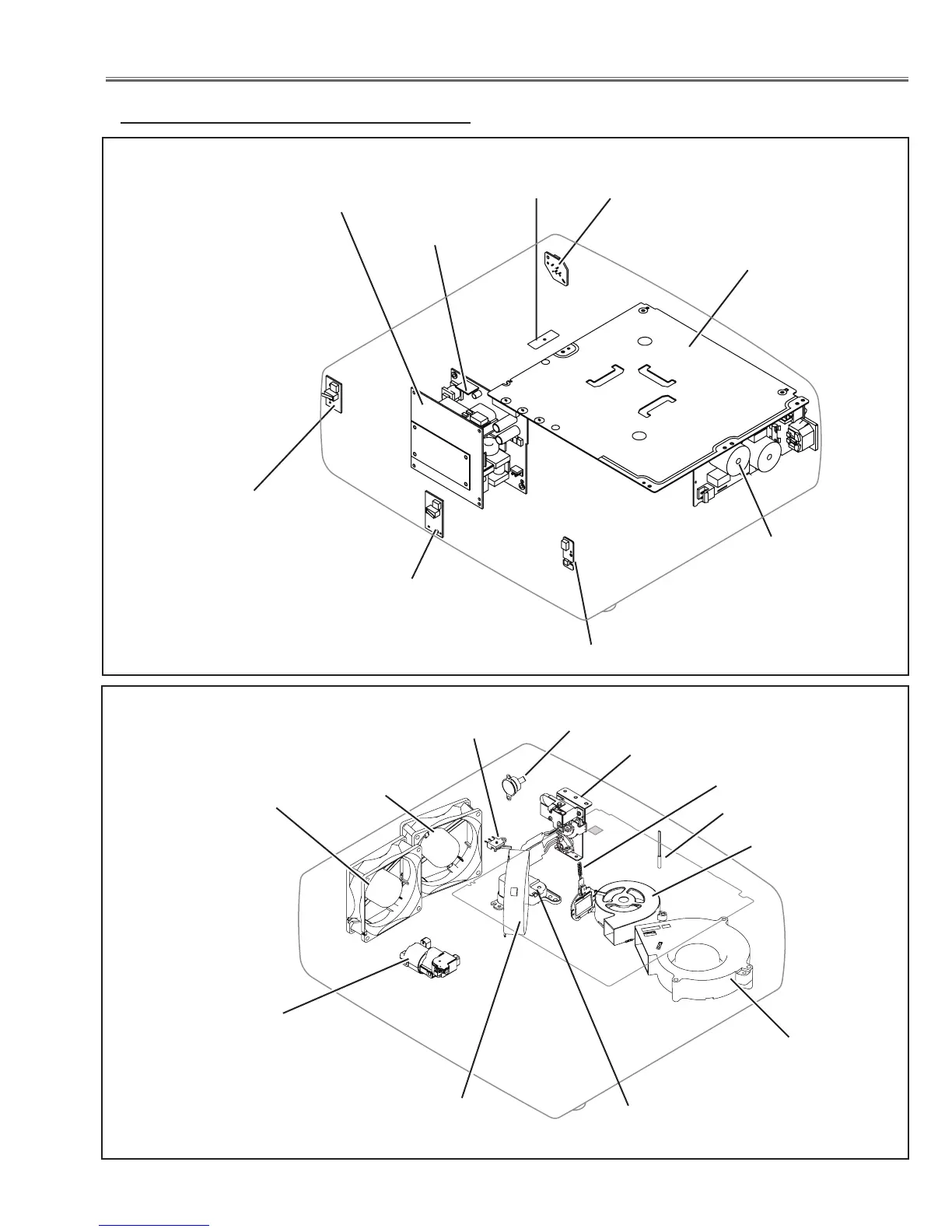

A100
Main board
A902
Power unit
A901
Ballast unit
A601
Filter board
A8801
Door Switch1 board
A8802
Door Switch2 board
A8803
Lamp switch board
A102
Filter Net board
A101
R/C board
Front
● Assembled Board
● Out of Circuit Board
Front
FAN (FN902)
(Exhaust)
FAN (FN905)
(Intake)
FAN (FN904)
(Intake)
FAN (FN903)
(Exhaust)
FAN (FN901)
(Exhaust)
(Door Motor)
Thermal Switch (SW902)
Thermistor (TH901)
Thermistor (TH902)
Electrical Parts Location
Filter Switch (SW903)
(Filter Motor)
(Lamp Iris)
Electrical Parts Location

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
