Sanyo PLV-Z3000 - Page 40

- 40 -
6

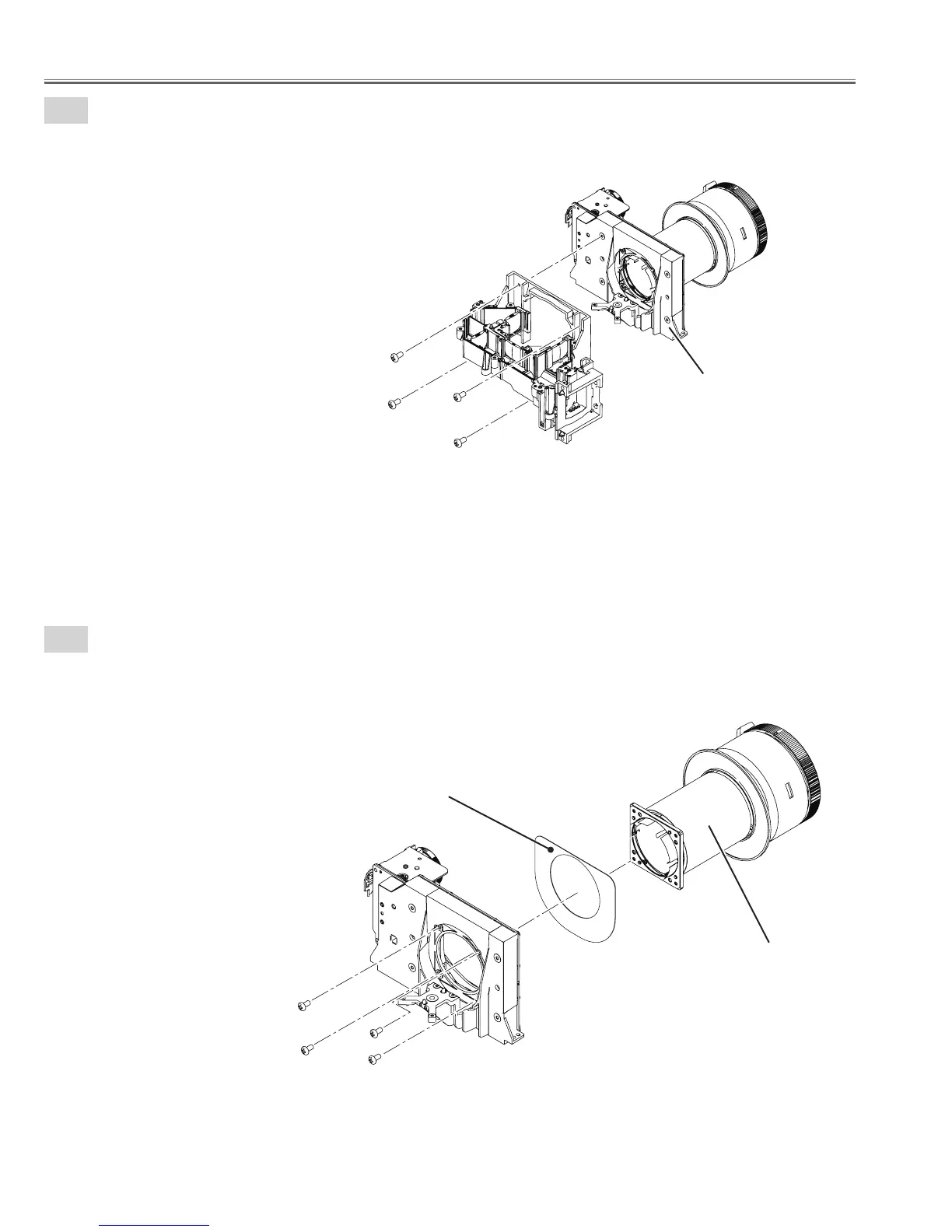

Lens shift unit removal.
1. Remove the 4 screws (M3x6) and remove the Lens shift unit.
7
Projection lens removal.
1. Remove the 4 screws (M2.6x6) and remove the Projection lens.
Lens shift unit
Projection lens
Spacer
Optical disassemblies
