Sanyo PLV-Z3000 Service Manual

- 32 -
15

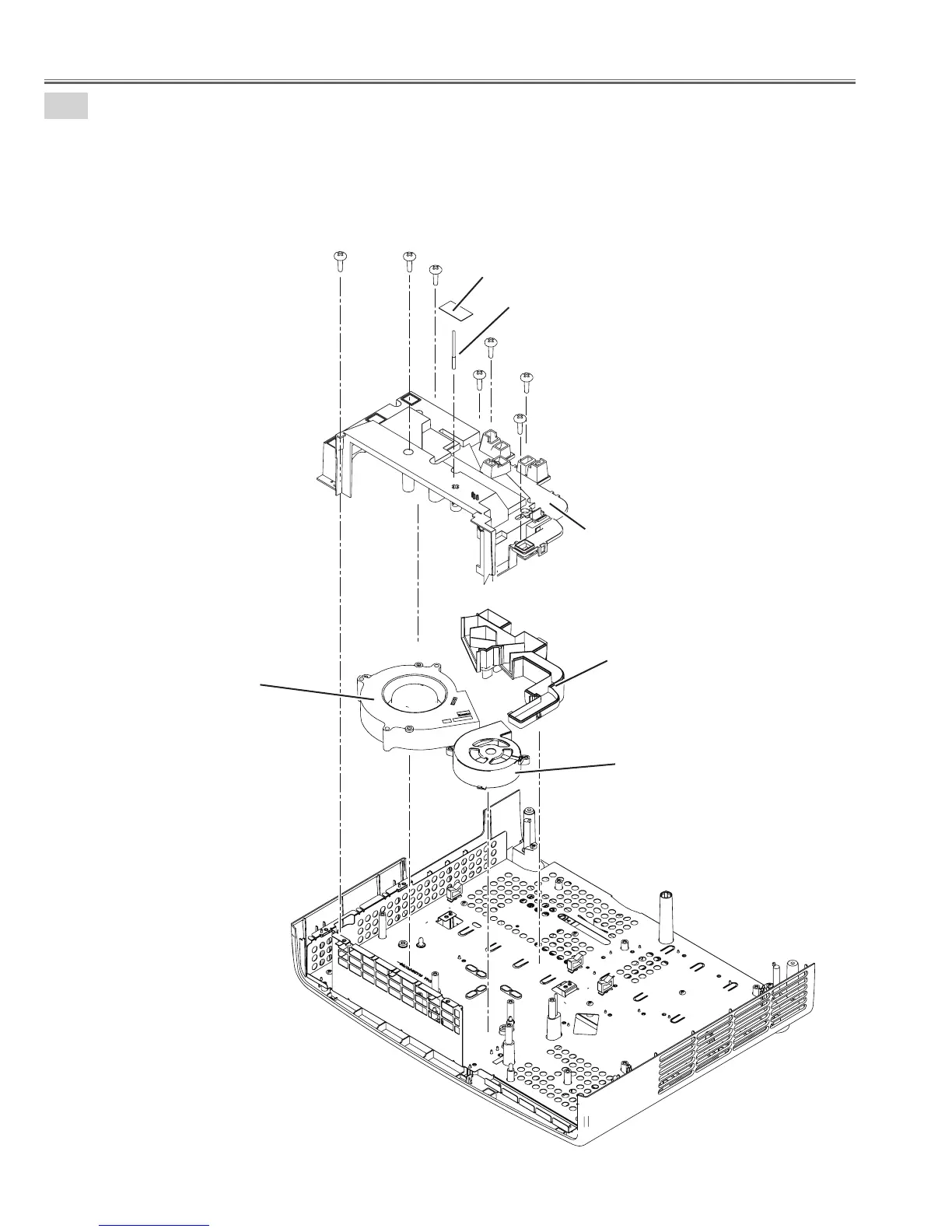

Duct unit removal.
1. Remove the 7 screws (T3x8) and remove the Duct panel top.
2. Remove the Spacer and remove the Themistor(TH902).
3. Remove the FN904 and FN905.
4. Remove the Duct panel bottom.
Duct panel top
Duct panel bottom
Spacer
Themistor(TH902)
FN905
FN904
Mechanical disassemblies
