Sanyo PLV-Z3000 Service Manual

- 84 -

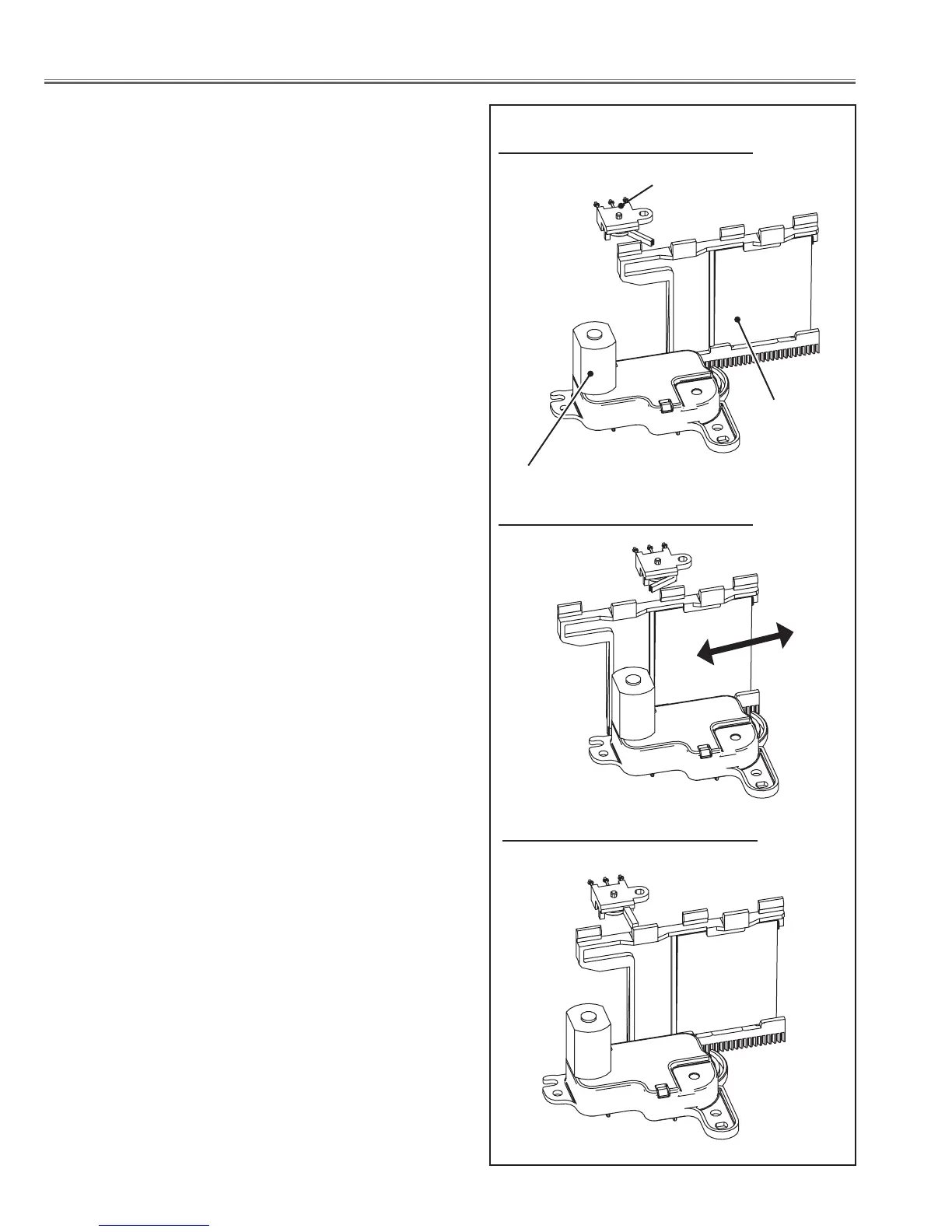

● Cinema Filter -IN
● Cinema Filter -OUT
Cinema Filter Motor
The projector provides cinema filter switches (SW903).
If the cinema filter is half-open or close, the lamp does not light. If
the cinema filter error occurs during opertion, the POWER indicator
and WARNIMG indicator will ligths red and the projector will go to
power failure stand-by mode.
Cinema lter changes automatically when the image
mode is changed.
Image Mode
Cinema filter "IN" mode : Brilliant cinema
Creative cinema
Pure cinema
x.v. Color
Natural
Cinema filter "OUT" mode: Dynamic
Living
● Cinema Filter -Error
Filter Switch (SW903)
Filter Motor
Optical Filter
(Cinema Filter)
Chassis Block Diagrams

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
