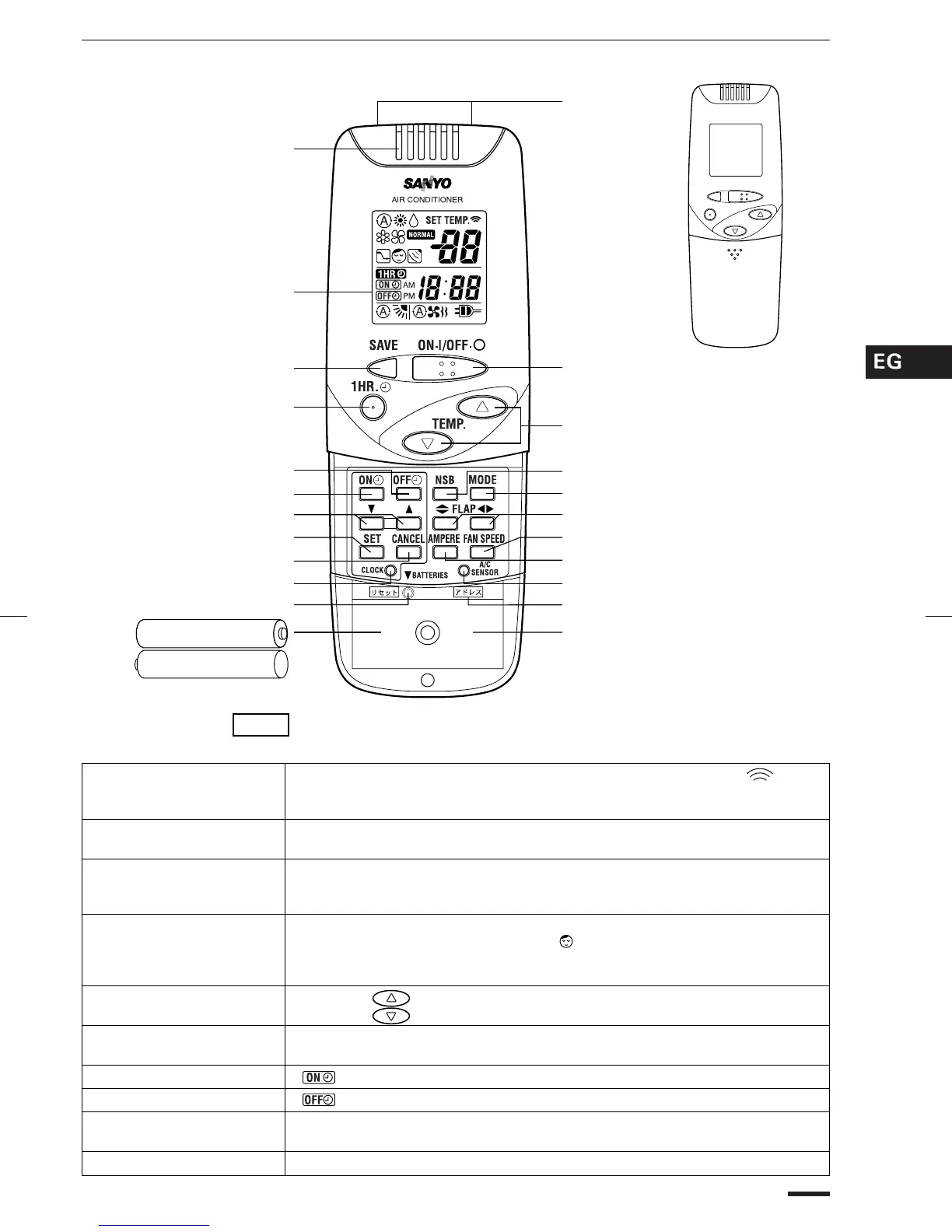

Remote Control Unit
NOTE
The illustration above pictures the remote control unit after the cover
has been lowered and removed.
Transmitter When you press the buttons on the remote control unit, the mark
appears in the display to transmit the setting changes to the receiver in
the air conditioner.
Sensor A temperature sensor inside the remote control unit senses the room
temperature.
Display Information on the operating conditions is displayed while the remote
control unit is switched on. If the unit is turned off, only the mode that
was set previously is still displayed.
NIGHT SETBACK
button
For details, see ‘‘Night Setback Mode’’. When you press this button in
the HEAT, DRY or COOL mode, the
mark appears in the display, and
the remote control unit will automatically adjust the set temperature to
save energy.
TEMP. setting buttons Press the
button to increase the set temperature.
Press the
button to reduce the set temperature.
ON/OFF operation
button
This button is for turning the air conditioner on and off.
TIMER ON button
: The air conditioner starts at the set time.
TIMER OFF button
: The air conditioner stops at the set time.
SET button After using the TIMER ON button or TIMER OFF button to set the timer,
press this button to activate the new setting.
CANCEL button Press this button to cancel the current timer setting.
Transmitter
Display
ON/OFF
operation button
FLAP buttons
TEMP. setting buttons
1 HR. TIMER button
NIGHT SETBACK button
MODE selector button
Battery compartment
(Pull off the cover to expose
the batteries.)
FAN SPEED selector button
ADDRESS switch
SAVE button
A/C SENSOR button
(Cover closed)
AAAAAA
Sensor
Timer ON button
TIMER OFF button
Back/Forward buttons
SET button
CANCEL button
CLOCK button
Reset button
AMPERE button
9OI-275-09EG
OI275000
To Next Page
