3.1 Device Overview

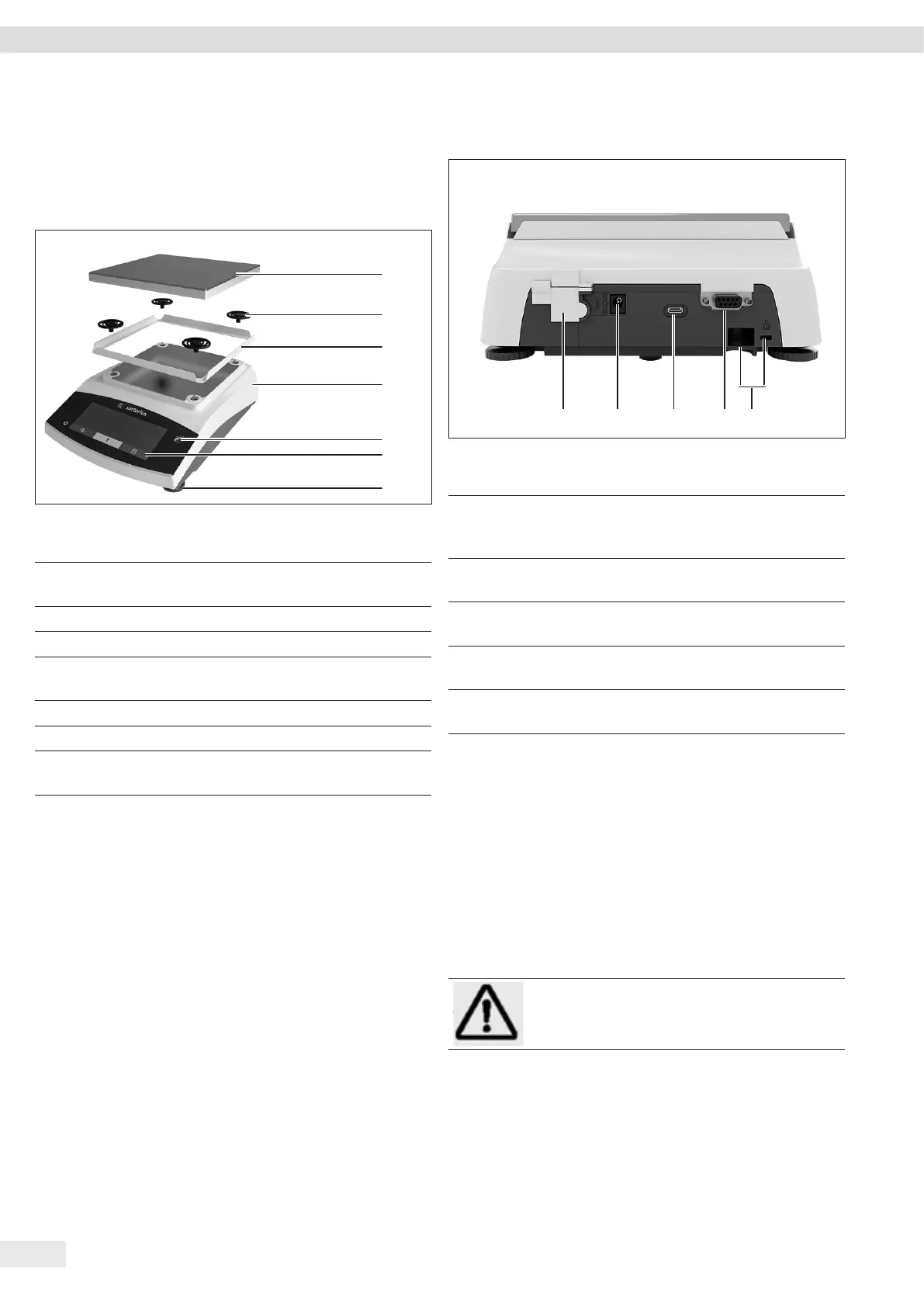

Fig. 1: Precision balance (front view)
Pos. Designation Description
1 Weighing pan For placing the sample on the
balance
2 Shock absorber
3 Frame draft shield
4 Manufacturer’s
ID label
Not visible
5 Control unit
6 Level
7 Leveling foot Used to level the balance,
manually adjustable
1
2
3
4
6
7
5
3.2 Device Connections
Fig. 2: Precision balance (rear view)
Pos. Designation Description
1 Menu access
switch
Protects the device from changes
to the device settings. Is sealed for
conformity-assessed devices.
2 Power supply Connection for power supply to the
device
3 USB-C connection For the connection to a printer, PC,
or a second display
4 RS232 connection 9-pin, for the connection to a
printer, PC, or a second display
5 Slot For attaching an anti-theft device
or a Kensington lock
3.3 Conformity-Assessed Devices
Some settings of conformity-assessed models are protected
against user changes, e.g. external calibration for devices in
accuracy class II. This measure is intended to ensure the
suitability of the devices for use in legal metrology.
3.4 Symbols on the Device
Symbol Meaning
NOTICE! Read the operating
instructions.
21 3 5
4
To Next Page
