Function Keys (Soft Keys)
The current function of soft keys is
indicated in the bottom line of the
display (footer).
Texts (abbreviations) or symbols can be
displayed.
Texts (Examples)
Cal: Start calibration | adjustment
S ID: Save ID
The function keys are numbered from
right (F1) to left (F6).
Symbols
The bottom line shows the following
symbols:
oo Back to the initial state
(in the Setup menu: exit Setup)
o Go to the higher selection level
O Show sub-items under the active
item
Q Move upward in the input |
output window
q Move downward in the input |
output window
l Set the selected menu parameter
Labeled Keys
These keys always have the function
indicated, but are not available at all
times. Availability of these functions
depends on the current operating status
and menu settings.
There are two fundamentally different
types of display:
– display for weights and calculated
values
– display for menu parameter settings
(setup)
Operation

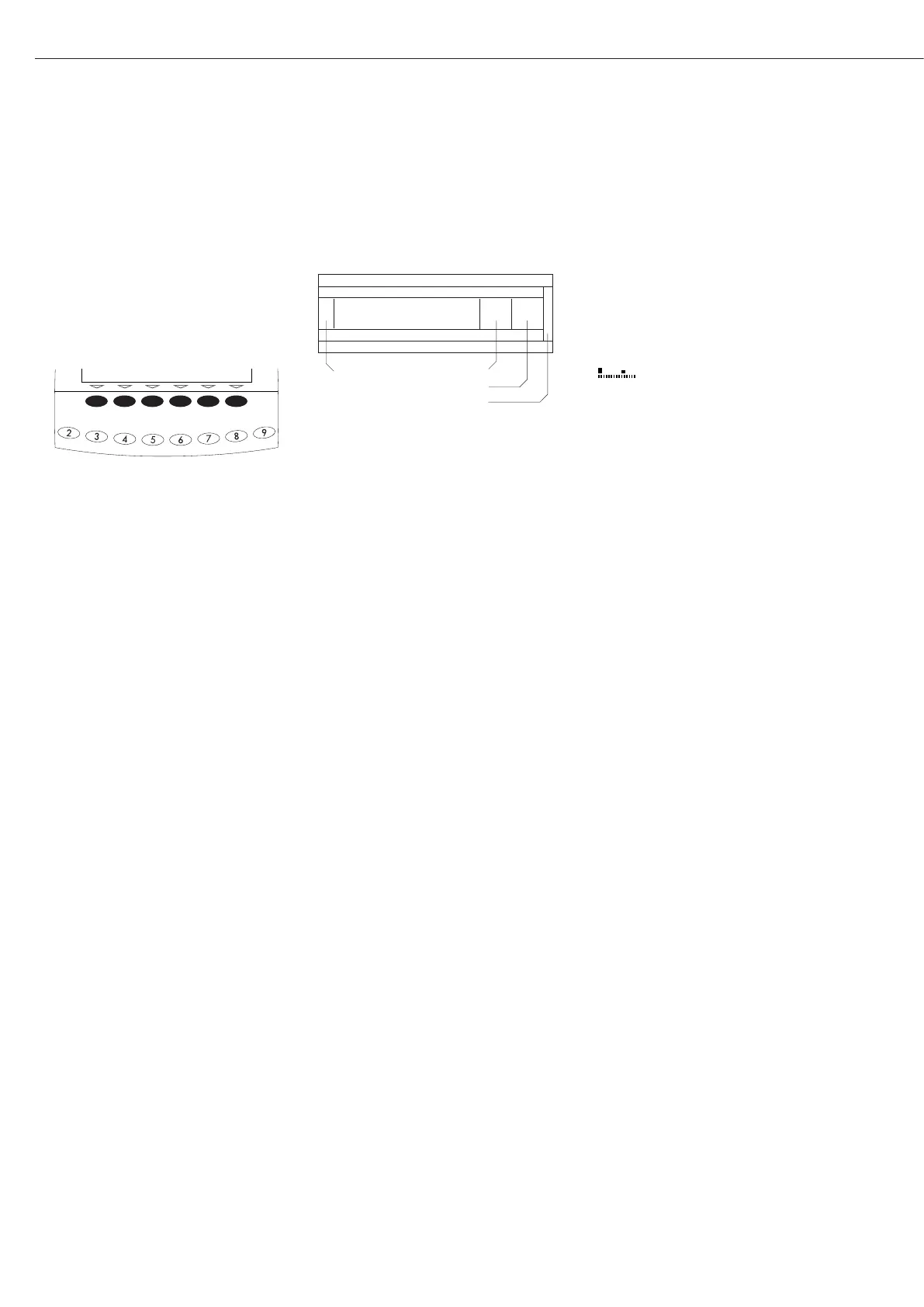

Display for Weights and
Calculated Values
This display is subdivided into 9 areas.
Line for Metrological Data:
When the balance is used in legal metrology,
the following metrological specifications
of the balance are shown here:
Max Maximum capacity (upper range
limit) of the balance
Min Minimum capacity (lower
range limit) of the balance
R1 Display when e = d
to
R4
e Verification scale interval
d Readability | scale interval
On standard balances, only
Max and d
are displayed.
Bar Graph:
The bar graph indicates how much of
the balance’s capacity is “used up” by the
current load; during checkweighing,
it indicates the control limits.
Line for metrological data
Bar graph
Measured value line
Text line
Soft key labels
Plus/minus sign Unit
Stability indicator Tare memory
Calculated value
Application pictograms
Bar Graph:
The bar graph indicates how much of the
balance’s capacity is “used up” by the
current load; during checkweighing, it
indicates the control limits.
The following symbols may be displayed:
0% Lower load limit
100% Upper load limit
Bar graph showing 10% intervals
- Minimum for checkweighing
= Target for checkweighing
+ Maximum for checkweighing
Plus/Minus Sign, Stability Symbol:
A plus or minus sign (
F or H) is shown
here for a weight (or a calculated value,
such as that for counting), or the
S symbol
indicating that a verified balance
1
) has
been zeroed or tared.
Line for Measured Values:
This area shows the weighed or calculated
value and the alphanumeric input.
Note Concerning Verified Balances
Approved for Use as Legal Measuring
Instruments in the EU*:
For verified balances that have a verifica-
tion scale interval
e which is greater than
the scale interval
d, the last digit on the
display is bordered.
Unit and Stability:
When the balance reaches stability, the
weight unit or calculated unit is displayed
here.
When the
a symbol is displayed here,
the value indicated in the readout cannot
be used in legal metrology.
* including the Signatories of the Agree-
ment on the European Economic Area
1
) Verification scale interval “e” is equal to
scale interval “d”
4
Operating Design
