SATO GL4xxe Series User Manual

Unit 6: Maintenance
GL408-412e Operator’s Manual
6-8
PRINT HEAD PRESSURE
Print Head Pressure allows for the print head to be adjusted to accommodate different media types (thicknesses).
The pressure setting lever is two posiiton (normal and high). The table that follows coorelates the media media
used with apressure setting.
To adjust the pressure lever, the balance dial must be set to the “A” position. Once the pressure is properly set,
return the balance dial to its previous position.

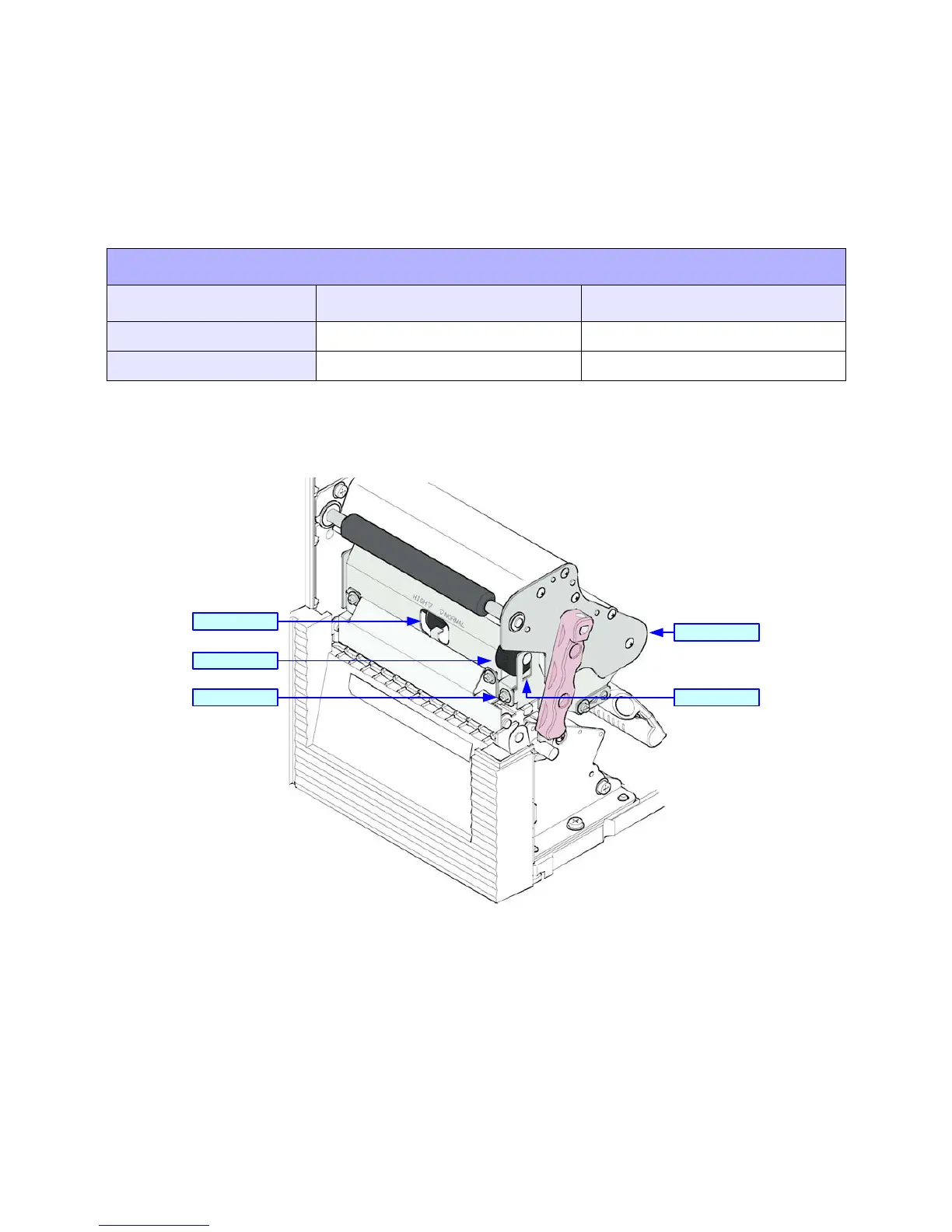

Figure 6-6, Print Head Pressure
BALANCE ADJUSTMENT
MEDIA SCALE THICKNESS
Thin paper, normal label, etc. Normal 0.080 to 0.200
Thick paper, tag stock, etc. High 0.200 to 0.268
Pressure Lever
Balance Dial
Set Screw
Upper Print Assy
Dial Window
