Unit 3: Installation
GL408-412e Operator’s Manual
3-3
PRINTER INSTALLATION
This chapter provides guidance on how to station, connect, and load the printer once unpacked. Following printer
setup, procede to the next chapter for information on interface selection.
SITE LOCATION
• Stationed on a solid flat surface.
• Stationed away from hazardous materials.
• Stationed within operational distance of the host based on interface specifications.
CABLE CONNECTION
The diagram below (Figure 3-2) displays the printer’s connectors and ports for power supply and host interfacing.
For interfacing, choose the desired method and connect it’s respective cable as indicated.
All interface boards are integrated except the LAN/WLAN board. This will have to be installed as shown.
When the interface cable is connected, or the board is installed, the interface option will display in the configuration
menus of the operator panel. Refer to the Configuration unit of this manual to configure the printer for host
computer interfacing.

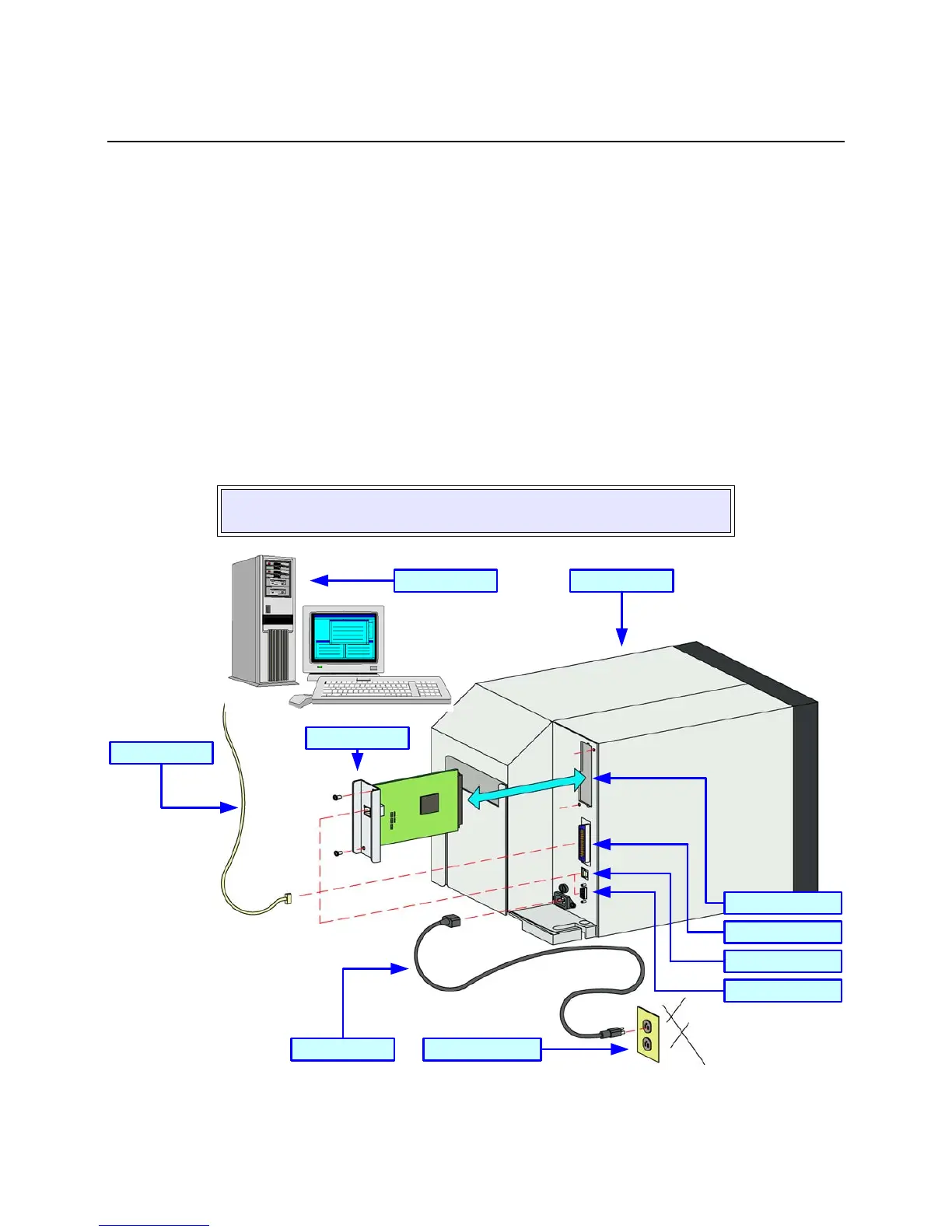

Figure 3-2, Cable Connection Diagram
NOTE: Multiple interface options may display in the printer’s LCD menus, the
desired option must be chosen.
