6.3.5 Limitation on Base Reference Point Adjustment
After adjusting the print position and stop position, the distance between these two positions should not
exceed one pitch size (including liner) of the media.

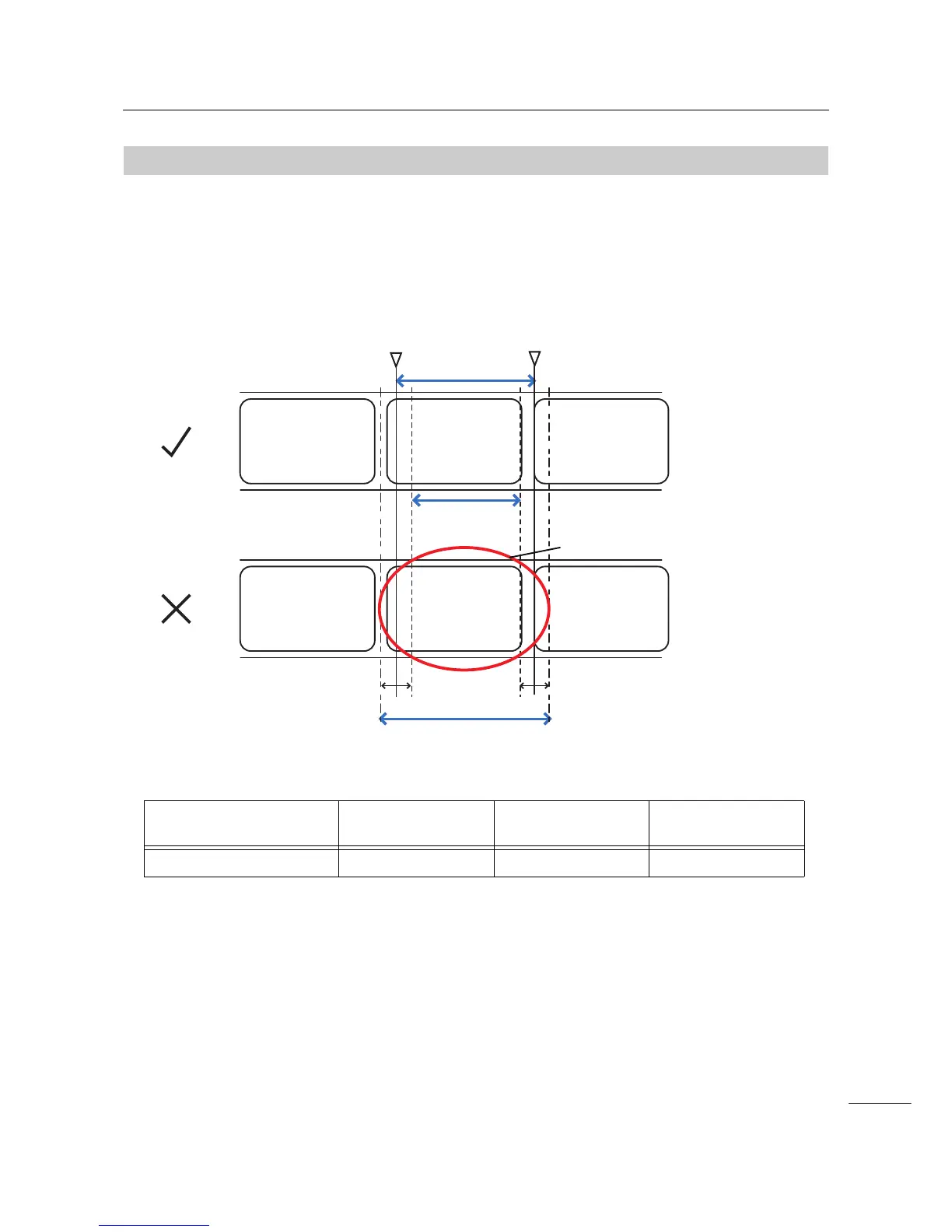

Refer to the figure and table below for the adjustment range of the distance between the print position
and the stop position for options.
Adjustment range of the distance between the print position and the stop position for options:
Types of Options
Adjusted Distance
(Min.)
Initial Distance
Adjusted Distance
(Max.)
Dispenser 7.5 mm (0.3”) 15.0 mm (0.6”) 22.5 mm (0.9”)
Print position
(Initial)
Stop position
for options
(Initial)
+3.75 mm
(+0.15”)
Initial distance
-3.75 mm
(-0.15”)
+3.75 mm
(+0.15”)
-3.75 mm
(-0.15”)
Adjusted distance (Max.)
The range of the adjusted distance includes
the base reference point of two media.
Adjusted distance
(Min.)
