3 Loading the Ribbon and Media
38
S84-ex/S86-ex Operator Manual
3.2 Loading the Ribbon
Use genuine media and ribbons for the printer, for optimum print quality.
CAUTION
• The print head and its surroundings are hot after printing. Be careful not to touch it, to avoid being burned.
• Touching the edge of the print head with your bare hand could cause injury.

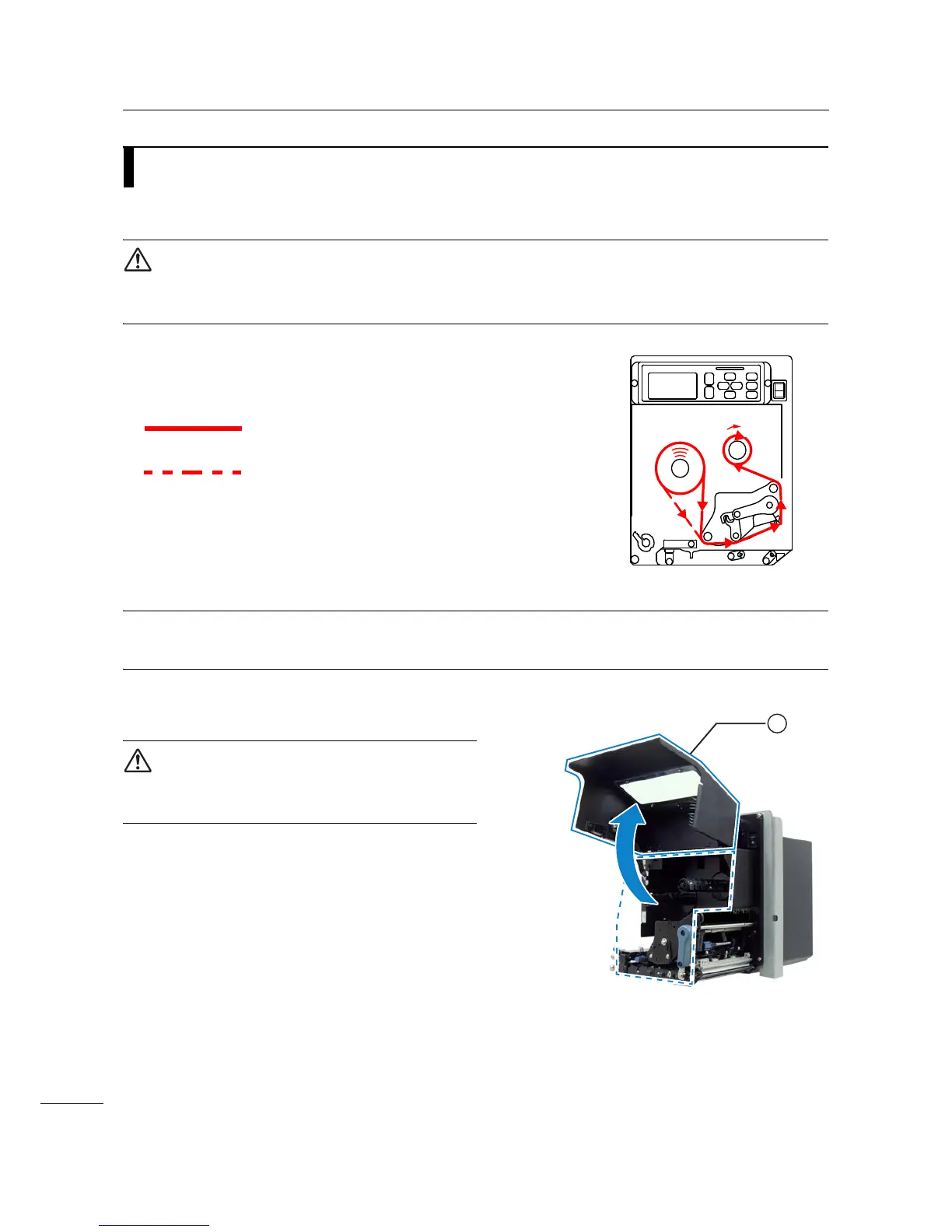

The routing path of the ribbon is shown in the right
picture.
Note
You can also refer to the sticker located on the inner side of the top cover.
1 Open the top cover .
CAUTION
Open the top cover fully to prevent accidental drop of
the cover.
Face-in ribbon
Face-out ribbon
1
