S84-ex/S86-ex Operator Manual
4.1.4 Setting Display

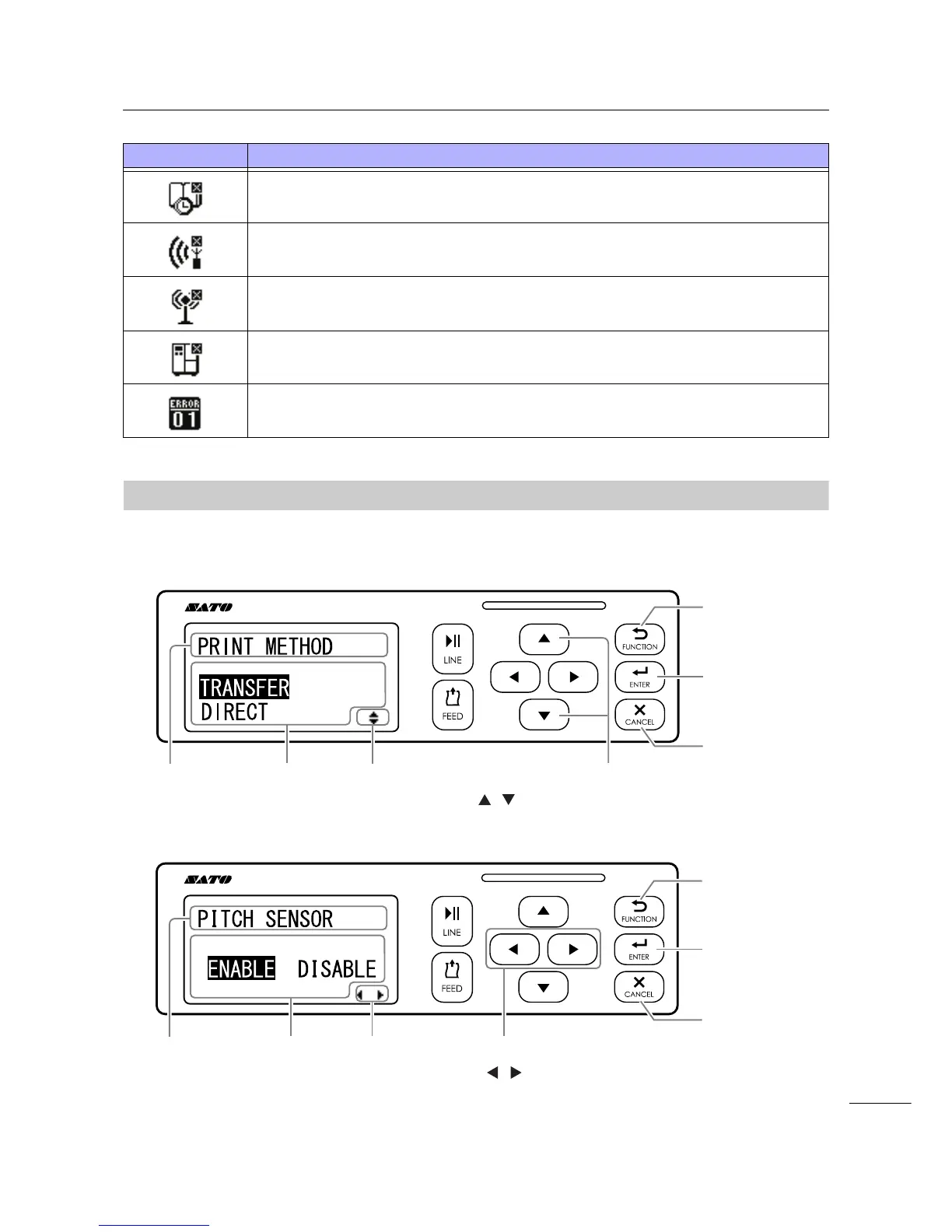

In various setting mode, the setting display is shown as follows. This section also describes the functions
of the buttons in setting mode.
• Selecting an item
Calendar error is detected.
Writing information to the RFID tag failed.
Wireless LAN setting error is detected.
Any printer error other than above is detected.
Error number according to the errors.
Icon Description
Select an item using the
/ buttons.
Returns to the
previous screen
without saving
the setting.
Save the setting
and go to the
next screen.
Goes to the setting
mode menu
without saving the
setting.
Setting contents
display
Setting item
display
Select an item using the
/ buttons.
Valid arrow
buttons display
Valid arrow
buttons display
Setting contents
display
Setting item
display
Returns to the
previous screen
without saving
the setting.
Save the setting
and go to the
next screen.
Goes to the setting
mode menu
without saving the
setting.
