H1 Axial Piston Pump, Size 045/053, Single
Technical Information
General Technical Specications
Shaft Loads
(continued)
Mounting Flange
Loads
All external shaft loads aect bearing life. In applications with external shaft loads,
minimize the impact by positioning the load at 0° or 180° as shown in the gure.
Sauer-Danfoss recommends clamp-type couplings for applications with radial shaft
loads.
Contact your Sauer-Danfoss representative for an evaluation of unit bearing life if you
have continuously applied external loads exceeding 25 % of the maximum allowable
radial load (R
e
) or the pump swashplate is positioned on one side of center all or most of
the time.
Maximum external shaft load based on shaft de ection
Unit Size 045/053
External radial moment – M
e
Nm [lbf•in] TDB [TBD]
T000 174E

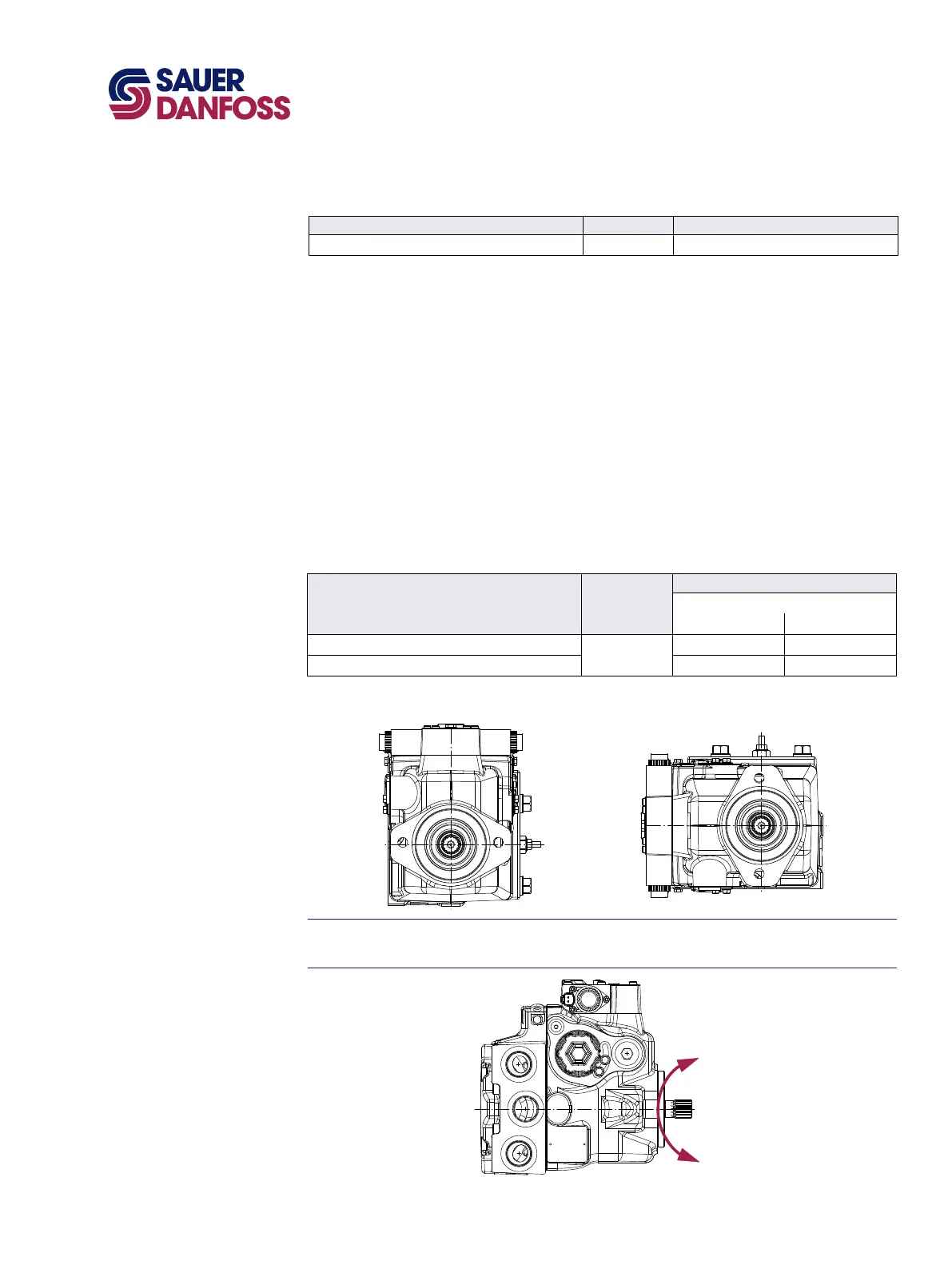

H1 single pump front ange load
The moments shown below apply for control orientation top or side (see table and
gures).j
P301 214
Control on top Control on side
For calculation details refer to H1 Pump Basic Information Manual 11062168, section
Mounting Flange Loads.
Mounting  ange load
Unit
Size 045/053
Control orientation
Control on top Control on side
Rated moment – M
R
Nm [lbf•in]
2020 [17 880] 1300 [11 510]
Shock load moment – M
S
4110 [36 380] 2930 [25 935]
T000 175E
P301 213
M
R
M
S
