Sauer Danfoss H1 - Controls; Electric Displacement Control (EDC), Option A2 (12 V); A3 (24 V); Electric Displacement Control (EDC) with Manual Override, Option A4 (12 V); A5 (24 V)

35
11063344 • Rev EA • Dec 2012
H1 Axial Piston Pump, Size 045/053, Single
Technical Information

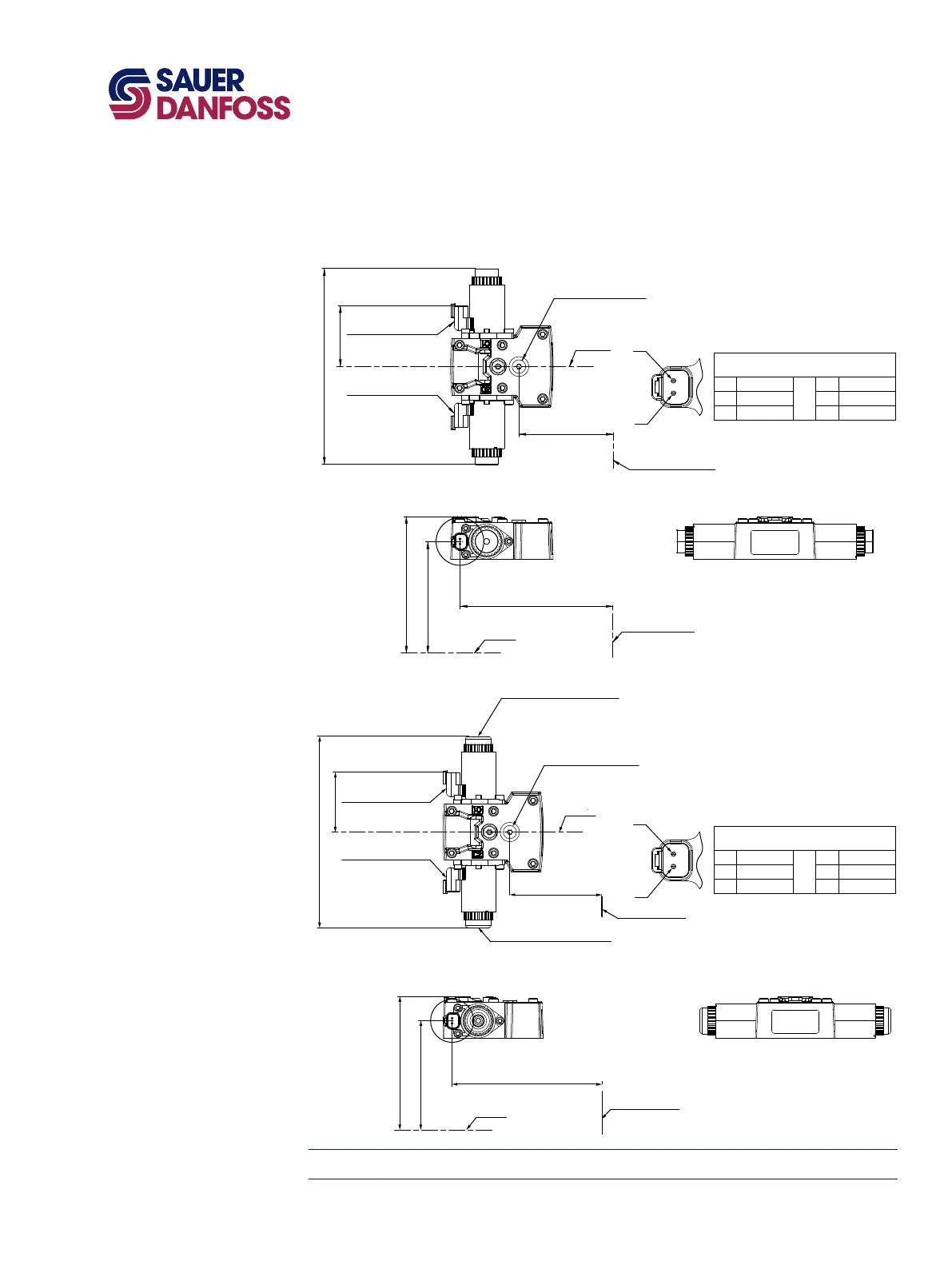

Installation Drawings
Please contact Sauer-Danfoss for specic installation drawings
Controls
Dimensions
(continued)
Electric Displacement Control (EDC),
option A2 (12 V) / A3 (24 V)
Z
Mounting ange
Shaft
2x 64.2 ±0.8
206 ±2.5
Shaft
Mounting ange
Control solenoid
connector "C2"
Deutsch DT04-2P
paint free
Control solenoid
connector "C1"
Deutsch DT04-2P
paint free
Case gauge port "M14"
Port ISO 1926-1 - 7/16-20
∅21 max clearance dia for tting
C
L
C
L
P700 332 58
147.3 ±1.2
120.1 ±1.2
173 ±2.5
58 ±0.8
-45
Electric Displacement Control (EDC) with manual override,
option A4 (12 V) / A5 (24 V)
Z
Mounting ange
Shaft
Control manual override "C2"
Depressing the plunger mechanically
moves the control spool. Actuation
allows full stroke pump response as
per coil and rotation dependent
control logic
Control manual override "C1"
Depressing the plunger mechanically
moves the control spool. Actuation
allows full stroke pump response as
per coil and rotation dependent
control logic
2x 64.2±0.8
206 ±2.5
Shaft
Control solenoid
connector "C2"
Deutsch DT04-2P
paint free
Control solenoid
connector "C1"
Deutsch DT04-2P
paint free
Case gauge port "M14"
Port ISO 1926-1 - 7/16-20
∅21 max clearance dia for tting
C
L
C
L
Mounting ange
P700 33 399
147.3 ±1.2
120.1 ±1.2
173 ±2.5
58
-45
mm
Control solenoid
Connector “C1” & “ C2”
Pin Assignment
OR
Pin Assignment
1 Supply 1 Ground
2 Ground 2 Supply
T301 079
Control solenoid
Connector “C1” & “ C2”
Pin Assignment
OR
Pin Assignment
1 Supply 1 Ground
2 Ground 2 Supply
T301 079
1
2
P301 320
W (2:1)
1
2
P301 320
W (2:1)
