Sauer Danfoss H1 - Option G1, ISO 3019-1, Outer Dia 32 MM-4 (SAE B, 14 Teeth)

23
11063344 • Rev EA • Dec 2012
H1 Axial Piston Pump, Size 045/053, Single
Technical Information
Dimensions

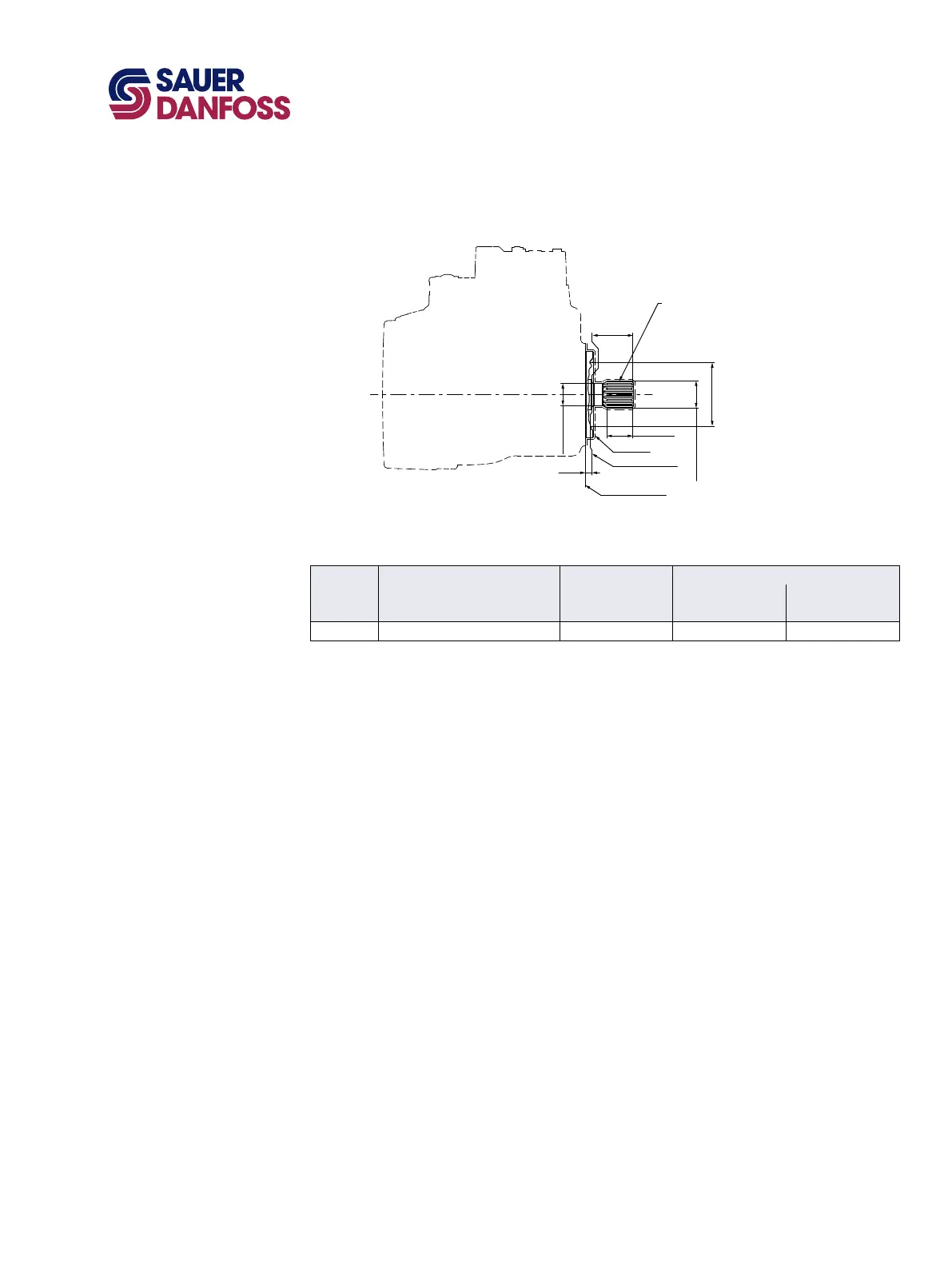

Input Shafts Option G1, ISO 3019-1, outer dia 32 mm-4 (SAE B, 14 teeth)
Speci cations
Option Spline
Min active spline
length
2
Torque rating
1
Rated torque Maximum torque
mm [in] Nm [lbf•in] Nm [lbf•in]
G1 14 teeth, 12/24 pitch 30.6 [1.205] 534 [4720] 592 [5240]
1)
For de nitions of maximum and rated torque values, refer to:
Basic Information Manual 11062168, section Shaft Torque Ratings and Spline Lubrication.
2)
Minimum active spline length for the speci ed torque ratings. T000 182E
Spline data
Number of teeth : 14
Pitch fraction : 12/24
Pressure angle : 30°
Pitch ∅ : ∅29.633
Type of t : llet root side
Per : ANSI B92.1b CLASS 6e
Paint free
∅74.3 Min
Mounting ange
Flange 101-2 (SAE B)
Per ISO 3019-1
8 ±0.8
∅25.72 ±0.12
∅31.58 ±0.09
48 ±0.68
30.6 ±0.15
Mating coupling
Must not protrude
Beyond this point
P700 33 265-45
mm
[in]
