Sauer Danfoss H1 - Suction Filtration, Option L

40
11063344 • Rev EA • Dec 2012
H1 Axial Piston Pump, Size 045/053, Single
Technical Information
Installation Drawings
Please contact Sauer-Danfoss for specic installation drawings
Installation Drawings
(continued)

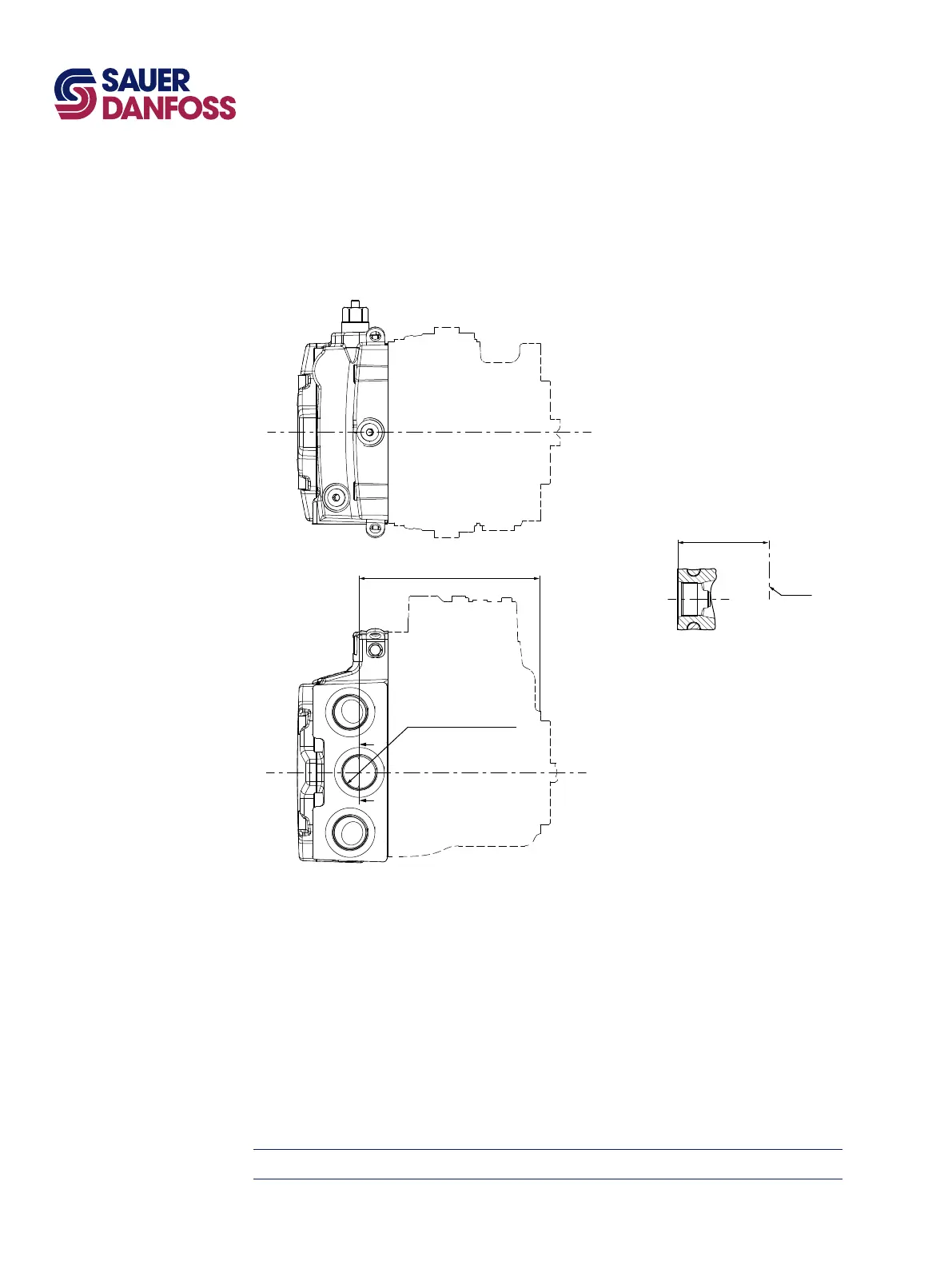

Suction ltration, option L
Filtration
P700 33 466
A-A
Charge inlet port "S"
Port ISO 1926-1 - 1 5/16-12
177.3 ±1.2
89.5 ±0.8
Shaft
C
L
A
A
mm
