H1 Axial Piston Pump, Size 045/053, Single
Technical Information
Installation Drawings
Please contact Sauer-Danfoss for specic installation drawings
Displacement limiters
Dimensions
(continued)

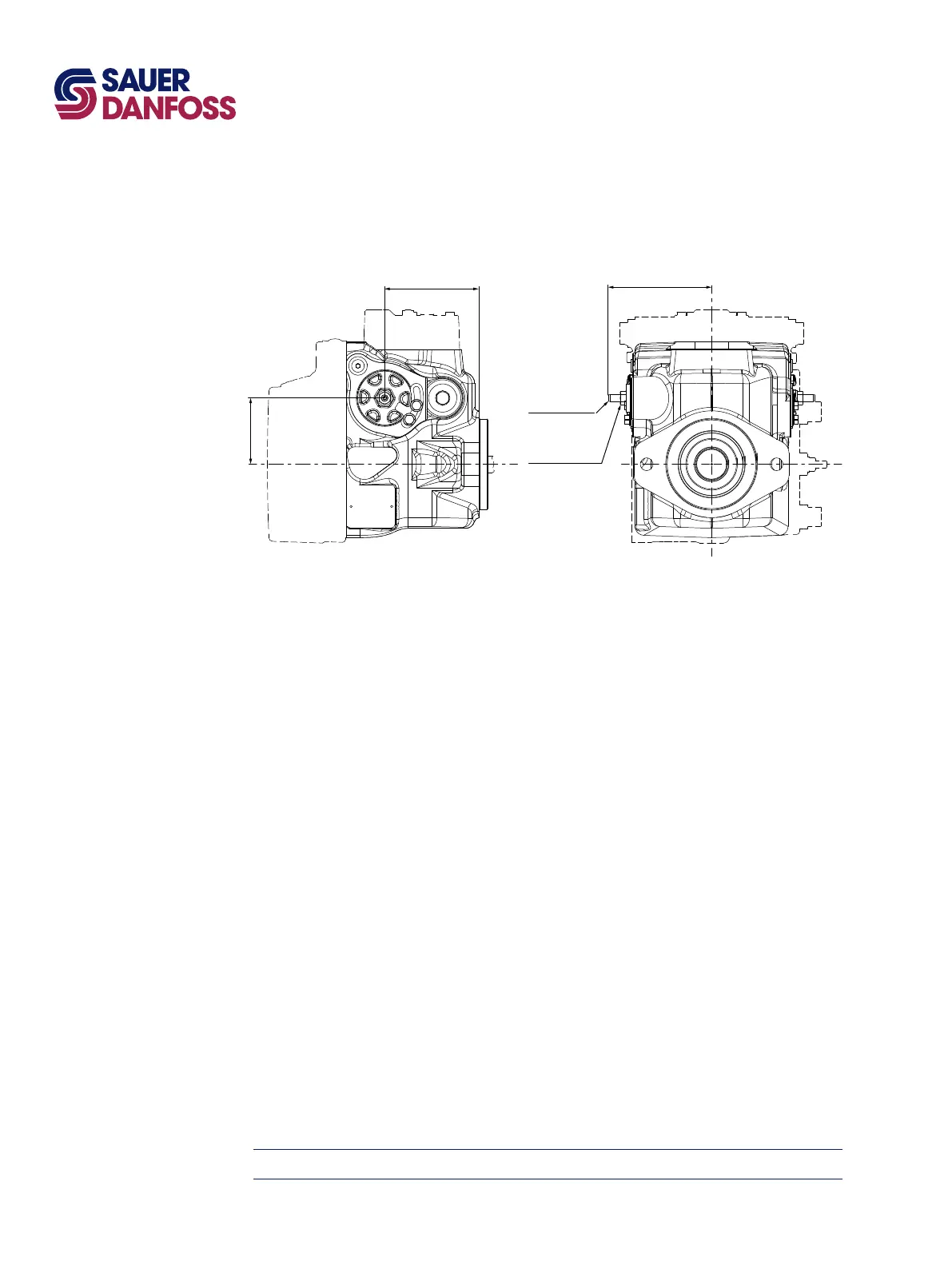

Displacement limiter, option B and D
2x displacement
limiter screw
Wrench size
4 internal hex
2x displacement
limiter seal nut
Wrench size
13 external hex
Torque to 23.0 nm
2x 74.4 ±0.8
2x 106.3 ±0.8
2x (116.1)
P700 33 194
mm
