H1 Axial Piston Pump, Size 045/053, Single
Technical Information
Installation Drawings
Please contact Sauer-Danfoss for specic installation drawings
Controls
Automotive control (AC) with manual override,
option A7 (12 V)/C2 (24 V)

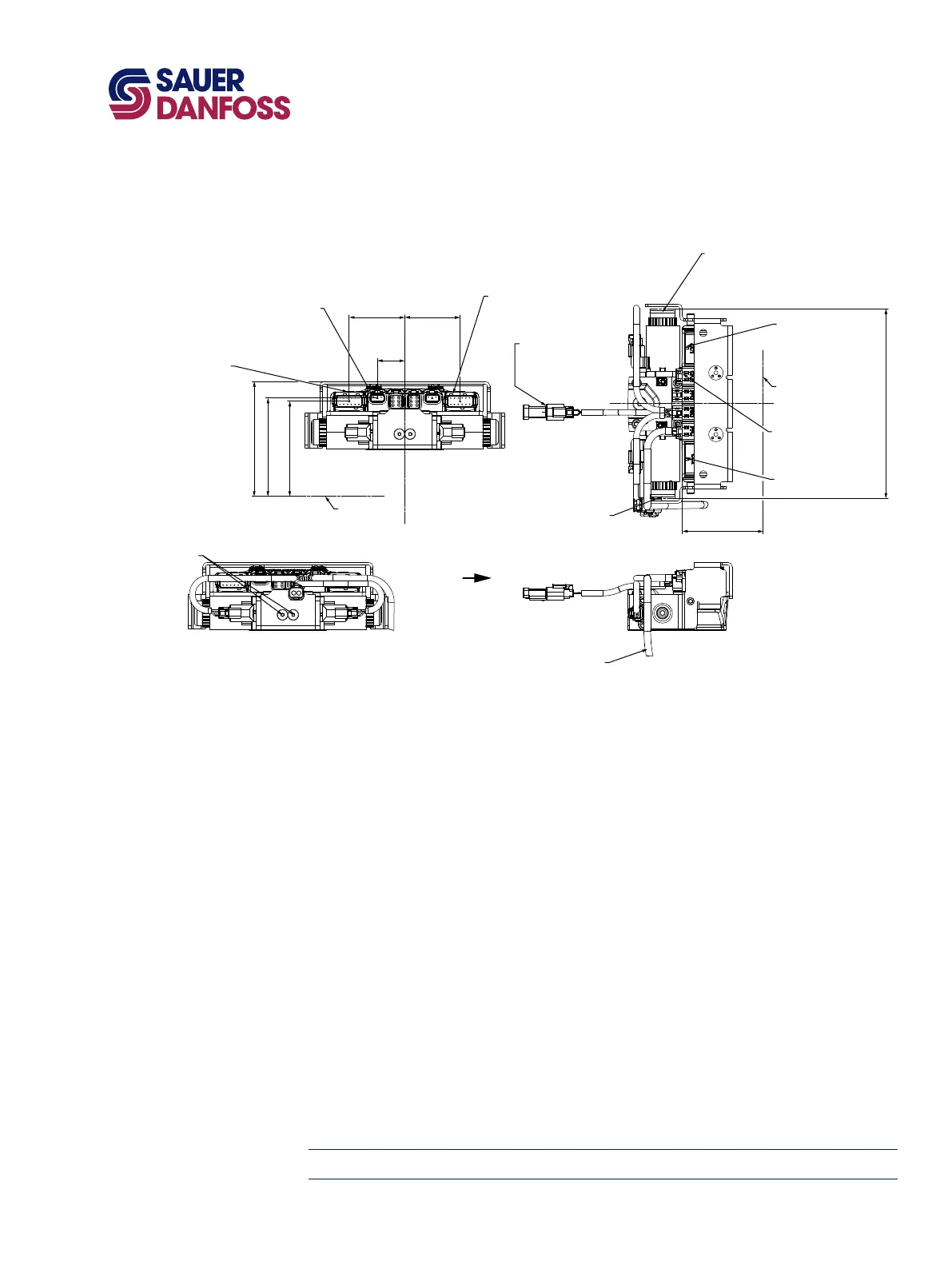

Dimensions
(continued)
mm
Plug removing can cause
contamination issues
61.2 ±0.8 61.2 ±0.8
30.2 ±0.8
Mounting ange
208.9 ±2.5
190.5 ±1.2
2x 187.1 ±1.2
“PPU” wire harness
is factory installed to speed sensor
Control connector ”CC1”
Deutsch DTM04-12P -A-
Paint free
Control manual override ”C1”
Depressing the plunger mechanically
moves the control spool. Actuation
allows full stroke pump response as
per coil and rotation dependent
control logic.
Control manual override ”C2”
Depressing the plunger mechanically
moves the control spool. Actuation
allows full stroke pump response as
per coil and rotation dependent
control logic.
Control connector ”CC1”
Deutsch DTM04-12P -A-
Paint free
Control connector ”CAN”
Deutsch DTM04-3P
Paint free
For using the connector
the plug may be removed
Control connector ”CAN”
Deutsch DTM04-3P
Paint free
For using the connector
the plug may be removed
Control connector ”CC2”
Deutsch DTM04-12P -B-
Paint free
Control connector ”CC2”
Deutsch DTM04-12P -B-
Paint free
V
209 max
89.2 ±0.8
Control connector ”CCC3”
Deutsch DT06-2S
Paint free
For using the connector
the plug may be removed
V
P700 52 604
Shaft L
C
