H1 Axial Piston Pump, Size 045/053, Single
Technical Information
Installation Drawings
Please contact Sauer-Danfoss for specic installation drawings
Installation Drawings
(continued)

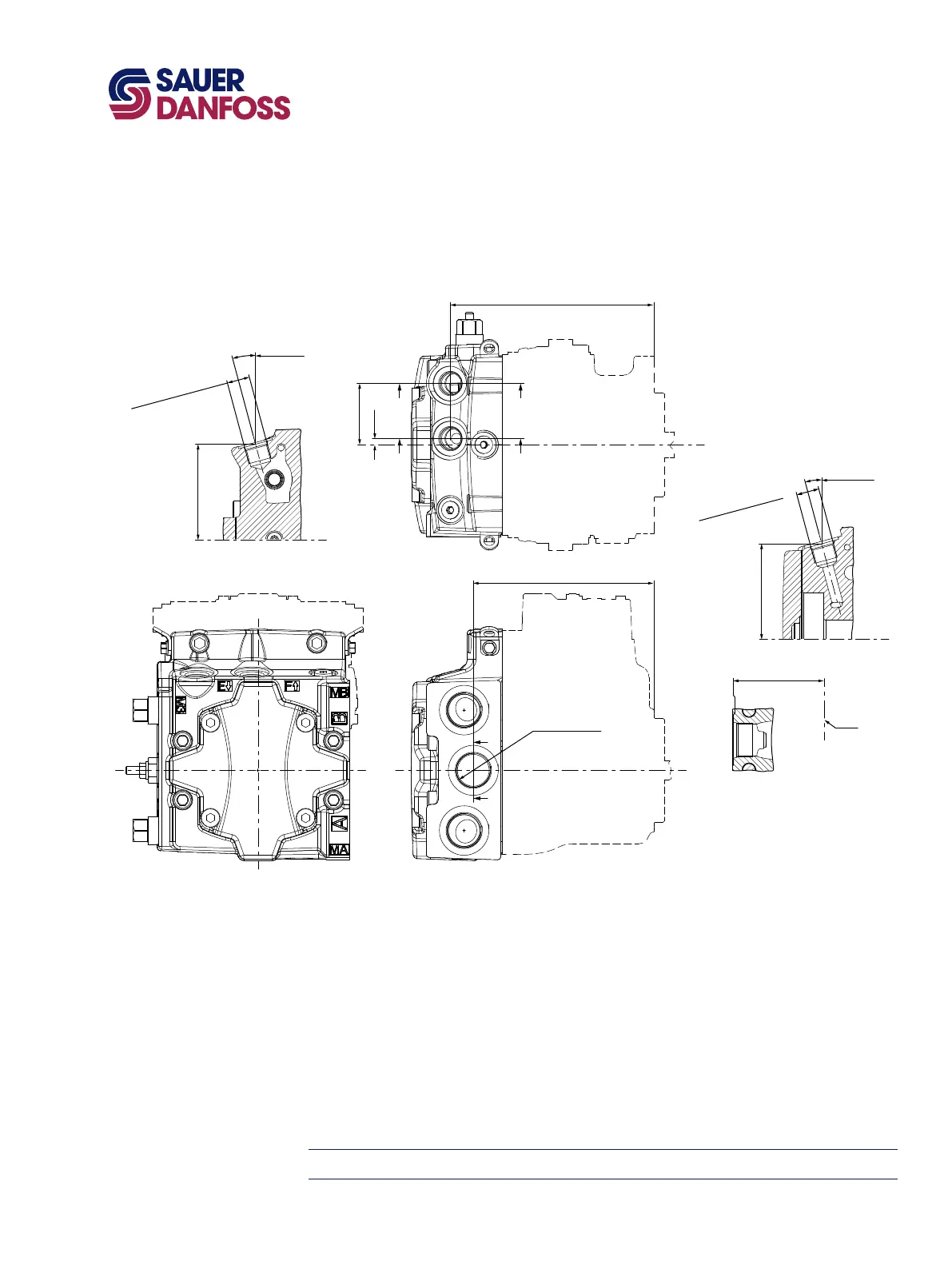

Remote full ow charge pressure ltration, option P for end cap option F
Filtration
A A
B B
C
C
C
L
6 ±0.5
60 ±0.8
199.8 ±1.2
177.3 ±1.2
89.5 ±0.8
Shaft
Charge inlet port "S"
Port ISO 11926-1 - 1 5/16-12
93.5 ±0.8
Charge ltration port "E"
Port ISO 11926-1 - 7/8-14
From lter
(199.8)
15°
Charge ltration port "F"
Port ISO 11926-1 - 7/8-14
To lter
(199.8)
93.5 ±0.8
15°
P700 33 360
mm
