H1 Axial Piston Pump, Size 045/053, Single
Technical Information
Installation Drawings
Please contact Sauer-Danfoss for specic installation drawings
Installation Drawings
(continued)

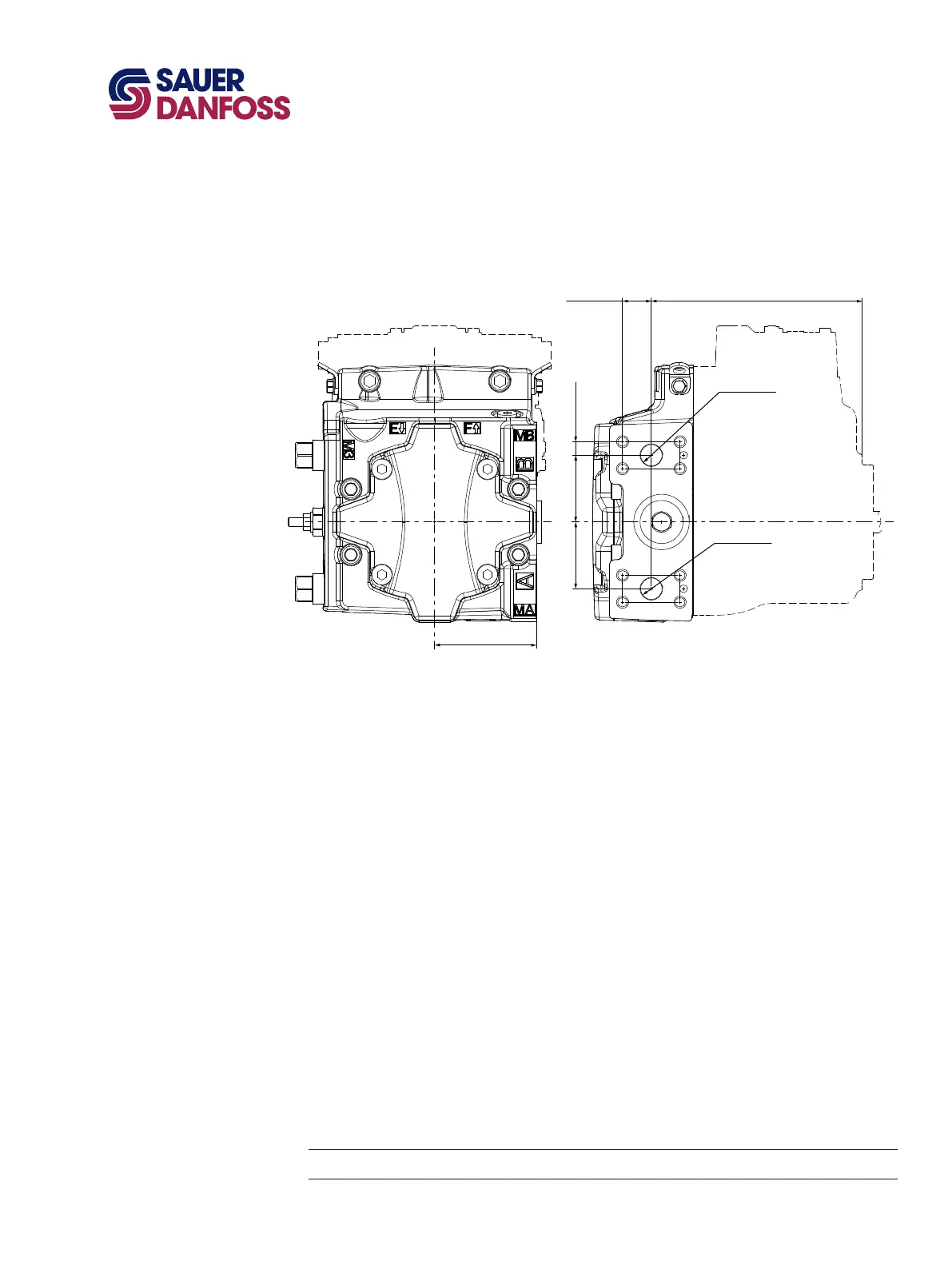

Endcap
Twin port, code 62 metric 4 bold FLG, option D6, D8, F2, and F3
mm
186.32 ±1.2
59 ±0.859 ±0.8
4x 25.4 ±0.25
2x 11.9 ±0.25
System port "B"
∅19-450 bar
Split ange boss
Per ISO 6162
M10x1.5
18 full thread depth
System port "A"
∅19-450 bar
Split ange boss
Per ISO 6162
M10x1.5
18 full thread depth
90 ±0.8
System ports "A" &"B"
P700 33 203
