Sauer Danfoss H1 - Auxiliary Mounting Pads; Option H2, ISO 3019-1, Flange 82-2 (SAE A, 9 Teeth)

25
11063344 • Rev EA • Dec 2012
H1 Axial Piston Pump, Size 045/053, Single
Technical Information

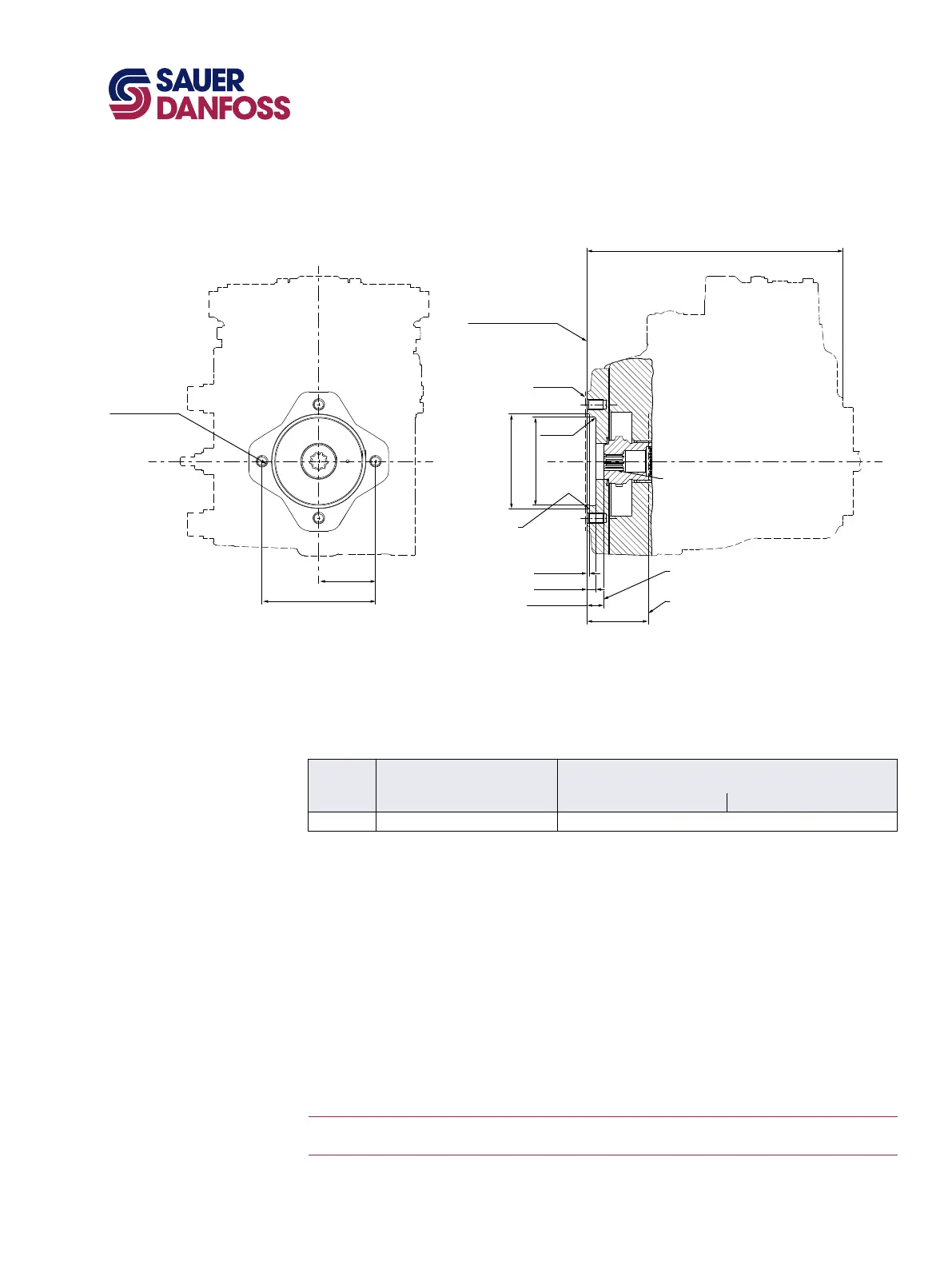

Dimensions
Option H2, ISO 3019-1, ange 82-2 (SAE A, 9 teeth)
Speci cations
Option Spline
Torque rating
1
maximum torque
Nm [lbf•in]
H2 9 teeth, 16/32 pitch 162 [1430]
1)
For de nitions of maximum torque values, refer to:
Basic Information Manual 11062168, section Shaft Torque Ratings and Spline Lubrication.
T000 150E
Paint free
4x M10 x1.5-6H THD
15 min THD depth
2x 106.4 ±0.35
2x 53.2 ±0.175
Auxiliary mounting pad
For mating ange 82-2
Per ISO 3019-1 (SAE A)
1.956 ±0.076
8.1 ±0.25
Mating shaft shoulder must
Not protrude beyond this point
Mating shaft must not
Protrude beyond this point
R0.8 max
∅82.601
+0.076 0
∅88.621
+0.13 0
O-ring seal required
Ref ∅82.22 ID x 2.62 cross section
P700 33 318-45
14.5 MIN
Shaft clearance
57.2 MIN
Shaft clearance
Spline data
Number of teeth : 9
pitch fraction : 16/32
Pressure angle : 30°
Pitch ∅ : ∅14.288
Type of t : llet root side
Per :
ANSI B92.1b CLASS 7e
239.6
±2.5
C Caution
Standard pad cover is installed only to retain coupling during shipping. Do not operate
pump without an auxiliary pump or running cover installed.
Auxiliary Mounting Pads
mm
[in]
