Sauer Danfoss H1 - Forward-Neutral-Reverse (FNR) with Manual Override, Option A9 (12 V) B1 (24 V); Non Feedback Proportional Electric Control (NFPE) with Manual Override, Option A8 (12 V) B8 (24 V)

36
11063344 • Rev EA • Dec 2012
H1 Axial Piston Pump, Size 045/053, Single
Technical Information
Installation Drawings
Please contact Sauer-Danfoss for specic installation drawings
Controls
Dimensions
(continued)

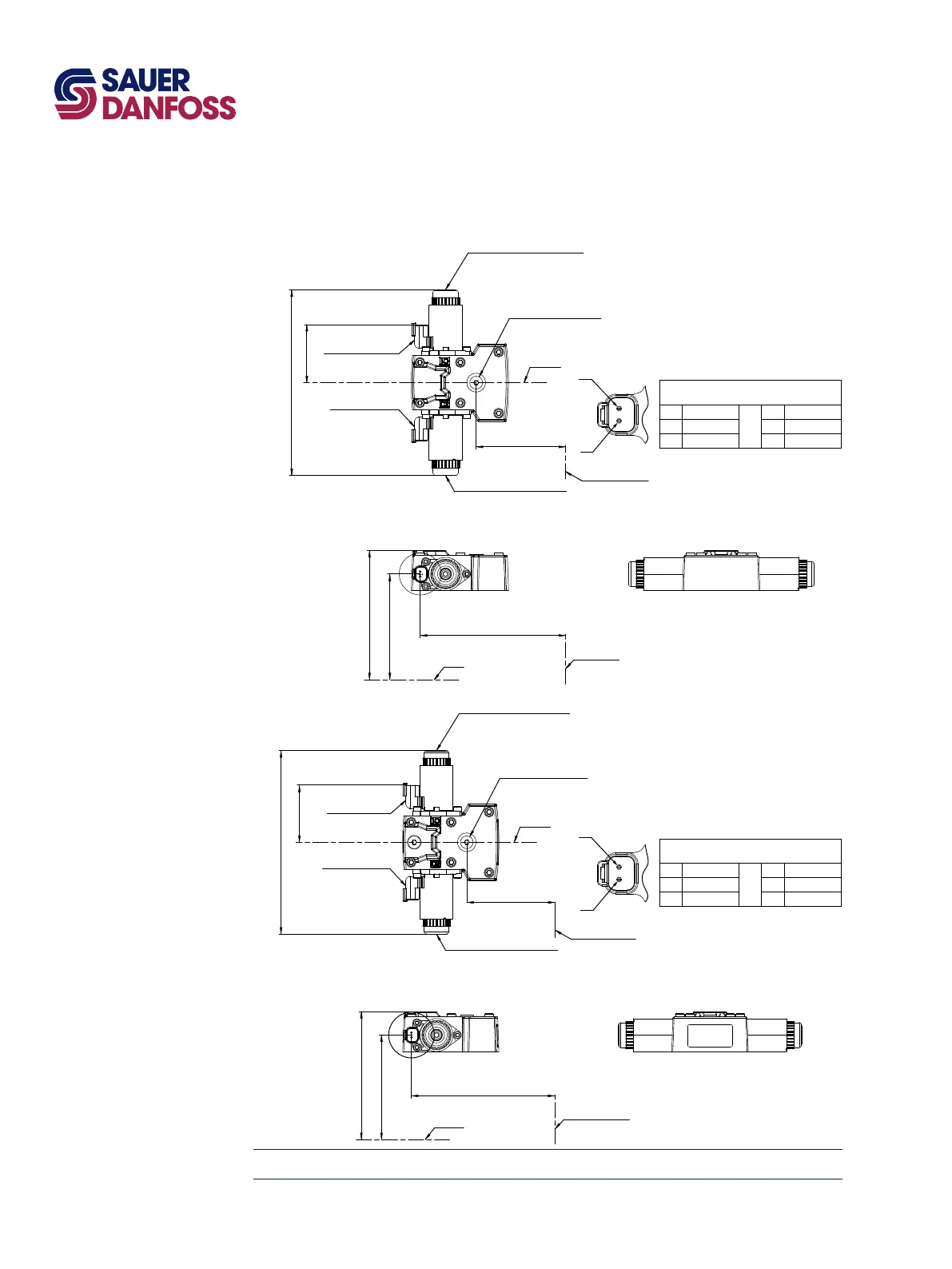

Forward-Neutral-Reverse (FNR) with manual override,
option A9 (12 V) B1 (24 V)
Mounting ange
Control manual overrid "C2"
Depressing the plunger mechanically
moves the control spool. Actuation
allows full stroke pump response as
per coil and rotation dependent
control logic
Control manual override "C1"
Depressing the plunger mechanically
moves the control spool. Actuation
allows full stroke pump response as
per coil and rotation dependent
control logic
Mounting ange
Shaft
2x 64.2 ±0.8
206 ±2.5
Shaft
Control solenoid
connector "C2"
Deutsch DT04-2P
paint free
Control solenoid
connector "C1"
Deutsch DT04-2P
paint free
Case gauge port "M14"
Port ISO 1926-1 - 7/16-20
∅21 max clearance dia for tting
Z
C
L
C
L
P700 33 401
58 ±0.8
147.3 ±1.2
120.1 ±1.2
173 ±2.5
-45
Non Feedback Proportional Electric Control (NFPE) with manual override,
option A8 (12 V) B8 (24V)
Control manual override "C2"
Depressing the plunger mechanically
moves the control spool. Actuation
allows full stroke pump response as
per coil and rotation dependent
control logic
Control manual override "C1"
Depressing the plunger mechanically
moves the control spool. Actuation
allows full stroke pump response as
per coil and rotation dependent
control logic
Mounting ange
Shaft
2x 64.2 ±0.8
206 ±2.5
Shaft
Control solenoid
connector "C1"
Deutsch DT04-2P
paint free
Control solenoid
connector "C1"
Deutsch DT04-2P
paint free
Case gauge port "M14"
Port ISO 1926-1 - 7/16-20
∅21 max clearance dia for tting
Z
C
L
C
L
Mounting ange
P700 33 400
147.3 ±1.2
120.1 ±1.2
173 ±2.5
58
-45
mm
Control solenoid
Connector “C1” & “ C2”
Pin Assignment
OR
Pin Assignment
1 Supply 1 Ground
2 Ground 2 Supply
T301 079
Control solenoid
Connector “C1” & “ C2”
Pin Assignment
OR
Pin Assignment
1 Supply 1 Ground
2 Ground 2 Supply
T301 079
1
2
P301 320
W (2:1)
1
2
P301 320
W (2:1)
