H1 Axial Piston Pump, Size 045/053, Single
Technical Information

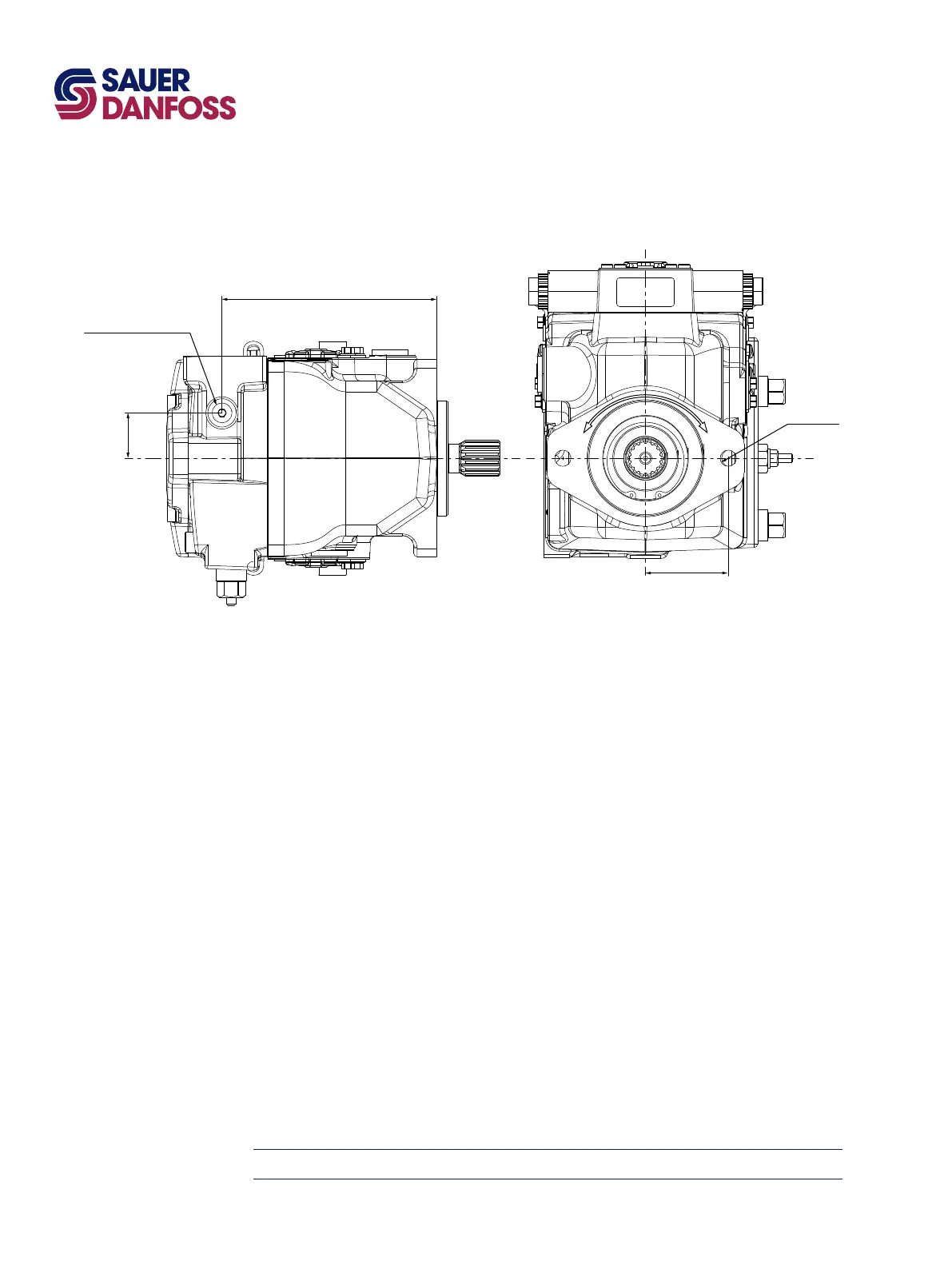

Installation Drawings
Please contact Sauer-Danfoss for specic installation drawings
Dimensions
(continued)
2x 73 ±0.25
2x ∅14.3
+0.25
-0.13
189.3 ±1.2
40 ±0.8
System A gauge port "MA"
Port ISO 11926-1 - 9/16-18
X
P700 33 051-1-3
CCW CW
mm
