H1 Axial Piston Pump, Size 045/053, Single
Technical Information

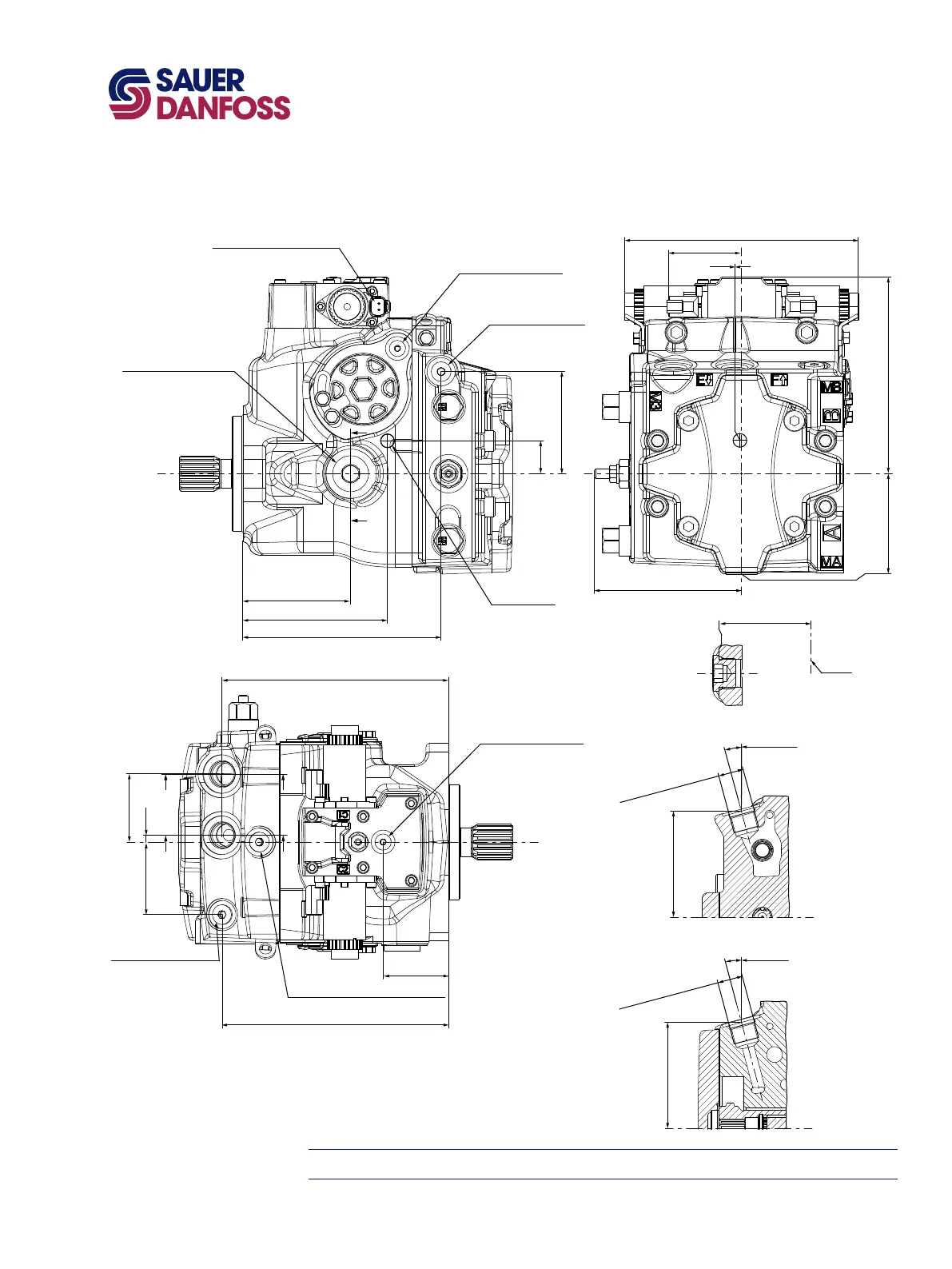

Installation Drawings
Please contact Sauer-Danfoss for specic installation drawings
Dimensions
(continued)
(1)
Case drain port "L2"
Port ISO 11926-1 - 1 1/16-12
Servo gauge port "M5"
Port ISO 11926-1 - 7/16-20
∅24.5 max clearance dia for tting
Control solenoid connector "C1"
Deutsch DT04-2P
Paint free
See view W for pin out
2x 64.2 ±0.8
(128)
(29)
Approximate
center of gravity
173.3 ±2.588.5 ±1.5
(129.7)
81.5 ±0.8
Shaft
Charge gauge port "M3"
Port ISO 11926-1 - 9/16-18
95.1 ±0.8
174.8 ±1.2
90 ±0.8
206 ±2.5
58 ±0.8
200 ±1.2
64 ±0.8
Case gauge port "M14"
Port ISO 11926-1 - 7/16-20
∅21 max clearance dia for tting
System B gauge port "MB"
Port ISO 11926-1 - 9/16-18
Alternate charge pressure port ("AM3")
port ISO 11926-1 - 9/16-18
199.8 ±1.2
6 ±0.5
60 ±0.8
93.5 ±0.8
Charge ltration port "F"
Port ISO 11926-1 - 7/8-14
To lter
15°
(199.8)
93.5 ±0.8
Charge ltration port "E"
Port ISO 11926-1 - 7/8-14
From lter
15°
(199.8)
F-F
E-E
Y
F F
E E
D
D
C
L
Z
D-D
P700 33 051-2-3
Twin port, ORB, remote lter
mm
