nova250 Touch Panel
Overview
6 7001064003 T1 Sauter Systems
1.3 Connections

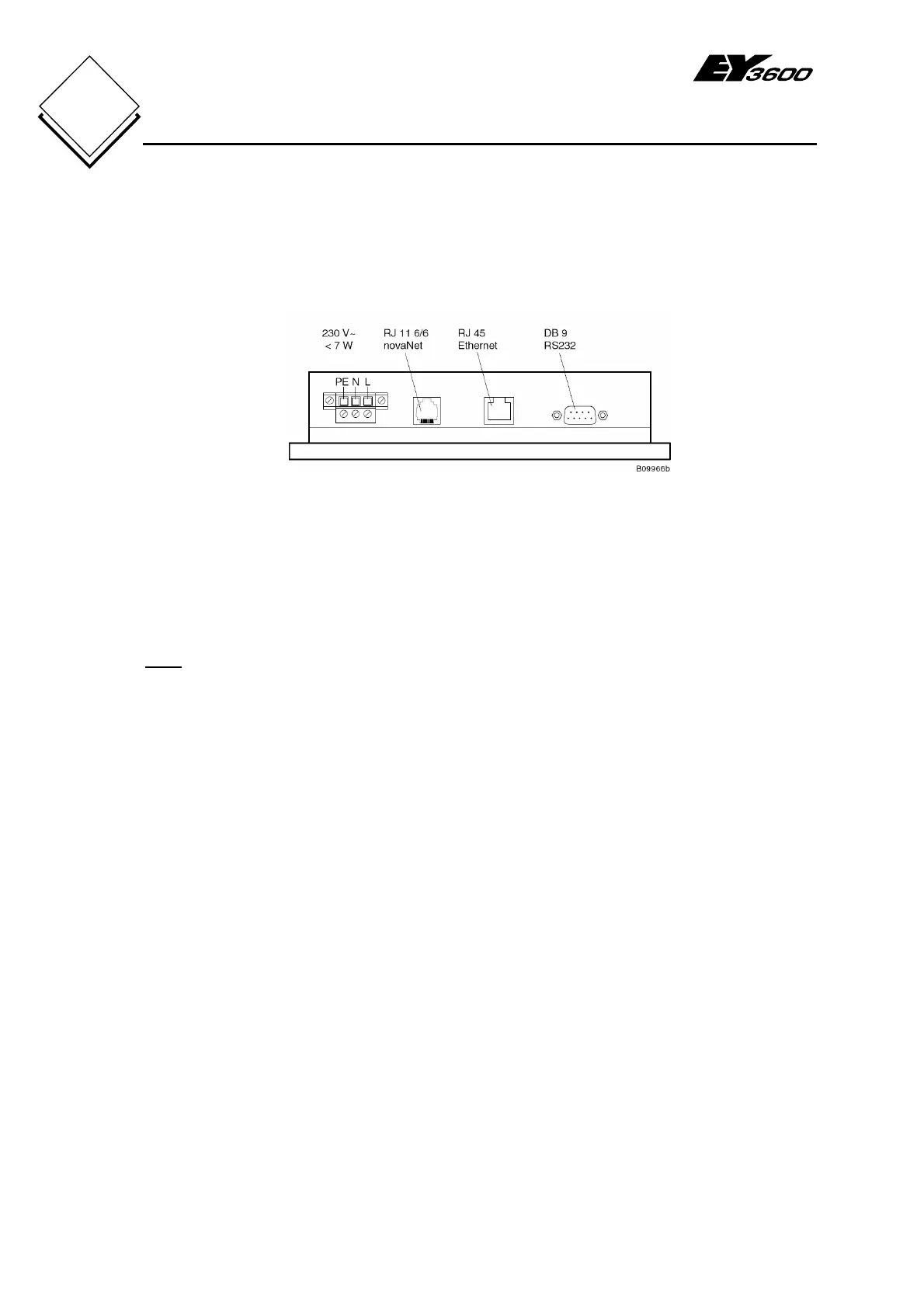

Fig. 1-2 shows all the connections. The touch-panel must be connected to a power
supply (230 V~ or 115 V~) with an earth protection wire and to the EY3600 novaNet
system bus (RJ-11).
Fig. 1-2: Connections
As the power supply is permanently installed and is not in the low-voltage range, the
installation must be carried out by a trained specialist (technician, electrician or installer).
The other connections such as the RJ-45 connection for Ethernet and the DB-9 interface
(RS232) are used only for any application downloads and firmware updates that may be
needed.
Note
You must select the correct cable for the novaNet connection in accordance with the
EY3600 specifications, in order to prevent interference on the data line.
