CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL
- 37 -

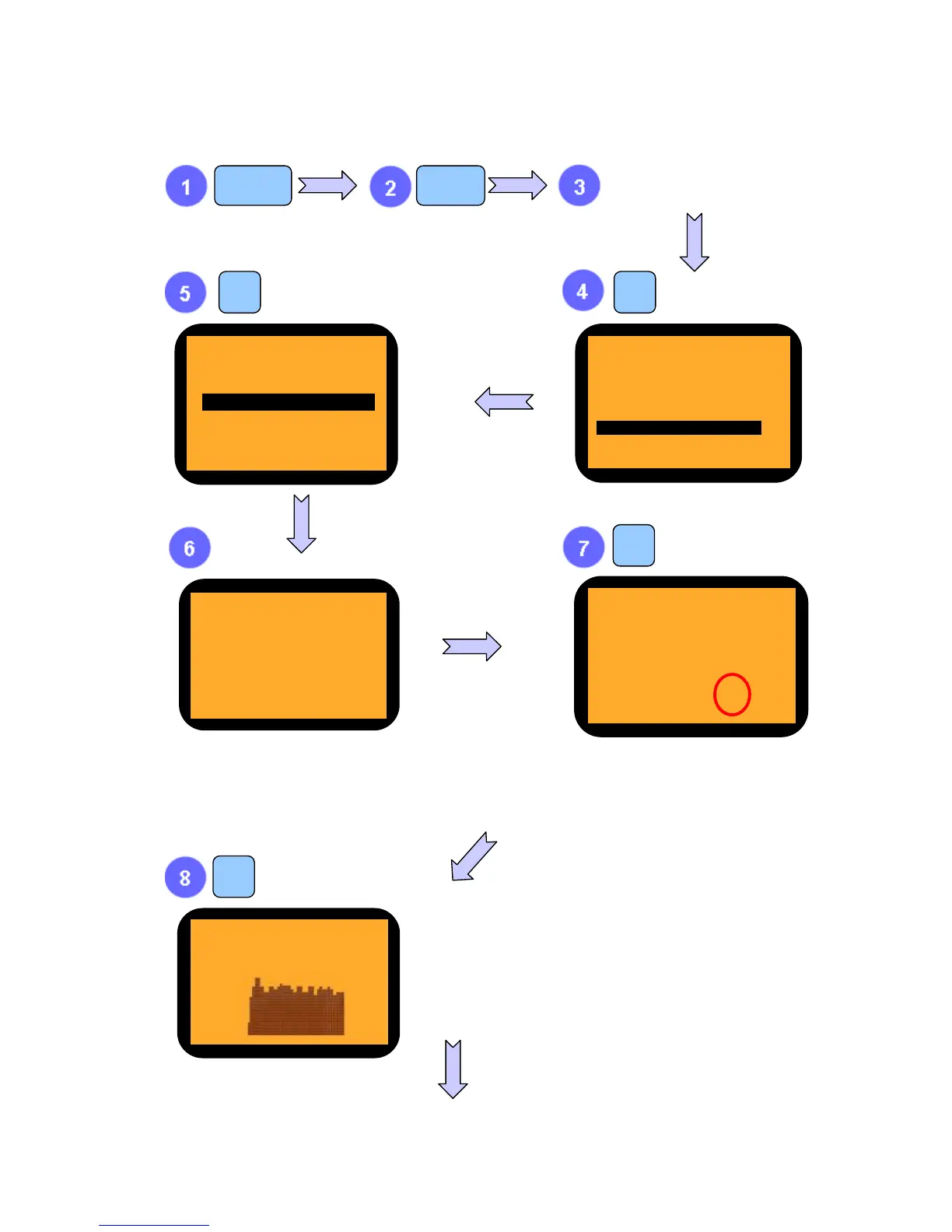

Wait.
Check if the result is ‘OK’ If ‘▼’ is
pressed, shading value is displayed.
To skip, press ‘9’.
▼
▼
This shows WHITE LEVEL.
If ‘▼’ pressed, BLACK LEVEL is displayed.
IR SHADING
WAIT . . ABOUT 5 SEC
IR SHADING
MIN MAX AVG UNI
W : 457 560 513 89
B : 24 24 24 100
WHITE : OK
BLACK : OK
WHITE
500 -
MODE
CODE [ ***** ]
6 3
9 MENU
SERVICE MENU1
1. ERROR STOP CTRL.
2 .SENSOR LEVEL
3. SYSTEM REPORT
4. SET A/S CALL No.
5. SET MACHINE S/N
6. SHADING_______________
7. SENSOR SELECT
SHADING
1. UV SHADING
2. MR SHADING
3. IR SHADING (WHITE) ___
4. IR SHADING (DARK)
