SBS 600 - Current Measurement (mA, µA); mA, µA Measurement Procedure

19

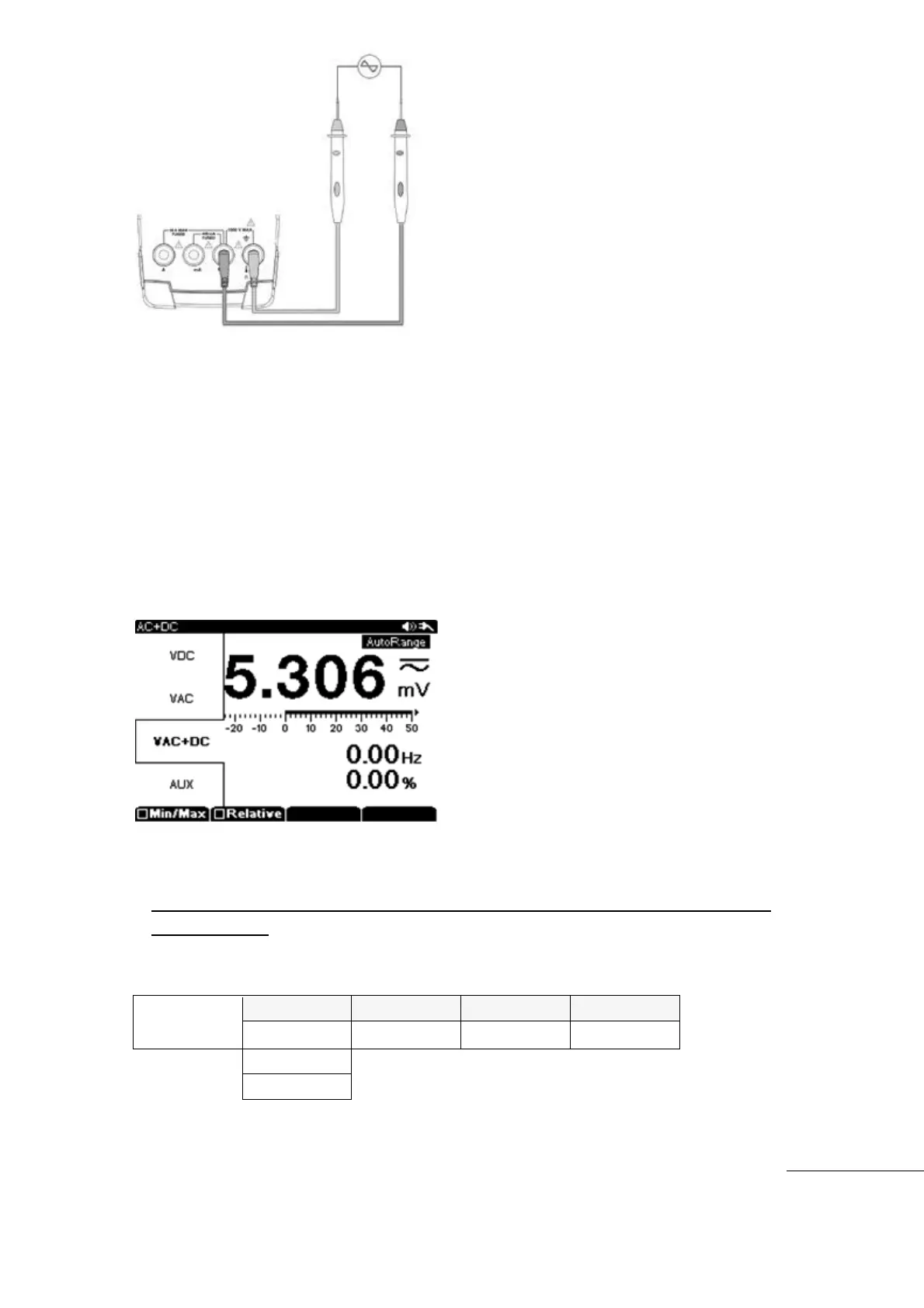

[AC+DC Voltage]
 Measurement Range can be selected for Auto Range or Manual Range.
 Auto Ranging Scales: : 5V, 50V, 500V, 600V (4 ranges)
 Manual Ranging Scales: : 50㎷
, 500㎷, 5V, 50V, 500V, 600V (6 ranges)
 The measured Voltage value is displayed on the main display with polarity indication.
 Bar
-Graph changes depending on the level of the value from the “0” point.
 The Sub Menu allows for: Min/Max, Relative, measurements.
 Current Measurement (㎃, ㎂) (500 milli-AMP MAXIMUM inline current
measurement)
Current measurements must be done with the circuit open and the meter connected in
series as part of the circuit.
㎃, ㎂
F1
F2
F3
F4
Min/Max
▣Relative
▣㏈m
DC
Peak
OFF
