Page 17
Art. no.: 2.511076 Rev.: g
Introduction 2
User Guide Main Components of the Device 2.5
BR-102 plus / BR-102 plus PWA

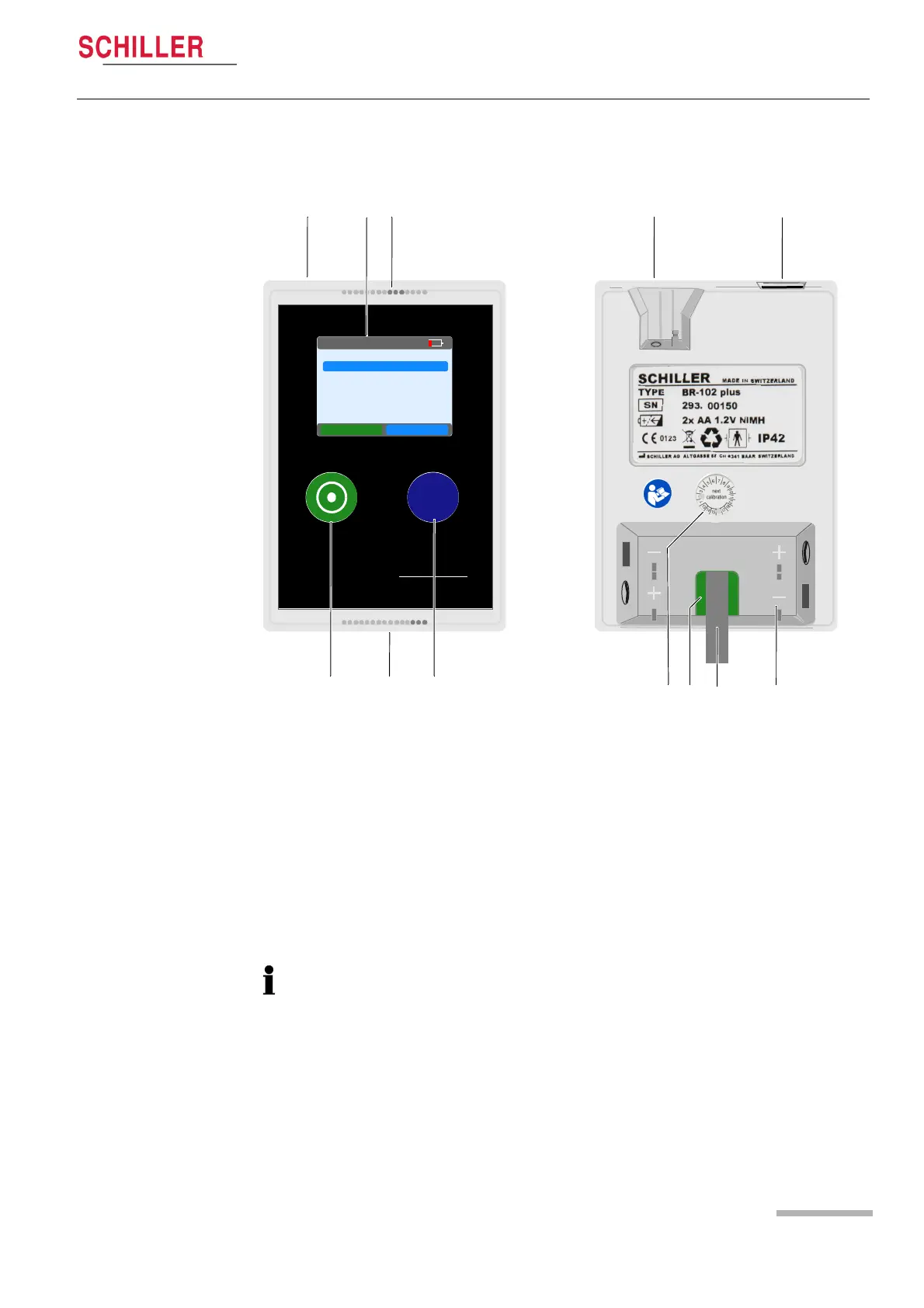

2.5 Main Components of the Device
(a) USB cable connection
(b) OLED display
(c) Loudspeaker
(d) Microphone connector jack plug and patient cuff connection re-
cess
(e) USB connector
(f) Battery recess (battery cover removed)
(g) Battery removal ribbon
(h) Micro SD card recess (under battery removal ribbon)
(i) Calibration label
(j) Programming function key
(k) Microphone for recording patient identification
(l) Programming function key and ON/OFF key
NEW RECORD
LAST RECORD
SINGLE MEAS.
SYSTEM
NEXT OK
05:16PM
SCHILLER
BR-102plus
cba
ljk
d
e
g fi h
The micro SD memory card is for service only and is used for software
updates or storage of raw data for test purposes.
