Schiller BR-102 PLUS - Single Measurement

Page 33
Art. no.: 2.511076 Rev.: g
BP recording 3
User Guide Single Measurement 3.3
BR-102 plus / BR-102 plus PWA

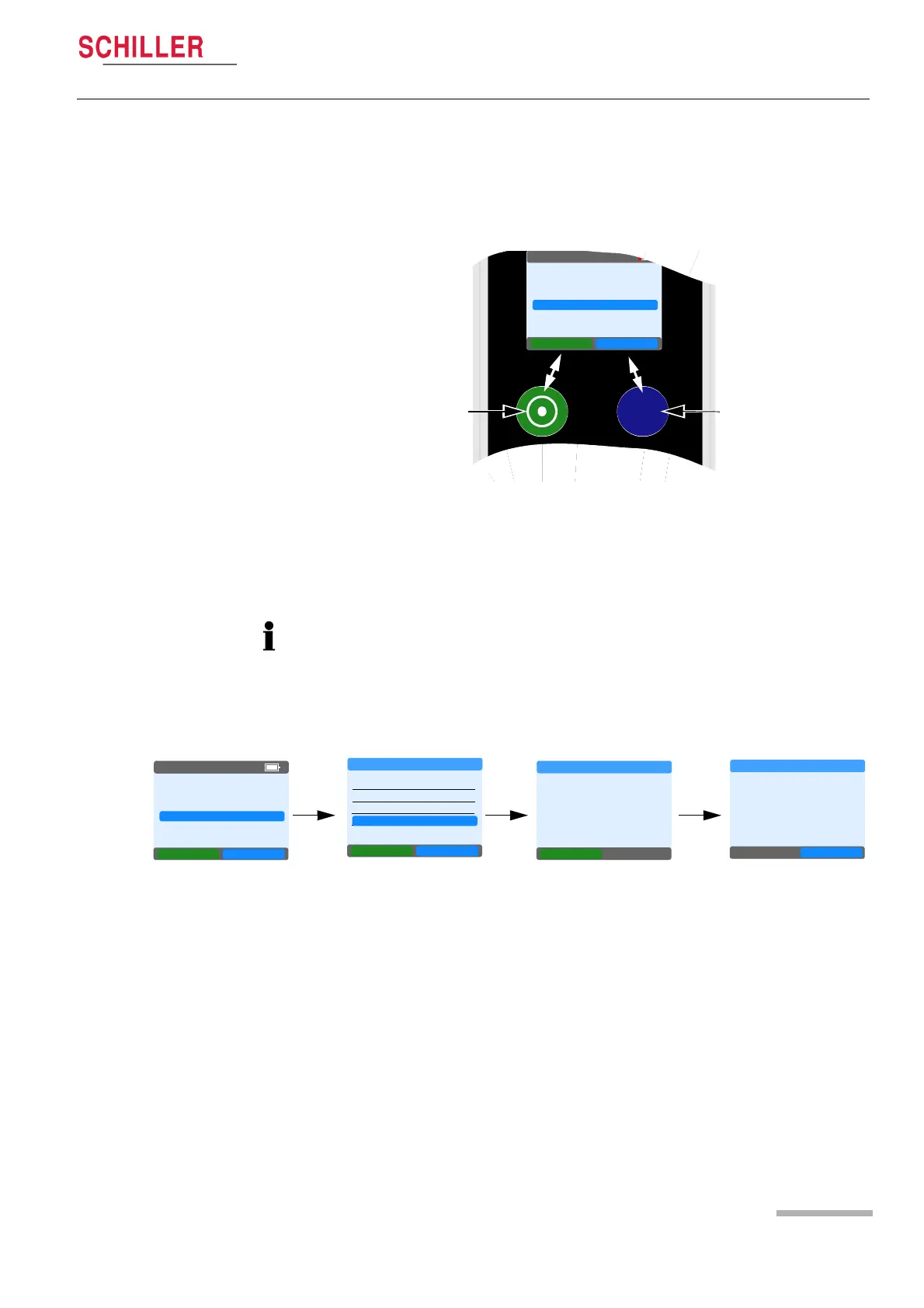

3.3 Single Measurement
1. Apply the cuff as previously described.
2. Select Single measurement from the main menu:
3. Using the buttons on the recorder, select:
– Patient Group - Adult / child
– Deflation Speed - 2 to 9 mmHg in 1 mmHg steps, or Auto.
– Pulse beep - on or off. The recorder gives an audible beep with
the detected heart rate.
4. Select START
5. The cuff pressure is displayed when the measurement is being
taken.
6. On completion the single measurement is displayed with the
following information:
• Date and time of the measurement
• Recording method used:
– KOR = Auscultatoric (Korotkoff/Riva-Rocci)
– OSC = Oscillometric
• Measurement:
– SYS = Systolic Pressure
[mmHg]
– DIA = Diastolic Pressure [mmHg]
– MAP =Mean Arterial Pressure (MAP) in mmHg.
– Pulse = Pulse rate [bpm] (beats per minute)
NEW RECORD
LAST RECORD
SINGLE MEAS.
SYSTEM
NEXT OK
05:16PM
SCHILLER
Right
Blue
Key
Left
Green
Key
When auto setting is defined, the deflation rate is set for the detected
heart rate at 3 mmHg per heart beat. The heart rate is ascertained
when the cuff is inflating.
NEW RECORD
LAST RECORD
SINGLE MEAS.
SYSTEM
NEXT OK
05:16PM
NEXT OK
SINGLE MEAS.
PatGrp ADULT
DefSpd 5 mmHg/s
PulseBeep ON
START
BACK
BREAK
SINGLE MEAS.
Cuff pressure
173
mmHg
SINGLE MEAS.
12.05.2013 10:19
KOR
SYS 128 99 mmHg
mmHg
DIA 86 71 bpm
OK
PULSE
MAP
